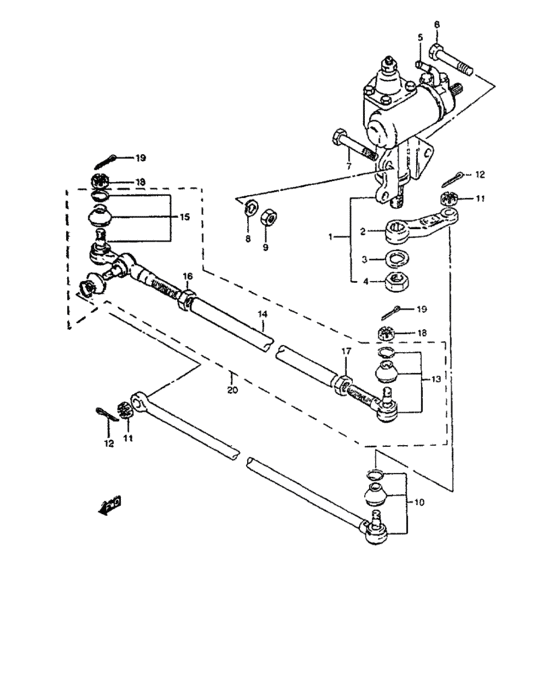

Steering link (W/POWER STEERING) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600-70A50-000
BOX ASSY,POWER STRG GEAR,L
|
48600-70A50-000 |
— | ||
|
2
|
2
48671-81A70-000 ARM,PITMAN |
48671-81A70-000 |
US $53.93 |
||
|
3
|
3
08321-21208-000
Washer,lock 20m
|
08321-21208-000 |
— | ||
| replacement | |||||
|
3
|
3
48644-80010-000 WASHER,PITMAN ARM LOCK |
48644-80010-000 |
from US $1.92 |
||
|
4
|
4
48674-63240-000 NUT |
48674-63240-000 |
from US $3.98 |
||
|
5
|
5
48691-56B71-000 RETURN TUBE |
48691-56B71-000 |
US $24.91 |
||
|
6
|
6
01107-12706-000
Bolt
|
01107-12706-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-1270A-000 Bolt |
01500-1270A-000 |
US $1.60 |
||
|
7
|
7
09103-12048-000 BOLT(12X90) |
09103-12048-000 |
from US $4.52 |
||
|
8
|
8
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
9
|
9
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
10
|
10
48900-84C50-000
Rod assy, steering drug
|
48900-84C50-000 |
— | ||
|
11
|
11
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
11
|
11
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.99 |
||
|
12
|
12
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
12
|
12
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.59 |
||
|
13
|
13
48810-85C00-000
End, tie rod lh
|
48810-85C00-000 |
— | ||
|
14
|
14
48843-84C50-000
Connector, tie rod end
|
48843-84C50-000 |
— | ||
|
15
|
15
48870-84C50-000
Tie rod, steering
|
48870-84C50-000 |
— | ||
|
16
|
16
48837-70A00-000 NUT,TIE-ROD END LOCK,RLH THREADS |
48837-70A00-000 |
from US $2.08 |
||
|
17
|
17
48838-70A00-000 NUT,TIE-ROD END LOCK,LRH THREADS |
48838-70A00-000 |
from US $2.56 |
||
|
18
|
18
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
18
|
18
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.99 |
||
|
19
|
19
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
19
|
19
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.59 |
||
|
20
|
20
48800-84C50-000
Tie rod assy, steering
|
48800-84C50-000 |
— | ||
