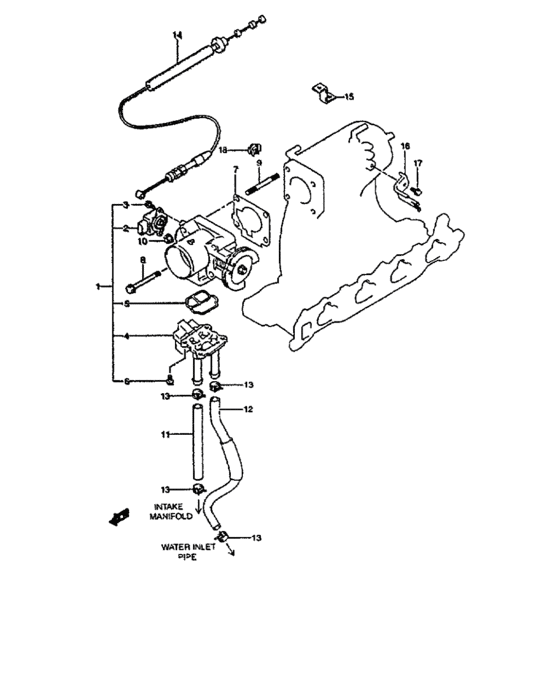

Throttle body (THROTTLE BODY) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-64G00-000
BODY ASSY THROTTLE
|
13400-64G00-000 |
— | ||
| replacement | |||||
|
1
|
1
13400-64G01-000 BODY ASSY,THROTTLE |
13400-64G01-000 |
US $816.32 |
||
|
2
|
2
13420-52G00-000 SENSOR,THROTTLE POSITION |
13420-52G00-000 |
from US $125.60 |
||
|
3
|
3
02112-74123-000
Screw
|
02112-74123-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-7412A-000 SCREW |
02112-7412A-000 |
from US $0.96 |
||
|
4
|
4
18137-64G00-000
VALVE ASSY
|
18137-64G00-000 |
— | ||
| replacement | |||||
|
4
|
4
18137-64G01-000 VALVE,ISC |
18137-64G01-000 |
from US $251.87 |
||
|
5
|
5
14139-70G30-000 GASKET,ISC VALVE |
14139-70G30-000 |
from US $2.43 |
||
|
6
|
6
02112-35163-000
Screw
|
02112-35163-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-3516A-000 SCREW |
02112-3516A-000 |
from US $0.76 |
||
|
7
|
7
13421-60G00-000 GASKET,THROTTLE BODYGasket, throttle body |
13421-60G00-000 |
from US $2.40 |
||
|
8
|
8
01550-08503-000
Bolt
|
01550-08503-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
9
|
9
01421-08503-000
Bolt, stud
|
01421-08503-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-0850A-000 BOLT,STUD |
01421-0850A-000 |
from US $4.18 |
||
|
10
|
10
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
10
|
10
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
11
|
11
09356-75141-600 HOSE(7.5X14.5X600)L:600>160 |
09356-75141-600 |
from US $7.67 |
||
|
12
|
12
13492-81A01-000 HOSE,WATER THB OUTLET |
13492-81A01-000 |
US $7.34 |
||
|
13
|
13
18119-85C50-000
Clip
|
18119-85C50-000 |
— | ||
|
14
|
14
15910-830B0-000
Cable assy, accel
|
15910-830B0-000 |
— | ||
|
15
|
15
15918-81A10-000
Bracket, cable
|
15918-81A10-000 |
— | ||
|
16
|
16
15919-81A00-000
GUIDE,ACCEL CABLE
|
15919-81A00-000 |
— | ||
|
17
|
17
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
09403-05311-000 CLAMP |
09403-05311-000 |
US $14.40 |
||
