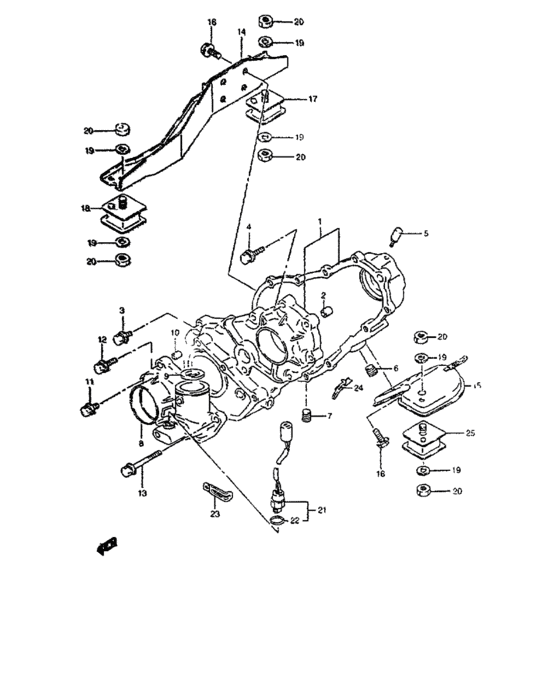

Transfer case (TRANSFER CASE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29510-80053-000
ケースアッシ,トランスファ
|
29510-80053-000 |
— | ||
| replacement | |||||
|
1
|
1
29510-83050-000 CASE ASSY,T/F |
29510-83050-000 |
from US $249.41 |
||
|
2
|
2
29527-80050-000 PIN,T/F CASE KNOCK |
29527-80050-000 |
from US $0.90 |
||
|
3
|
3
09103-08247-000 BOLT(8X23) |
09103-08247-000 |
from US $0.83 |
||
|
4
|
4
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
4
|
4
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
5
|
5
29515-80050-000 PLUG,T/F BREATHER |
29515-80050-000 |
from US $0.74 |
||
|
6
|
6
21947-85C40-000
Plug, oil hole
|
21947-85C40-000 |
— | ||
|
7
|
7
21947-85C50-000
Plug, axle housing drain
|
21947-85C50-000 |
— | ||
|
8
|
8
29530-80051-000 CASE,T/F,FR |
29530-80051-000 |
from US $83.21 |
||
|
9
|
9
29540-80050-000
Siege espherique
|
29540-80050-000 |
— | ||
| replacement | |||||
|
9
|
9
29541-80051-000 SHEET,T/F SHIFT BALL |
29541-80051-000 |
from US $11.99 |
||
|
10
|
10
29527-80050-000 PIN,T/F CASE KNOCK |
29527-80050-000 |
from US $0.90 |
||
|
11
|
11
09103-08247-000 BOLT(8X23) |
09103-08247-000 |
from US $0.83 |
||
|
12
|
12
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
12
|
12
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
13
|
13
01550-08803-000
Bolt (8x80)
|
01550-08803-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0880B-000 BoltBolt, muffler bracket & stand |
01550-0880B-000 |
from US $3.05 |
||
|
13
|
13
01550-0880A-000 Bolt |
01550-0880A-000 |
from US $1.67 |
||
|
14
|
14
29620-80701-000 BRACKET,T/F MOUNTING,R |
29620-80701-000 |
US $72 |
||
|
15
|
15
29630-80700-000 BRACKET,T/F MOUNTING,L |
29630-80700-000 |
US $16.19 |
||
|
16
|
16
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
16
|
16
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
17
|
17
29610-A8300-100
Support avan cg
|
29610-A8300-100 |
— | ||
|
18
|
18
29610-A8300-100
Support avan cg
|
29610-A8300-100 |
— | ||
|
19
|
19
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
20
|
20
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
21
|
21
37680-80002-000 SWITCH ASSY,4WD |
37680-80002-000 |
US $40 |
||
|
22
|
22
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.97 |
||
|
23
|
23
24759-A7813-000
Clamp, harness no. 1
|
24759-A7813-000 |
— | ||
|
24
|
24
29660-83000-000 PIPE,OIL RECEIVER |
29660-83000-000 |
US $8.65 |
||
|
25
|
25
29610-A8300-100
Support avan cg
|
29610-A8300-100 |
— | ||
