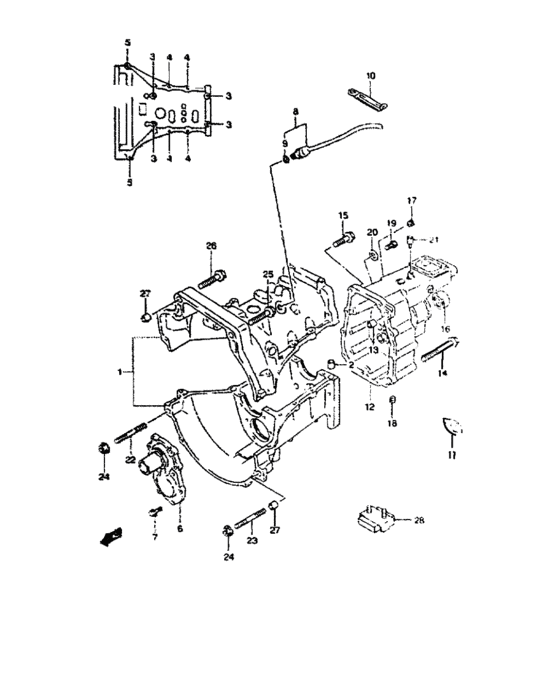

Transmission case (TRANSMISSION CASE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-83001-000
CASE ASSY,T/M
|
24700-83001-000 |
— | ||
|
2
|
2
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
2
|
2
04211-13149-000 PIN |
04211-13149-000 |
from US $1.44 |
||
|
3
|
3
09103-08131-000 BOLT(8X120) |
09103-08131-000 |
from US $0.86 |
||
|
4
|
4
09103-08247-000 BOLT(8X23) |
09103-08247-000 |
from US $0.83 |
||
|
5
|
5
01550-08653-000
Bolt
|
01550-08653-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0865B-000 Bolt |
01550-0865B-000 |
from US $3.84 |
||
|
5
|
5
01550-0865A-000 BoltBolt, oil pump (l) |
01550-0865A-000 |
from US $1.44 |
||
|
6
|
6
24741-83001-000 RETAINER,INPUT SFT BEARING |
24741-83001-000 |
from US $33.84 |
||
|
7
|
7
09103-08152-000 Bolt |
09103-08152-000 |
from US $1.93 |
||
| replacement | |||||
|
7
|
7
09103-08419-000 BOLT(8X25) |
09103-08419-000 |
from US $2.08 |
||
|
8
|
8
37610-83001-000 SWITCH ASSY,BACK UP LAMP |
37610-83001-000 |
from US $31.82 |
||
|
9
|
9
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.97 |
||
|
10
|
10
24759-A7813-000
Clamp, harness no. 1
|
24759-A7813-000 |
— | ||
|
11
|
11
11851-73001-000
フック,エンジン
|
11851-73001-000 |
— | ||
| replacement | |||||
|
11
|
11
11851-62B00-000 HOOK |
11851-62B00-000 |
from US $1.87 |
||
|
12
|
12
24770-80422-000
Case, extension
|
24770-80422-000 |
— | ||
| replacement | |||||
|
12
|
12
24770-80423-000 CASE,EXTENSION |
24770-80423-000 |
US $307.28 |
||
|
13
|
13
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
14
|
14
09103-08132-000
Bolt (8x100)
|
09103-08132-000 |
— | ||
| replacement | |||||
|
14
|
14
09103-08230-000 BOLT(8X100)Bolt (8x100) |
09103-08230-000 |
from US $1.24 |
||
|
15
|
15
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
15
|
15
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
16
|
16
24780-83010-000 SEAL,EXTENSION CASE OIL |
24780-83010-000 |
from US $6.17 |
||
|
17
|
17
21947-85C40-000
Plug, oil hole
|
21947-85C40-000 |
— | ||
|
18
|
18
21947-85C40-000
Plug, oil hole
|
21947-85C40-000 |
— | ||
|
19
|
19
01500-08123-000
Bolt
|
01500-08123-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.78 |
||
|
20
|
20
21945-85C20-000
Gasket
|
21945-85C20-000 |
— | ||
|
21
|
21
24821-09001-000 PLUG,T/M BREATHERPlug, breather |
24821-09001-000 |
from US $2.97 |
||
|
22
|
22
01421-10403-000
New Genuine Part
|
01421-10403-000 |
— | ||
| replacement | |||||
|
22
|
22
01421-1040A-000 BOLT,STUD |
01421-1040A-000 |
from US $1.52 |
||
|
23
|
23
01421-10453-000
Stud 10x45
|
01421-10453-000 |
— | ||
| replacement | |||||
|
23
|
23
01421-1045A-000 BOLT,STUD |
01421-1045A-000 |
US $16.20 |
||
|
24
|
24
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
25
|
25
01517-10603-000
Bolt, no.1
|
01517-10603-000 |
— | ||
|
26
|
26
01550-10703-000
ボルト
|
01550-10703-000 |
— | ||
| replacement | |||||
|
26
|
26
01550-1070A-000 Bolt |
01550-1070A-000 |
from US $1.60 |
||
|
27
|
27
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
27
|
27
04211-13149-000 PIN |
04211-13149-000 |
from US $1.44 |
||
|
28
|
28
29553-85F30-000 DAMPER,T/M MASS |
29553-85F30-000 |
from US $72.50 |
||
