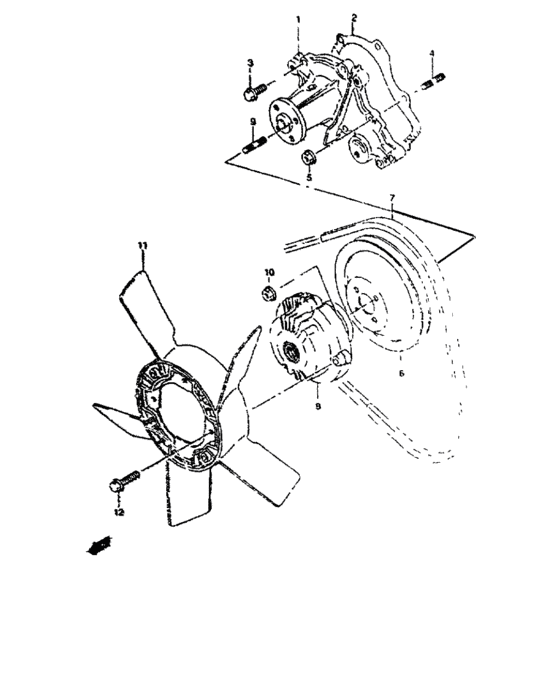

Water pump (WATER PUMP) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-83003-000
Pump set, water
|
17400-83003-000 |
— | ||
|
2
|
2
17431-85C00-000
Gasket, Water Pump
|
17431-85C00-000 |
— | ||
|
3
|
3
09103-06066-000 BOLT(6X23)Bolt (6x23) |
09103-06066-000 |
from US $0.56 |
||
|
4
|
4
01421-06203-000
Stud bolt (l:20)(green)
|
01421-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0620A-000 BOLT,STUD |
01421-0620A-000 |
from US $1.12 |
||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
17511-57B00-000 PULLEY,WATER PUMP |
17511-57B00-000 |
from US $22.70 |
||
|
7
|
7
17521-86500-000 V-BELT (4PK815) |
17521-86500-000 |
from US $20.23 |
||
|
8
|
8
17120-81A00-000 CLUTCH ASSY,FAN |
17120-81A00-000 |
from US $168.26 |
||
|
9
|
9
01411-06203-000
STUD 6X20
|
01411-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
01411-0620A-000 BOLT,STUD |
01411-0620A-000 |
from US $0.79 |
||
|
10
|
10
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
17110-83000-000 FAN,ENG COOLING |
17110-83000-000 |
US $42.32 |
||
|
12
|
12
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
