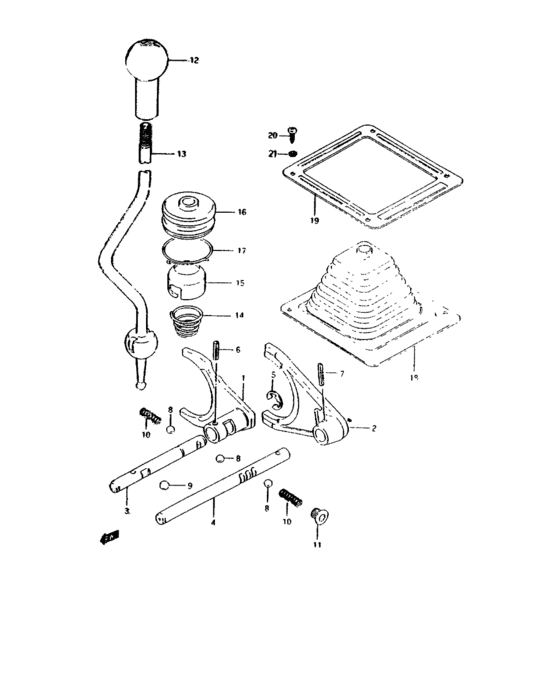

Groupe - catalog. samurai milsubgroupe - e - 1 - 0 levier b transp. (GROUPE - CATALOG. SAMURAI MILSUBGROUPE - E - 1 - 0 LEVIER B TRANSP.) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29310-80050-000 FORK,FRONT DRIVE SHIFT |
29310-80050-000 |
US $21.44 |
||
|
2
|
2
29321-80052-000 FORK,REDUCTION SHIFT |
29321-80052-000 |
from US $21.04 |
||
|
3
|
3
29331-80050-000 Axe select transm. |
29331-80050-000 |
US $18.79 |
||
| replacement | |||||
|
3
|
3
29331-83050-000 SHAFT,FRONT DRIVE SHIFT |
29331-83050-000 |
from US $18.79 |
||
|
4
|
4
29332-80051-000
Axe select reducc.
|
29332-80051-000 |
— | ||
| replacement | |||||
|
4
|
4
29332-80052-000 SHAFT,REDUCTION SHIFT |
29332-80052-000 |
from US $20.72 |
||
|
5
|
5
08332-11106-000
E ring
|
08332-11106-000 |
— | ||
| replacement | |||||
|
5
|
5
08332-1110A-000 E RING |
08332-1110A-000 |
from US $1.12 |
||
|
6
|
6
09205-04003-000 PIN,SPRING(4.5X18) |
09205-04003-000 |
from US $0.45 |
||
|
7
|
7
09205-04001-000 PIN,SPRING(4.5X22) |
09205-04001-000 |
from US $0.18 |
||
|
8
|
8
06112-10004-000 BALL |
06112-10004-000 |
from US $0.74 |
||
| replacement | |||||
|
8
|
8
06111-10003-000 BALL |
06111-10003-000 |
from US $0.96 |
||
|
9
|
9
06112-12004-000
Ball
|
06112-12004-000 |
— | ||
| replacement | |||||
|
9
|
9
06111-12004-000 BALL |
06111-12004-000 |
from US $1.06 |
||
|
10
|
10
29995-80050-000 SPRING,GEAR SHF LOCATING |
29995-80050-000 |
from US $1.17 |
||
|
11
|
11
29941-80050-000 SCREW,GEAR SHIFT LOCATING |
29941-80050-000 |
from US $0.29 |
||
|
12
|
12
29344-80000-000 Boule levier |
29344-80000-000 |
US $7.07 |
||
| replacement | |||||
|
12
|
12
29344-80050-000 KNOB,T/F GEAR SHIFT CONT |
29344-80050-000 |
from US $7.07 |
||
|
13
|
13
29341-80701-000 LEVER,T/F GEAR SHF CONT |
29341-80701-000 |
US $29.81 |
||
|
14
|
14
29996-80050-000 SPRING,T/F GEAR SHIFT LEVER |
29996-80050-000 |
from US $0.97 |
||
|
15
|
15
29348-80050-000 SHEET,GEAR LEVER SPRING |
29348-80050-000 |
from US $4.68 |
||
|
16
|
16
29345-80051-000
Para poussiere.
|
29345-80051-000 |
— | ||
| replacement | |||||
|
16
|
16
29345-80052-000 BOOT,T/F GR SHF LEVER NO.1 |
29345-80052-000 |
from US $13.48 |
||
|
17
|
17
09401-50402-000 CLIP |
09401-50402-000 |
from US $2.18 |
||
|
18
|
18
29346-80002-000
Pare poussiere
|
29346-80002-000 |
— | ||
| replacement | |||||
|
18
|
18
29346-80010-000 BOOT,T/F GR SHF LEVER,NO.2 |
29346-80010-000 |
from US $22.05 |
||
|
19
|
19
29347-A8000-100
Couvercle noir
|
29347-A8000-100 |
— | ||
|
20
|
20
03141-05125-000
Screw, center cover lower
|
03141-05125-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
21
|
21
09161-A0600-800
Rondelle
|
09161-A0600-800 |
— | ||
