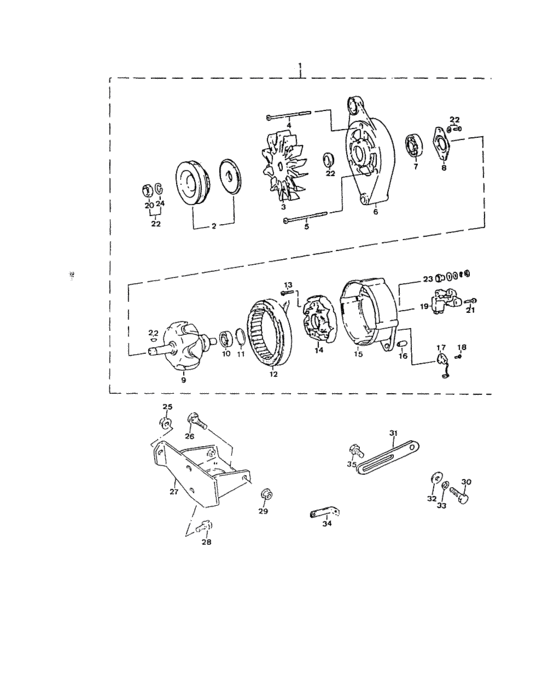

Alternator, inj. (ALTERNATOR, INJ.) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-A8601-000
55a alternator assy
FEMSA-BOSCH |
31400-A8601-000 |
— | ||
|
2
|
2
00000-A0109-100
Pulley assy
|
00000-A0109-100 |
— | ||
|
3
|
3
00000-A0050-800
Fan
|
00000-A0050-800 |
— | ||
|
4
|
4
00000-A0108-800
Stay
|
00000-A0108-800 |
— | ||
|
5
|
5
00000-A0076-200
Stay
|
00000-A0076-200 |
— | ||
|
6
|
6
00000-A0075-100
Pulley cover
|
00000-A0075-100 |
— | ||
|
7
|
7
00000-A0108-400
Bearing
|
00000-A0108-400 |
— | ||
|
8
|
8
00000-A0084-000
Bearing seal plate
|
00000-A0084-000 |
— | ||
|
9
|
9
00000-A0108-500
Rotor
|
00000-A0108-500 |
— | ||
|
10
|
10
00000-A0084-200
Bearing
|
00000-A0084-200 |
— | ||
|
11
|
11
00000-A0084-300
Plastic bush
|
00000-A0084-300 |
— | ||
|
12
|
12
00000-A0108-600
Stator assy
|
00000-A0108-600 |
— | ||
|
13
|
13
00000-A0084-500
Screw with washer
|
00000-A0084-500 |
— | ||
|
14
|
14
00000-A0084-600
Rectifier
|
00000-A0084-600 |
— | ||
|
15
|
15
00000-A0084-700
Cover,ring side
|
00000-A0084-700 |
— | ||
|
16
|
16
00000-A0084-800
Expandible bush
|
00000-A0084-800 |
— | ||
|
17
|
17
00000-A0083-700
Condensator
|
00000-A0083-700 |
— | ||
|
18
|
18
00000-A0083-300
Screw
|
00000-A0083-300 |
— | ||
|
19
|
19
00000-A0076-000
Regulator
|
00000-A0076-000 |
— | ||
|
20
|
20
00000-A0108-900
Nut
|
00000-A0108-900 |
— | ||
|
21
|
21
00000-A0083-100
Screw
|
00000-A0083-100 |
— | ||
|
22
|
22
00000-A0085-100
Rotor parts set
|
00000-A0085-100 |
— | ||
|
23
|
23
00000-A0085-000
Parts set
|
00000-A0085-000 |
— | ||
|
24
|
24
00000-A0109-000
Washer
|
00000-A0109-000 |
— | ||
|
25
|
25
08316-A1600-300
Nut
|
08316-A1600-300 |
— | ||
|
26
|
26
09107-A0000-500
Screw
|
09107-A0000-500 |
— | ||
|
27
|
27
17910-F8200-000
Alternator bracket
|
17910-F8200-000 |
— | ||
|
28
|
28
01507-08203-000
Screw
|
01507-08203-000 |
— | ||
|
29
|
29
08516-A2608-600
Nut
|
08516-A2608-600 |
— | ||
|
30
|
30
01107-08253-000 Bolt m8x1.25x25TYPE 2 |
01107-08253-000 |
US $1.26 |
||
| replacement | |||||
|
30
|
30
01500-0825A-000 BoltTYPE 2 |
01500-0825A-000 |
from US $0.91 |
||
|
30
|
30
01517-08163-000
Bolt 8 x 16
TYPE 3 |
01517-08163-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0816B-000 BOLTTYPE 3 |
01550-0816B-000 |
from US $0.91 |
||
|
30
|
30
01550-0816A-000 BOLTBolt, rear TYPE 3 |
01550-0816A-000 |
from US $0.91 |
||
|
31
|
31
17921-B8201-000
Tensioner
|
17921-B8201-000 |
— | ||
|
32
|
32
09160-08080-000 Washer 8.2 x 22 |
09160-08080-000 |
US $2.12 |
||
| replacement | |||||
|
32
|
32
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
33
|
33
08321-B5108-600
Grower washer
|
08321-B5108-600 |
— | ||
|
34
|
34
35323-00000-000
Tension.reinforcem.
|
35323-00000-000 |
— | ||
|
35
|
35
01517-08303-000
ボルト
|
01517-08303-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.06 |
||
|
35
|
35
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
