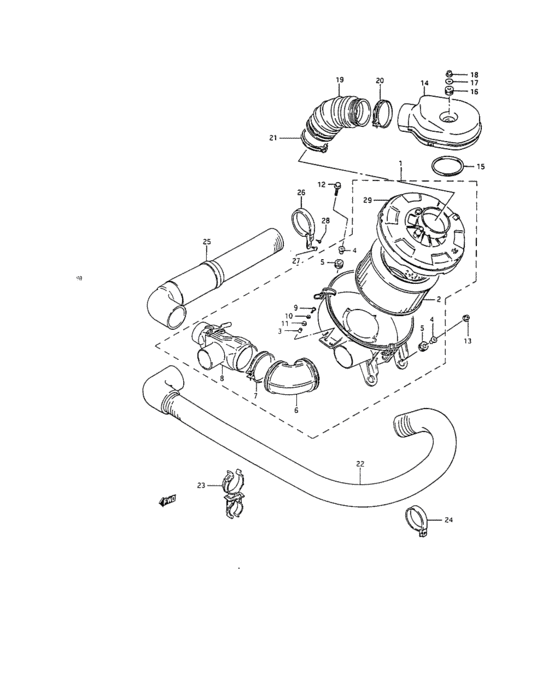

Carb. air filter (CARB. AIR FILTER) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-A8300-100
Cleaner assy, air
|
13700-A8300-100 |
— | ||
|
2
|
2
13780-A8300-000
Filter element
|
13780-A8300-000 |
— | ||
|
3
|
3
13712-83000-000
SPACER
|
13712-83000-000 |
— | ||
|
4
|
4
13812-83001-000
Bush
|
13812-83001-000 |
— | ||
|
5
|
5
13700-B8300-100
Fastening washer
|
13700-B8300-100 |
— | ||
|
6
|
6
13731-83001-000 JOINT,WARM AIR VALVE |
13731-83001-000 |
US $27.36 |
||
|
7
|
7
09402-70207-000
Clamp
|
09402-70207-000 |
— | ||
| replacement | |||||
|
7
|
7
09402-70902-000 CLAMP |
09402-70902-000 |
from US $6.56 |
||
|
8
|
8
13740-83000-000 VALVE,WARM AIR |
13740-83000-000 |
US $33.12 |
||
|
9
|
9
02112-06124-000
Vis
|
02112-06124-000 |
— | ||
|
10
|
10
08321-21064-000
Lock washer
|
08321-21064-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
11
|
11
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
12
|
12
01517-06203-000
Bolt
|
01517-06203-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
12
|
12
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
13
|
13
08316-A1606-300
Fastening nut
TYPE 1 |
08316-A1606-300 |
— | ||
|
13
|
13
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
14
|
14
13830-83001-000
Elbow, carburator
|
13830-83001-000 |
— | ||
| replacement | |||||
|
14
|
14
13830-83002-000
CASE,CARB AIR INTAKE
|
13830-83002-000 |
— | ||
|
15
|
15
13885-83000-000 SEAL,CARB AIR INTAKE CASE |
13885-83000-000 |
US $2.13 |
||
|
16
|
16
09169-06057-000 WASHER |
09169-06057-000 |
from US $1.76 |
||
|
17
|
17
09320-09034-000
GROMMET
|
09320-09034-000 |
— | ||
| replacement | |||||
|
17
|
17
09320-09063-000 Cushion |
09320-09063-000 |
from US $4.22 |
||
|
18
|
18
08316-A1606-300
Fastening nut
|
08316-A1606-300 |
— | ||
|
19
|
19
13881-A8300-100
Hose
|
13881-A8300-100 |
— | ||
|
20
|
20
08004-00000-000
Collier
|
08004-00000-000 |
— | ||
|
21
|
21
08006-00000-000
Clamp
|
08006-00000-000 |
— | ||
|
22
|
22
13840-83001-000
Hose, warm air
|
13840-83001-000 |
— | ||
| replacement | |||||
|
22
|
22
13840-83011-000
HOSE,WARM AIR
|
13840-83011-000 |
— | ||
|
23
|
23
13860-83000-000
CLAMP ASSY,WARM AIR HOSE
|
13860-83000-000 |
— | ||
|
24
|
24
09403-A4840-100
Collier
|
09403-A4840-100 |
— | ||
|
25
|
25
13870-83000-000 HOSE,COOL AIR |
13870-83000-000 |
US $39.20 |
||
|
26
|
26
13896-83000-000 CLAMP,COOL AIR HOSE |
13896-83000-000 |
US $2.24 |
||
|
27
|
27
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
27
|
27
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
28
|
28
03141-05106-000
New Genuine Part
|
03141-05106-000 |
— | ||
| replacement | |||||
|
28
|
28
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
29
|
29
13700-C8300-100
Filter housing
|
13700-C8300-100 |
— | ||
