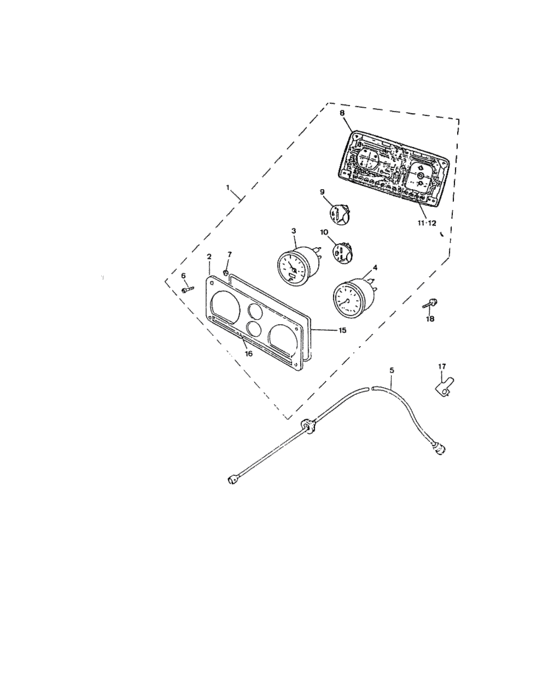

Dash board (DASH BOARD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-50C71-000
SPEEDOMETER ASSY,COMB
INJ |
34100-50C71-000 |
— | ||
|
1
|
1
34100-A71A0-000
Dash board assy
H 115195-United Kingdom |
34100-A71A0-000 |
— | ||
|
1
|
1
34100-A71A5-000
Dash board assy
CARB |
34100-A71A5-000 |
— | ||
|
1
|
1
34100-B71A0-000
Board pan.assy,h/rpm
United Kingdom |
34100-B71A0-000 |
— | ||
|
1
|
1
34100-C71A0-000
Dash board assy
D 115196-United Kingdom |
34100-C71A0-000 |
— | ||
|
2
|
2
00000-A0054-700
Couvercle
|
00000-A0054-700 |
— | ||
|
3
|
3
00000-A0054-100
Compter vitesse
|
00000-A0054-100 |
— | ||
|
3
|
3
00000-A0080-000
Speedometer
H 115195-United Kingdom |
00000-A0080-000 |
— | ||
|
3
|
3
00000-A0104-600
Speedometer
D 115196-United Kingdom |
00000-A0104-600 |
— | ||
|
4
|
4
00000-A0054-000
Tachometer assy
|
00000-A0054-000 |
— | ||
|
4
|
4
00000-A0078-800
Tachometer assy
|
00000-A0078-800 |
— | ||
|
5
|
5
34910-80C31-000
Speedometer cable
INJ |
34910-80C31-000 |
— | ||
| replacement | |||||
|
5
|
5
34910-80C60-000
CABLE ASSY,SPEEDOMETER
INJ |
34910-80C60-000 |
— | ||
|
5
|
5
34910-A8002-000
Speedometer cable
H 115670-United Kingdom |
34910-A8002-000 |
— | ||
|
5
|
5
34910-A00C3-000
Speedometer cable
CARB |
34910-A00C3-000 |
— | ||
|
5
|
5
34910-B2002-000
Speedometer cable
D 115671-United Kingdom |
34910-B2002-000 |
— | ||
|
6
|
6
05121-05165-000
Screw
|
05121-05165-000 |
— | ||
|
7
|
7
09148-05019-000 NUTTYPE 1,TYPE 2:United Kingdom |
09148-05019-000 |
from US $0.96 |
||
|
7
|
7
09148-A0300-400
Nut
INJ |
09148-A0300-400 |
— | ||
|
7
|
7
09148-A0501-300
Vitre
CARB |
09148-A0501-300 |
— | ||
|
8
|
8
00000-A0054-400
Circuit imprime
|
00000-A0054-400 |
— | ||
|
9
|
9
00000-A0054-200
Indicateur temp.
|
00000-A0054-200 |
— | ||
|
10
|
10
00000-A0054-300
Indic. carburant
|
00000-A0054-300 |
— | ||
|
11
|
11
00000-A0008-000
Socket 2w
|
00000-A0008-000 |
— | ||
|
12
|
12
00000-A0049-300
Porte lampe 1,2 w
|
00000-A0049-300 |
— | ||
|
13
|
13
03141-05165-000
Screw
|
03141-05165-000 |
— | ||
| replacement | |||||
|
13
|
13
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
14
|
14
09148-05005-000 NUTTYPE 1,TYPE 2:United Kingdom |
09148-05005-000 |
US $1.28 |
||
|
14
|
14
09148-A0500-500
Nut, front grille center
|
09148-A0500-500 |
— | ||
|
15
|
15
00000-A0063-500
Vitre
|
00000-A0063-500 |
— | ||
|
16
|
16
00000-A0066-100
Reglet
|
00000-A0066-100 |
— | ||
|
17
|
17
11022-00000-000
Speedo,cable adaptor
D 113671-United Kingdom |
11022-00000-000 |
— | ||
|
18
|
18
02142-05086-000
スクリュ
INJ |
02142-05086-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-0508A-000 SCREWScrew, cap INJ |
02142-0508A-000 |
from US $0.76 |
||
