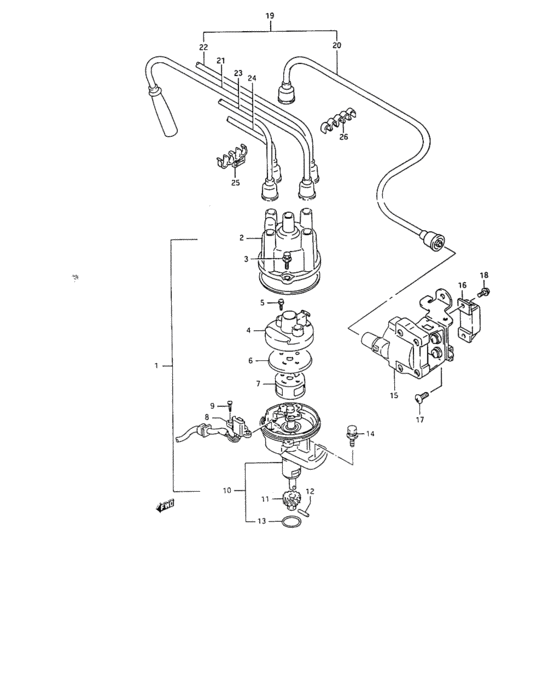

Distrib. inj. (DISTRIB. INJ.) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-80C10-000
DISTRIBUTOR ASSY
|
33100-80C10-000 |
— | ||
|
2
|
2
33321-80C10-000
CAP,DISTRIBUTOR
|
33321-80C10-000 |
— | ||
|
3
|
3
33237-60B50-000
ボルト
|
33237-60B50-000 |
— | ||
| replacements | |||||
|
3
|
3
01580-0520B-000 BOLT |
01580-0520B-000 |
from US $1.17 |
||
|
3
|
3
01174-05203-000
New Genuine Part
|
01174-05203-000 |
— | ||
|
4
|
4
33310-80C10-000
ROTOR ASSY,DISTRIBUTOR
|
33310-80C10-000 |
— | ||
|
5
|
5
33152-80C10-000 SCREW |
33152-80C10-000 |
US $1.44 |
||
|
6
|
6
33326-80C10-000
Cover
|
33326-80C10-000 |
— | ||
|
7
|
7
33380-80C10-000
Rotor assy, signal
|
33380-80C10-000 |
— | ||
|
8
|
8
33140-80C10-000 SENSOR ASSY,CRANK POSITION |
33140-80C10-000 |
US $310.96 |
||
|
9
|
9
33151-80C10-000
Screw
|
33151-80C10-000 |
— | ||
| replacements | |||||
|
9
|
9
02112-3416B-000 SCREW |
02112-3416B-000 |
from US $3.47 |
||
|
9
|
9
02112-34166-000
Screw
|
02112-34166-000 |
— | ||
|
10
|
10
33110-80C10-000
Housing kit
|
33110-80C10-000 |
— | ||
|
11
|
11
33267-73A10-000
Gear
|
33267-73A10-000 |
— | ||
|
12
|
12
33268-85570-000
Pin
|
33268-85570-000 |
— | ||
|
13
|
13
33278-83310-000
O ring
|
33278-83310-000 |
— | ||
|
14
|
14
09118-08110-000
ボルト,8X30
|
09118-08110-000 |
— | ||
| replacement | |||||
|
14
|
14
09138-08003-000 SCREW(8X30) |
09138-08003-000 |
from US $1.49 |
||
|
15
|
15
33410-80C10-000 COIL ASSY,IGNITION |
33410-80C10-000 |
US $175.90 |
||
|
16
|
16
33070-71C10-000
Ignition assy
|
33070-71C10-000 |
— | ||
|
17
|
17
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
17
|
17
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
17
|
17
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
18
|
18
02112-35104-000
Screw
|
02112-35104-000 |
— | ||
|
19
|
19
33700-83020-000
Plug wire set
|
33700-83020-000 |
— | ||
| replacements | |||||
|
19
|
19
33705-80C00-000 CORD SET,HIGH TENSION |
33705-80C00-000 |
US $70.40 |
||
|
19
|
19
33710-83020-000 CORD,HT NO.1 |
33710-83020-000 |
US $11.04 |
||
|
20
|
20
33719-83020-000
Cable,coil to distri
|
33719-83020-000 |
— | ||
|
21
|
21
33730-85920-000
Cable to cylinder n1
|
33730-85920-000 |
— | ||
|
22
|
22
33740-83020-000
コード,ハイテンション,NO.3
|
33740-83020-000 |
— | ||
| replacement | |||||
|
22
|
22
33740-60C30-000
CORD,HT NO.3
|
33740-60C30-000 |
— | ||
|
23
|
23
33750-85020-000
コード,ハイテンション,NO.4
|
33750-85020-000 |
— | ||
|
24
|
24
33760-83020-000
コード,ハイテンション,NO.5
|
33760-83020-000 |
— | ||
| replacement | |||||
|
24
|
24
33760-85220-000 CORD,HT NO.5 |
33760-85220-000 |
US $20.53 |
||
|
25
|
25
33884-86510-000 CLAMP |
33884-86510-000 |
US $2.08 |
||
|
26
|
26
33885-83020-000
Clamp
|
33885-83020-000 |
— | ||
