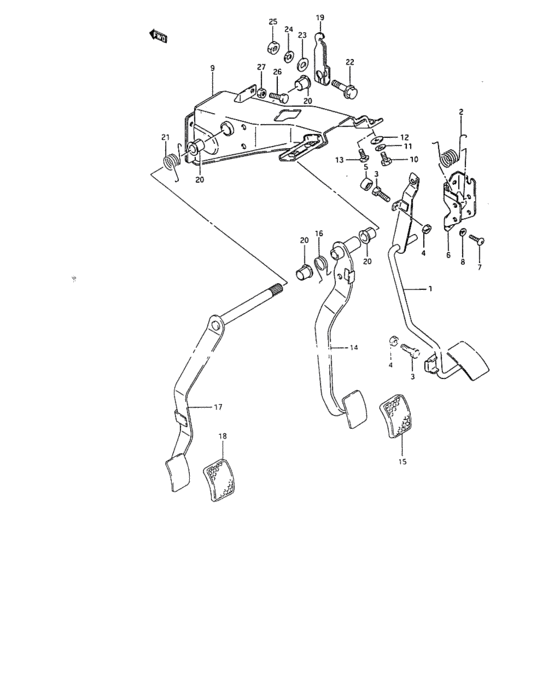

Pedals, lhd (PEDALS, LHD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-83011-000
Pedale acceleration
|
49410-83011-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-83013-000
PEDAL,ACCELERATOR
|
49410-83013-000 |
— | ||
|
2
|
2
09448-21003-000
スプリング
|
09448-21003-000 |
— | ||
| replacement | |||||
|
2
|
2
09448-21005-000 SPRING |
09448-21005-000 |
US $36.10 |
||
|
2
|
2
09448-22006-000
SPRING
INJ |
09448-22006-000 |
— | ||
|
3
|
3
09100-06055-000 BOLT(6X25)Bolt |
09100-06055-000 |
from US $3.25 |
||
|
4
|
4
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
4
|
4
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
5
|
5
09251-09002-000
CAP(OD:13.6)
|
09251-09002-000 |
— | ||
| replacement | |||||
|
5
|
5
09251-09008-000 Cap(Od:13.6) |
09251-09008-000 |
from US $5.61 |
||
|
6
|
6
49511-80110-000
Bracket, accelerator pedal
|
49511-80110-000 |
— | ||
| replacement | |||||
|
6
|
6
49511-80111-000 BRACKET,ACCELERATOR |
49511-80111-000 |
US $6.26 |
||
|
7
|
7
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
7
|
7
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
7
|
7
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
8
|
8
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
9
|
9
49710-A0301-000
Pedal bracket
TYPE 1 |
49710-A0301-000 |
— | ||
|
9
|
9
49710-B0301-000
Pedal bracket
H 117302-TYPE 2 |
49710-B0301-000 |
— | ||
|
9
|
9
49710-C8301-000
Pedal bracket
D 117302-TYPE 2,TYPE 3 |
49710-C8301-000 |
— | ||
|
10
|
10
01107-08206-000
Bolt
TYPE 1 |
01107-08206-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-0820A-000 BoltTYPE 1 |
01500-0820A-000 |
from US $0.80 |
||
|
10
|
10
01107-08303-000
ボルト
TYPE 2,TYPE 3 |
01107-08303-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-0830B-000 BoltTYPE 2,TYPE 3 |
01500-0830B-000 |
from US $0.96 |
||
|
11
|
11
09100-T0807-500
Washer
|
09100-T0807-500 |
— | ||
|
12
|
12
09160-10001-000
Washer
|
09160-10001-000 |
— | ||
| replacement | |||||
|
12
|
12
09160-10093-000 WASHER(10.5X24X2.3) |
09160-10093-000 |
from US $1.35 |
||
|
13
|
13
01107-08206-000
Bolt
TYPE 1 |
01107-08206-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-0820A-000 BoltTYPE 1 |
01500-0820A-000 |
from US $0.80 |
||
|
14
|
14
49610-80110-000
PEDAL,BRAKE
|
49610-80110-000 |
— | ||
|
15
|
15
49731-79001-000
Pad, pedal
|
49731-79001-000 |
— | ||
|
16
|
16
09448-31050-000
Pedal spring
|
09448-31050-000 |
— | ||
|
17
|
17
49810-00110-000
Clutch pedal
|
49810-00110-000 |
— | ||
|
18
|
18
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
18
|
18
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.59 |
||
|
19
|
19
49821-80110-000
Levier axe
|
49821-80110-000 |
— | ||
| replacement | |||||
|
19
|
19
49820-80110-000
ARM,CLUTCH PEDAL SHAFT
|
49820-80110-000 |
— | ||
|
20
|
20
09306-14004-000 BUSH |
09306-14004-000 |
US $1.92 |
||
|
21
|
21
09448-30010-000 SPRING |
09448-30010-000 |
US $2.43 |
||
|
22
|
22
01517-08356-000
Bolt, front
|
01517-08356-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
22
|
22
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
23
|
23
03009-00000-000
Flat washer
|
03009-00000-000 |
— | ||
|
24
|
24
08321-B3100-600
Spring washer
|
08321-B3100-600 |
— | ||
|
25
|
25
08310-11086-000
Nut
|
08310-11086-000 |
— | ||
| replacement | |||||
|
25
|
25
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
26
|
26
09100-06055-000 BOLT(6X25)Bolt |
09100-06055-000 |
from US $3.25 |
||
|
27
|
27
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
27
|
27
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
27
|
27
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
