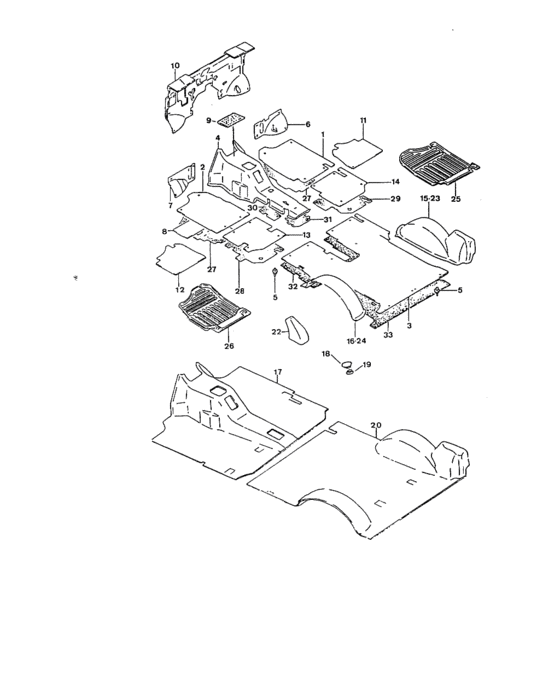

Moquet./carpet (MOQUET./CARPET) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51573-00000-5JP
Front mat assy,r/h
United Kingdom,GREY |
51573-00000-5JP |
— | ||
|
1
|
1
51581-00000-000
Front mat assy,r/h
United Kingdom,BROWN |
51581-00000-000 |
— | ||
|
1
|
1
75110-C8305-000
Front mat assy,r/h
BROWN |
75110-C8305-000 |
— | ||
|
2
|
2
51575-00000-5JP
Front mat assy,l/h
United Kingdom,GREY |
51575-00000-5JP |
— | ||
|
2
|
2
51583-00000-000
Front mat assy,l/h
United Kingdom,BROWN |
51583-00000-000 |
— | ||
|
2
|
2
75120-C8303-000
Front mat assy,l/h
BROWN |
75120-C8303-000 |
— | ||
|
3
|
3
75170-C8377-100
Rear floor mat assy
LONG BODY,BROWN |
75170-C8377-100 |
— | ||
|
3
|
3
75170-E8368-000
Rear floor mat assy
BROWN |
75170-E8368-000 |
— | ||
|
4
|
4
51577-00000-5JP
Tunel mat assy
United Kingdom |
51577-00000-5JP |
— | ||
|
4
|
4
75150-C8304-000
Tunel mat assy
BROWN |
75150-C8304-000 |
— | ||
|
5
|
5
09410-00067-000 MALETYPE 3 |
09410-00067-000 |
US $2.88 |
||
|
6
|
6
75211-A8300-000
Board insulant,r/h
United Kingdom,GREY |
75211-A8300-000 |
— | ||
|
6
|
6
75211-A8301-000
Silencer, dash panel rh
GREY |
75211-A8301-000 |
— | ||
|
6
|
6
75211-B8300-000
Board insulant,r/h
United Kingdom,BROWN |
75211-B8300-000 |
— | ||
|
6
|
6
75211-B8301-000
Board insulant,r/h
BROWN |
75211-B8301-000 |
— | ||
|
7
|
7
75221-A8300-000
Board insulant,l/h
United Kingdom,GREY |
75221-A8300-000 |
— | ||
|
7
|
7
75221-A8301-000
Silencer, dash panel lh
GREY |
75221-A8301-000 |
— | ||
|
7
|
7
75221-B8300-000
Board insulant,l/h
United Kingdom,BROWN |
75221-B8300-000 |
— | ||
|
7
|
7
75221-D8301-000
Board insulant,l/h
BROWN |
75221-D8301-000 |
— | ||
|
8
|
8
75231-80000-000
PAD,FRONT FLOOR,L
|
75231-80000-000 |
— | ||
|
9
|
9
28381-B8300-000
Anagramme uso levier
|
28381-B8300-000 |
— | ||
|
9
|
9
28381-C8300-000
Lever use label
'J',Holland |
28381-C8300-000 |
— | ||
|
9
|
9
28381-D8300-000
Lever use label
'V',Holland |
28381-D8300-000 |
— | ||
|
10
|
10
75240-A8300-200
Fr.insul.panel assy
'V',United Kingdom |
75240-A8300-200 |
— | ||
|
10
|
10
75240-A8301-200
Silencer, dash panel
'V' |
75240-A8301-200 |
— | ||
|
11
|
11
75250-83001-000
SILENCER,FR FLOOR,R
'V' |
75250-83001-000 |
— | ||
|
12
|
12
75260-83001-000
SILENCER,FR FLOOR,L
'V' |
75260-83001-000 |
— | ||
|
13
|
13
75170-G8368-000
Interm.mat assy,l/h
BROWN |
75170-G8368-000 |
— | ||
|
14
|
14
51578-00000-000
Interm.mat assy,r/h
United Kingdom |
51578-00000-000 |
— | ||
|
15
|
15
75530-A8303-100
Wh.bypass mat ass.rh
TYPE 2,TYPE 3:LB:GREY |
75530-A8303-100 |
— | ||
|
15
|
15
75530-B8303-100
Wh.bypass mat ass.rh
LONG BODY,BROWN |
75530-B8303-100 |
— | ||
|
15
|
15
75530-D8300-200
Wh.bypass mat ass.lh
BROWN |
75530-D8300-200 |
— | ||
|
16
|
16
75540-A8300-100
Wh.bypass mat ass.lh
TYPE 2,TYPE 3:LB:GREY |
75540-A8300-100 |
— | ||
|
16
|
16
75540-C8303-100
Wh.bypass mat ass.lh
LONG BODY,BROWN |
75540-C8303-100 |
— | ||
|
17
|
17
50954-00000-000
Fitted fr.carpet ass
|
50954-00000-000 |
— | ||
|
17
|
17
50954-00000-5JR
Fitted fr.carpet ass
|
50954-00000-5JR |
— | ||
|
17
|
17
17350-95700-000
Fitted fr.carpet ass
BROWN |
17350-95700-000 |
— | ||
|
17
|
17
51678-00000-000
Fitted fr.carpet ass
United Kingdom,GREY |
51678-00000-000 |
— | ||
|
18
|
18
75115-80000-000
Bouchon
TYPE 3 |
75115-80000-000 |
— | ||
| replacement | |||||
|
18
|
18
75115-80000-5RT FEMALE,HOOK(GRAY)TYPE 3 |
75115-80000-5RT |
from US $1.52 |
||
|
18
|
18
75115-B8000-000
Female retainer n.1
BROWN |
75115-B8000-000 |
— | ||
|
19
|
19
75116-80000-000 HOOK,MAT NO.2 |
75116-80000-000 |
from US $1.52 |
||
|
20
|
20
50958-00000-5JR
Fitted rr carpet ass
|
50958-00000-5JR |
— | ||
|
20
|
20
50960-00000-000
Carpet, rr floor
GREY |
50960-00000-000 |
— | ||
|
20
|
20
50961-00000-000
Fitted rr carpet ass
BROWN |
50961-00000-000 |
— | ||
|
20
|
20
51506-00000-000
Rear floor carpet
LONG BODY,BROWN |
51506-00000-000 |
— | ||
|
20
|
20
51512-00000-000
Rear carpet assy
United Kingdom,LB,GREY |
51512-00000-000 |
— | ||
|
20
|
20
51513-00000-000
Rear floor carpet
LONG BODY,GREY |
51513-00000-000 |
— | ||
|
21
|
21
75530-F8300-200
Neck cover mat assy
BROWN |
75530-F8300-200 |
— | ||
|
22
|
22
75190-83010-000
Boot
GREY |
75190-83010-000 |
— | ||
|
22
|
22
75190-A8301-000
Boot
BROWN |
75190-A8301-000 |
— | ||
|
23
|
23
51507-00000-000
Wheel carpet assy,rh
BROWN |
51507-00000-000 |
— | ||
|
23
|
23
51508-00000-000
Wheel carpet assy,rh
LONG BODY,BROWN |
51508-00000-000 |
— | ||
|
23
|
23
51514-00000-000
Wheel carpet assy,rh
GREY |
51514-00000-000 |
— | ||
|
23
|
23
51515-00000-000
Wheel carpet assy,rh
LONG BODY,GREY |
51515-00000-000 |
— | ||
|
24
|
24
51509-00000-000
Wheel carpet assy,lh
BROWN |
51509-00000-000 |
— | ||
|
24
|
24
51510-00000-000
Wheel carpet assy,lh
LONG BODY,BROWN |
51510-00000-000 |
— | ||
|
24
|
24
51516-00000-000
Wheel carpet assy,lh
GREY |
51516-00000-000 |
— | ||
|
24
|
24
51517-00000-000
Wheel carpet assy,lh
LONG BODY,GREY |
51517-00000-000 |
— | ||
|
25
|
25
75511-83031-48B
Front floor tray,r/h
Switzerland,Germany |
75511-83031-48B |
— | ||
| replacement | |||||
|
25
|
25
75511-83002-48B
TRIM,FRONT FLOOR,R
Switzerland,Germany |
75511-83002-48B |
— | ||
|
25
|
25
75511-83031-5PK
Front floor tray,r/h
|
75511-83031-5PK |
— | ||
| replacement | |||||
|
25
|
25
75511-83002-48B
TRIM,FRONT FLOOR,R
|
75511-83002-48B |
— | ||
|
26
|
26
75521-83002-48B
TRIM,FRONT FLOOR,L
Switzerland,Germany |
75521-83002-48B |
— | ||
|
26
|
26
75521-83002-5PK
Front floor tray,l/h
|
75521-83002-5PK |
— | ||
| replacement | |||||
|
26
|
26
75521-83002-48B
TRIM,FRONT FLOOR,L
|
75521-83002-48B |
— | ||
|
27
|
27
75311-57C00-000
Sheet, fr floor silencer
|
75311-57C00-000 |
— | ||
|
28
|
28
75321-57C00-000
Sheet,floor silencer
|
75321-57C00-000 |
— | ||
|
29
|
29
75331-57C00-000
Sheet,tunnel silencer
|
75331-57C00-000 |
— | ||
|
30
|
30
75331-57C00-000
Sheet,tunnel silencer
|
75331-57C00-000 |
— | ||
|
31
|
31
75332-57C00-000
Sheet,tunnel silencer,rr
|
75332-57C00-000 |
— | ||
|
32
|
32
75341-A57C0-000
Sheet front,floor rr silencer
'V' |
75341-A57C0-000 |
— | ||
|
33
|
33
75342-A57C0-000
Rr floor rr.inst.plat
'V' |
75342-A57C0-000 |
— | ||
