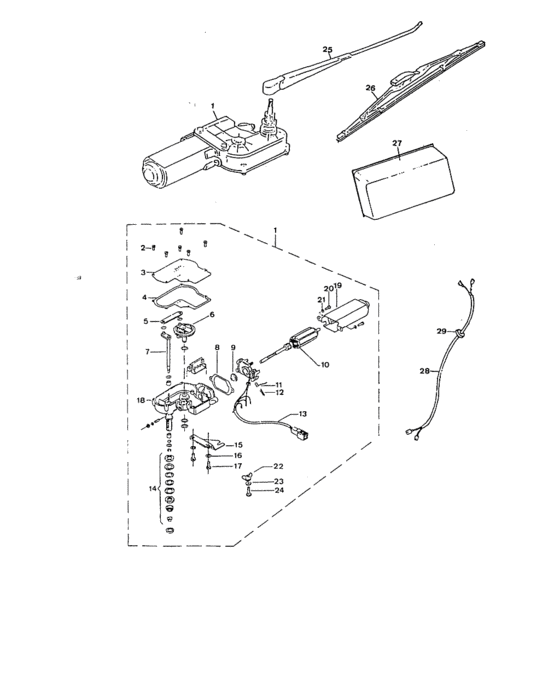

Rr wind. wip. jh (RR WIND. WIP. JH) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35317-00000-000
Rear wiper assy
|
35317-00000-000 |
— | ||
|
2
|
2
00000-A0107-500
Screw, cover
|
00000-A0107-500 |
— | ||
|
3
|
3
00000-A0107-600
Cover
|
00000-A0107-600 |
— | ||
|
4
|
4
00000-A0033-000
Gasket
|
00000-A0033-000 |
— | ||
|
5
|
5
00000-A0033-100
Conducted conn. rod
|
00000-A0033-100 |
— | ||
|
6
|
6
00000-A0098-800
Shaft wheel
|
00000-A0098-800 |
— | ||
|
7
|
7
00000-A0033-500
Motor connecting rod
|
00000-A0033-500 |
— | ||
|
8
|
8
00000-A0033-600
Gasket
|
00000-A0033-600 |
— | ||
|
9
|
9
00000-A0033-700
Rondelle caoutchouc
|
00000-A0033-700 |
— | ||
|
10
|
10
00000-A0098-600
Armature assy
|
00000-A0098-600 |
— | ||
|
11
|
11
00000-A0033-900
Brush
|
00000-A0033-900 |
— | ||
|
12
|
12
00000-A0034-000
Spring
|
00000-A0034-000 |
— | ||
|
13
|
13
00000-A0107-700
Bracket, brush. cable
|
00000-A0107-700 |
— | ||
|
14
|
14
00000-A0107-800
Fastening assy
|
00000-A0107-800 |
— | ||
|
15
|
15
00000-A0048-700
Engine bracket
|
00000-A0048-700 |
— | ||
|
16
|
16
00000-A0107-900
Flat washer
|
00000-A0107-900 |
— | ||
|
17
|
17
00000-A0108-000
Brack. fasten. screw
|
00000-A0108-000 |
— | ||
|
18
|
18
00000-A0108-100
Engine housing
|
00000-A0108-100 |
— | ||
|
18
|
18
36845-84C20-000
Wire comp, back door
|
36845-84C20-000 |
— | ||
|
19
|
19
00000-A0033-300
Bielle
|
00000-A0033-300 |
— | ||
|
20
|
20
00000-A0108-200
Screw
|
00000-A0108-200 |
— | ||
|
21
|
21
00000-A0108-300
Flat washer
|
00000-A0108-300 |
— | ||
|
22
|
22
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
22
|
22
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
22
|
22
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
23
|
23
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
23
|
23
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
24
|
24
09119-A0600-700
Screw,butterfly
|
09119-A0600-700 |
— | ||
|
25
|
25
35009-00000-000
Brass hard top
|
35009-00000-000 |
— | ||
|
26
|
26
35010-00000-000
Balai essuie glace
|
35010-00000-000 |
— | ||
|
27
|
27
51793-00000-000
Couvercle moteur
|
51793-00000-000 |
— | ||
|
28
|
28
35316-00000-000
Wire comp, back door
|
35316-00000-000 |
— | ||
|
28
|
28
35328-00000-000
Wire comp, back door
|
35328-00000-000 |
— | ||
|
28
|
28
36845-84C10-000
Wire comp, back door
|
36845-84C10-000 |
— | ||
|
29
|
29
35070-00000-000
Rondelle calbe
|
35070-00000-000 |
— | ||
