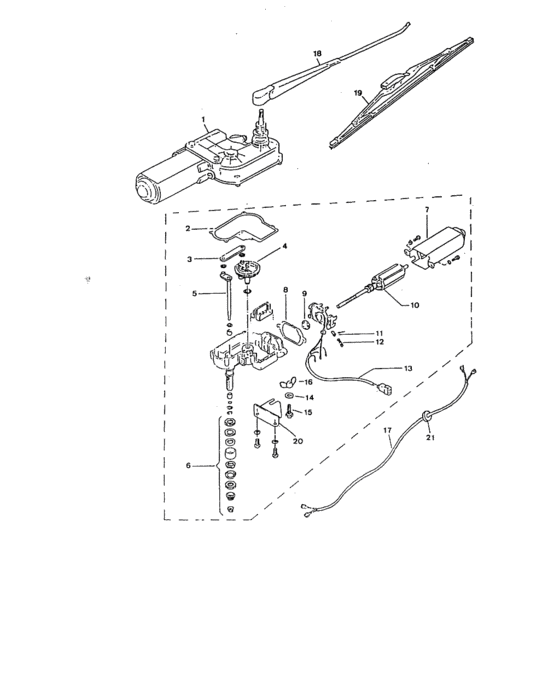

Rr windsc. wip. jh (RR WINDSC. WIP. JH) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15008-00000-000
Sc.wiper engine assy
|
15008-00000-000 |
— | ||
|
2
|
2
00000-A0033-000
Gasket
|
00000-A0033-000 |
— | ||
|
3
|
3
00000-A0033-100
Conducted conn. rod
|
00000-A0033-100 |
— | ||
|
4
|
4
00000-A0098-000
Shaft wheel
|
00000-A0098-000 |
— | ||
|
5
|
5
00000-A0033-300
Bielle
|
00000-A0033-300 |
— | ||
|
6
|
6
00000-A0033-400
Ens soport
|
00000-A0033-400 |
— | ||
|
7
|
7
00000-A0033-500
Motor connecting rod
|
00000-A0033-500 |
— | ||
|
8
|
8
00000-A0033-600
Gasket
|
00000-A0033-600 |
— | ||
|
9
|
9
00000-A0033-700
Rondelle caoutchouc
|
00000-A0033-700 |
— | ||
|
10
|
10
00000-A0098-600
Armature assy
|
00000-A0098-600 |
— | ||
|
11
|
11
00000-A0033-900
Brush
|
00000-A0033-900 |
— | ||
|
12
|
12
00000-A0034-000
Spring
|
00000-A0034-000 |
— | ||
|
13
|
13
00000-A0034-100
Sop balai et cable
|
00000-A0034-100 |
— | ||
|
14
|
14
09160-08020-000
New Genuine Part
|
09160-08020-000 |
— | ||
|
15
|
15
09119-A0600-700
Screw,butterfly
|
09119-A0600-700 |
— | ||
|
16
|
16
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
16
|
16
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
16
|
16
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
17
|
17
35226-00000-000
Cableage essui-glace
|
35226-00000-000 |
— | ||
|
18
|
18
35009-00000-000
Brass hard top
|
35009-00000-000 |
— | ||
|
19
|
19
35010-00000-000
Balai essuie glace
|
35010-00000-000 |
— | ||
|
20
|
20
00000-A0048-700
Engine bracket
|
00000-A0048-700 |
— | ||
|
21
|
21
35070-00000-000
Rondelle calbe
|
35070-00000-000 |
— | ||
