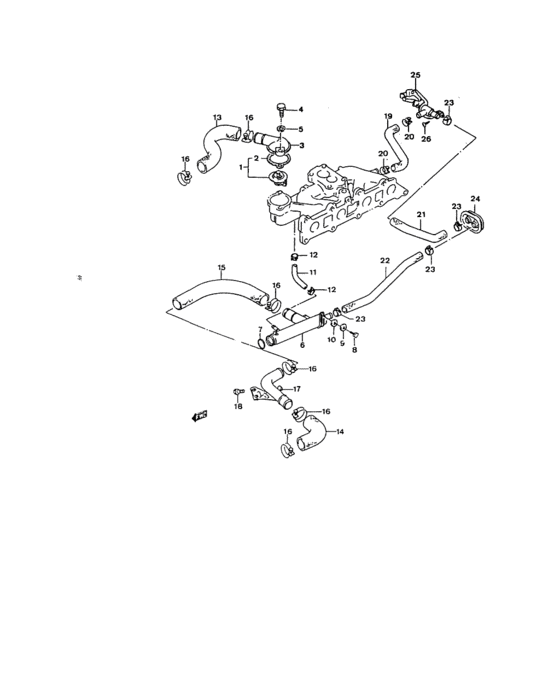

Thermostat, lhd (THERMOSTAT, LHD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Africa
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17570-A7400-100
Thermostat
|
17570-A7400-100 |
— | ||
|
2
|
2
17569-B8000-000
Gasket
|
17569-B8000-000 |
— | ||
|
3
|
3
17561-73000-000 CAP,WATER THERMOSTAT |
17561-73000-000 |
US $11.10 |
||
|
4
|
4
01104-08303-000
Screw
|
01104-08303-000 |
— | ||
|
5
|
5
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
6
|
6
17550-80C00-000
Water inlet hose
INJ |
17550-80C00-000 |
— | ||
| replacement | |||||
|
6
|
6
17550-83X50-000 PIPE,WATER INLETINJ |
17550-83X50-000 |
from US $83.99 |
||
|
6
|
6
17550-83021-000
Tuyau
|
17550-83021-000 |
— | ||
| replacements | |||||
|
6
|
6
17550-83X50-000 PIPE,WATER INLET |
17550-83X50-000 |
from US $83.99 |
||
|
6
|
6
09356-75141-600 HOSE(7.5X14.5X600) |
09356-75141-600 |
from US $5.87 |
||
|
6
|
6
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.52 |
||
|
6
|
6
09356-75141-200
New Genuine Part
|
09356-75141-200 |
— | ||
|
7
|
7
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $1.28 |
||
|
8
|
8
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
8
|
8
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
9
|
9
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
9
|
9
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
10
|
10
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
11
|
11
17859-83001-000
Hose, water dypass
|
17859-83001-000 |
— | ||
| replacements | |||||
|
11
|
11
09356-75141-600 HOSE(7.5X14.5X600) |
09356-75141-600 |
from US $5.87 |
||
|
11
|
11
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.52 |
||
|
11
|
11
09356-75141-200
New Genuine Part
|
09356-75141-200 |
— | ||
|
12
|
12
09401-B1340-400
Collier
|
09401-B1340-400 |
— | ||
|
13
|
13
17841-83000-000
Hose, radiator inlet
|
17841-83000-000 |
— | ||
| replacement | |||||
|
13
|
13
17841-60A00-000 HOSE,RADIATOR INLET |
17841-60A00-000 |
from US $19.67 |
||
|
14
|
14
17851-83000-000
ホース,ラジエータアウトレット,NO.1
|
17851-83000-000 |
— | ||
| replacement | |||||
|
14
|
14
17851-60A00-000 HOSE,RADIATOR OUTLET NO.1 |
17851-60A00-000 |
from US $14.90 |
||
|
15
|
15
17852-83000-000 HOSE,RADIATOR OUTLET NO.2 |
17852-83000-000 |
US $35.72 |
||
|
16
|
16
08005-00000-000
Collier
|
08005-00000-000 |
— | ||
|
17
|
17
17860-A8301-000
Tube radiateur
|
17860-A8301-000 |
— | ||
|
18
|
18
01514-06123-000
Vis
|
01514-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
19
|
19
17871-A8301-000
Hose, inlet to valve
|
17871-A8301-000 |
— | ||
|
20
|
20
08002-00000-000
Clamp
|
08002-00000-000 |
— | ||
|
21
|
21
17872-83010-000
Hose, valve to heater
|
17872-83010-000 |
— | ||
| replacements | |||||
|
21
|
21
17872-83011-000
HOSE,HEATER VALVE TO HEATER
|
17872-83011-000 |
— | ||
|
21
|
21
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.28 |
||
|
22
|
22
17873-A8300-000
Hose, heater to inlet
|
17873-A8300-000 |
— | ||
|
23
|
23
09401-A2040-200
Clip
|
09401-A2040-200 |
— | ||
|
24
|
24
74812-83001-000 GROMMET,HEATER HOSE |
74812-83001-000 |
US $12.32 |
||
|
25
|
25
50683-00000-000
Rovinet chaiffage
|
50683-00000-000 |
— | ||
|
26
|
26
03141-06126-000
スクリュ
|
03141-06126-000 |
— | ||
| replacement | |||||
|
26
|
26
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
