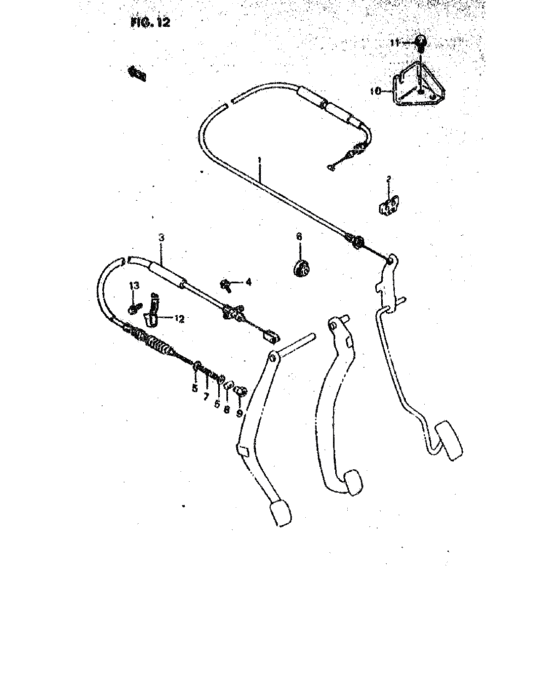

Cables de commande (CABLES DE COMMANDE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-A8301-000
Cable assy, accel
|
15910-A8301-000 |
— | ||
|
2
|
2
15991-83000-000
CLAMP,ACCEL CABLE
|
15991-83000-000 |
— | ||
|
3
|
3
23710-A8302-300
Cable assy, clutch
|
23710-A8302-300 |
— | ||
|
4
|
4
01514-06163-000
Vis
|
01514-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
5
|
5
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
6
|
6
15939-83000-000 PLUG,CHOKE CABLE |
15939-83000-000 |
US $1.52 |
||
|
7
|
7
09440-08026-000 SPRING |
09440-08026-000 |
from US $1.22 |
||
|
8
|
8
09209-13007-000
ピン
|
09209-13007-000 |
— | ||
| replacement | |||||
|
8
|
8
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.82 |
||
|
9
|
9
09150-06010-000 NUT |
09150-06010-000 |
from US $1.82 |
||
|
10
|
10
23911-83001-000
Bracket, clutch cable
|
23911-83001-000 |
— | ||
| replacement | |||||
|
10
|
10
23911-83003-000 BRACKET,CLUTCH CABLE |
23911-83003-000 |
US $13.51 |
||
|
11
|
11
01517-10203-000
ボルト
|
01517-10203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
12
|
12
23915-83000-000
CLAMP,CLUTCH CABLE,NO.1
|
23915-83000-000 |
— | ||
|
13
|
13
01514-06103-000
Vis fixation deflect
|
01514-06103-000 |
— | ||
