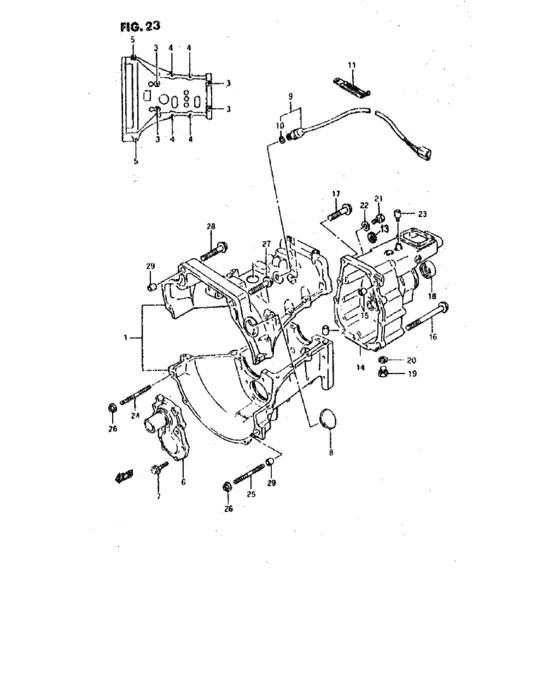

Carter boite vitesse (CARTER BOITE VITESSE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-83000-000
Case assy, transmission
|
24700-83000-000 |
— | ||
| replacement | |||||
|
1
|
1
24700-83001-000
CASE ASSY,T/M
|
24700-83001-000 |
— | ||
|
2
|
2
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
2
|
2
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
3
|
3
09103-08131-000 BOLT(8X120) |
09103-08131-000 |
US $2.24 |
||
|
4
|
4
01517-08303-000
ボルト
|
01517-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.06 |
||
|
4
|
4
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
5
|
5
01517-08653-000
Vis
|
01517-08653-000 |
— | ||
|
6
|
6
24741-83001-000 RETAINER,INPUT SFT BEARING |
24741-83001-000 |
US $45.60 |
||
|
7
|
7
09103-08130-000
BOLT(8X25)
|
09103-08130-000 |
— | ||
|
8
|
8
09250-26005-000 CAP(OD:36) |
09250-26005-000 |
from US $2.48 |
||
|
9
|
9
37610-A8004-200
Contacteur ma
|
37610-A8004-200 |
— | ||
|
10
|
10
37610-C8004-200
Joint torique
|
37610-C8004-200 |
— | ||
|
11
|
11
09404-A0641-500
Collier de serrage
|
09404-A0641-500 |
— | ||
|
12
|
12
35026-00000-000
Cableage
|
35026-00000-000 |
— | ||
|
13
|
13
29958-A8005-000
Rondelle bouchon
|
29958-A8005-000 |
— | ||
|
14
|
14
24770-83003-000
Case, extension
|
24770-83003-000 |
— | ||
| replacements | |||||
|
14
|
14
24770-83006-000 CASE ASSY,EXTENSION |
24770-83006-000 |
US $231.84 |
||
|
14
|
14
09164-20008-000 WASHER |
09164-20008-000 |
from US $1.52 |
||
|
14
|
14
09246-16010-000
PLUG
|
09246-16010-000 |
— | ||
|
14
|
14
09246-16009-000
プラグ
|
09246-16009-000 |
— | ||
|
14
|
14
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
15
|
15
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
15
|
15
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
16
|
16
09103-08132-000
Bolt (8x100)
|
09103-08132-000 |
— | ||
| replacement | |||||
|
16
|
16
09103-08230-000 BOLT(8X100)Bolt (8x100) |
09103-08230-000 |
US $1.76 |
||
|
17
|
17
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
17
|
17
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
18
|
18
24780-83000-000
Dil seal, extension case
|
24780-83000-000 |
— | ||
| replacement | |||||
|
18
|
18
24780-83010-000 SEAL,EXTENSION CASE OIL |
24780-83010-000 |
from US $5.76 |
||
|
19
|
19
09247-A1800-300
Bouchon v dange
|
09247-A1800-300 |
— | ||
|
20
|
20
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) |
09160-18018-000 |
US $0.96 |
||
|
21
|
21
01104-08123-000
Bouchon
|
01104-08123-000 |
— | ||
|
22
|
22
09168-A0801-500
Joint
|
09168-A0801-500 |
— | ||
|
23
|
23
24821-09000-000 Plug, breather |
24821-09000-000 |
US $7.39 |
||
| replacement | |||||
|
23
|
23
24821-09001-000 PLUG,T/M BREATHERPlug, breather |
24821-09001-000 |
from US $3.04 |
||
|
24
|
24
01421-10353-000
Stud 10x1.25x55
|
01421-10353-000 |
— | ||
| replacements | |||||
|
24
|
24
01421-1035A-000 BOLT,STUD |
01421-1035A-000 |
from US $4.13 |
||
|
24
|
24
01421-1035B-000 BOLT,STUD |
01421-1035B-000 |
US $17.30 |
||
|
25
|
25
01421-10453-000
Stud 10x45
|
01421-10453-000 |
— | ||
| replacement | |||||
|
25
|
25
01421-1045A-000 BOLT,STUD |
01421-1045A-000 |
US $16.20 |
||
|
26
|
26
08316-16103-000 Nut |
08316-16103-000 |
US $1.30 |
||
| replacement | |||||
|
26
|
26
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
27
|
27
01537-10603-000
New Genuine Part
|
01537-10603-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-1060B-000 Bolt |
01550-1060B-000 |
US $1.60 |
||
|
28
|
28
01537-10703-000
New Genuine Part
|
01537-10703-000 |
— | ||
| replacement | |||||
|
28
|
28
01550-1070A-000 Bolt |
01550-1070A-000 |
from US $1.60 |
||
|
29
|
29
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
29
|
29
04211-13189-000 PIN |
04211-13189-000 |
from US $1.17 |
||
