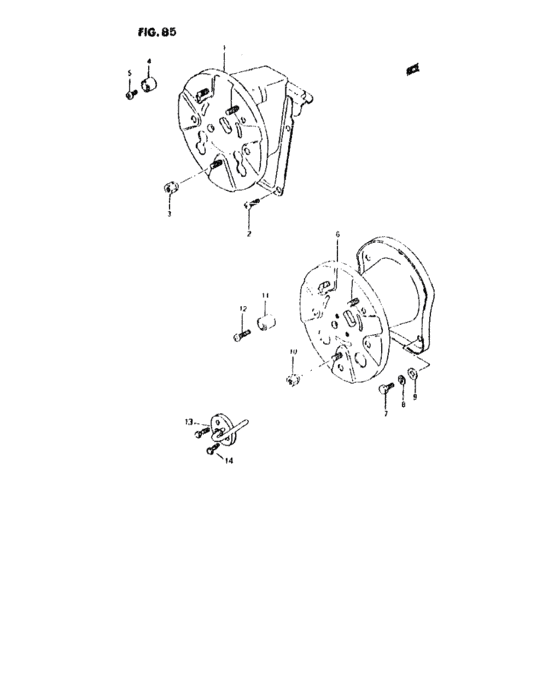

Fixation roue de secours (FIXATION ROUE DE SECOURS) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72810-B8002-200
Support roue mod-j
|
72810-B8002-200 |
— | ||
|
2
|
2
09125-08002-000
スクリュ,8X20
|
09125-08002-000 |
— | ||
| replacement | |||||
|
2
|
2
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
3
|
3
09159-A1200-900
Ecrou
|
09159-A1200-900 |
— | ||
|
4
|
4
09320-06006-000 CUSHION |
09320-06006-000 |
US $1.76 |
||
|
5
|
5
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
5
|
5
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
5
|
5
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
6
|
6
83960-B8015-000
Support roue mod-v
|
83960-B8015-000 |
— | ||
|
7
|
7
01104-10203-000
Vis
|
01104-10203-000 |
— | ||
|
8
|
8
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
9
|
9
08322-11103-000 ワッシャ |
08322-11103-000 |
US $1.07 |
||
| replacements | |||||
|
9
|
9
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
9
|
9
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
10
|
10
09159-A1200-900
Ecrou
|
09159-A1200-900 |
— | ||
|
11
|
11
09320-06006-000 CUSHION |
09320-06006-000 |
US $1.76 |
||
|
12
|
12
02112-06166-000
Screw
|
02112-06166-000 |
— | ||
| replacements | |||||
|
12
|
12
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
12
|
12
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
13
|
13
50023-00000-000
Anti-vol roue
|
50023-00000-000 |
— | ||
|
14
|
14
00000-A0036-500
Vis
|
00000-A0036-500 |
— | ||
