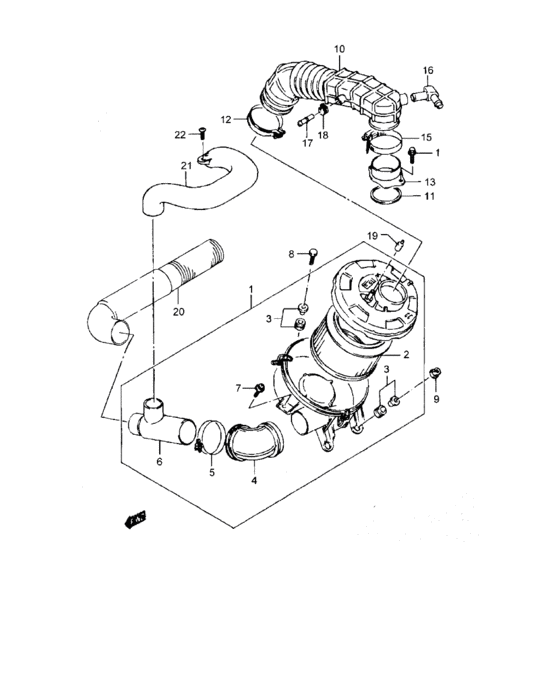

Air cleaner (GASOLINE: FUEL INJECTION) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-80C10-000
Cleaner assy,air
|
13700-80C10-000 |
— | ||
|
2
|
2
13780-83000-000 ELEMENT,AIR CLEANER |
13780-83000-000 |
from US $38.40 |
||
| replacement | |||||
|
2
|
2
99000-990YJ-002
Filter, air cle
|
99000-990YJ-002 |
— | ||
|
3
|
3
13813-61AT0-000 GROMMET SET,AIR CLEANER |
13813-61AT0-000 |
US $6.56 |
||
|
4
|
4
13731-83001-000 JOINT,WARM AIR VALVE |
13731-83001-000 |
from US $10.46 |
||
|
5
|
5
09402-70306-000
Clamp
|
09402-70306-000 |
— | ||
| replacement | |||||
|
5
|
5
09402-70306-XC0 CLAMP |
09402-70306-XC0 |
from US $8.87 |
||
|
6
|
6
13740-80C10-000
Pipe,air intake
|
13740-80C10-000 |
— | ||
|
7
|
7
02112-76163-000
Screw
|
02112-76163-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-7616A-000 SCREW |
02112-7616A-000 |
from US $0.96 |
||
|
8
|
8
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0625B-000 BoltBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
8
|
8
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
9
|
9
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
10
|
10
13831-80C10-000 CASE,AIR INTAKE |
13831-80C10-000 |
US $152 |
||
|
11
|
11
13879-81050-000
GASKET,CARB UPR
|
13879-81050-000 |
— | ||
|
12
|
12
09402-82202-000
Clamp
|
09402-82202-000 |
— | ||
| replacement | |||||
|
12
|
12
09402-82208-000 CLAMP |
09402-82208-000 |
from US $6.14 |
||
|
13
|
13
13851-80C00-000
JOINT,AIR INTAKE CASE
|
13851-80C00-000 |
— | ||
|
14
|
14
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
09402-82511-000 CLAMP |
09402-82511-000 |
from US $5.90 |
||
|
16
|
16
09367-14004-000 Pipe |
09367-14004-000 |
from US $3.62 |
||
|
17
|
17
09364-08006-000 UNION |
09364-08006-000 |
from US $3.76 |
||
|
18
|
18
17879-85C00-000
Clip, 3 way side
|
17879-85C00-000 |
— | ||
|
19
|
19
09251-07003-000 CAP(OD:11.5) |
09251-07003-000 |
from US $0.72 |
||
|
20
|
20
13870-83000-000 HOSE,COOL AIR |
13870-83000-000 |
from US $28.55 |
||
|
21
|
21
13760-80C00-000 RESONATOR |
13760-80C00-000 |
US $55.57 |
||
|
22
|
22
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
22
|
22
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
