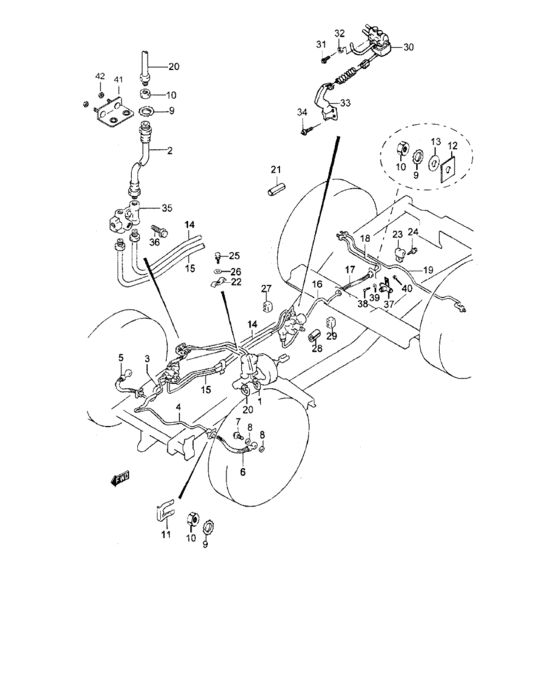

Brake piping (DIESEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-84CA0-000
Pipe, brake no.1
|
51410-84CA0-000 |
— | ||
|
2
|
2
51570-A70A3-000
Hose, cylinder flexible
|
51570-A70A3-000 |
— | ||
|
3
|
3
51420-84CA0-000
Pipe, brake no.2
|
51420-84CA0-000 |
— | ||
|
4
|
4
51430-84CA0-000
Pipe, brake no.3
|
51430-84CA0-000 |
— | ||
|
5
|
5
51540-84C00-000
Hose, front flexible rh
|
51540-84C00-000 |
— | ||
|
6
|
6
51550-84CA0-000
Hose, front flexible lh
|
51550-84CA0-000 |
— | ||
|
7
|
7
51592-85C00-000
Union bolt
|
51592-85C00-000 |
— | ||
|
8
|
8
51591-85C00-000
Gasket, oil pipe
|
51591-85C00-000 |
— | ||
|
9
|
9
09163-T1000-100
Rondelle 10 2
|
09163-T1000-100 |
— | ||
|
10
|
10
08310-T2410-600
Ecrou m - 10
|
08310-T2410-600 |
— | ||
|
11
|
11
51593-85C00-000
E ring
|
51593-85C00-000 |
— | ||
|
12
|
12
57911-B60A0-000
Plate,intermediate
|
57911-B60A0-000 |
— | ||
|
13
|
13
09160-10119-000 WASHER(10.5X22X1.6)Washer, wheel set |
09160-10119-000 |
from US $0.96 |
||
| replacement | |||||
|
13
|
13
09160-10143-000 WASHER(10.5X22X1.6) |
09160-10143-000 |
from US $0.91 |
||
|
14
|
14
51460-84CA0-000
Pipe, brake no.6
SHORT |
51460-84CA0-000 |
— | ||
|
14
|
14
51460-84CB0-000
Pipe, brake no.6
LONG |
51460-84CB0-000 |
— | ||
|
15
|
15
51340-84CA0-000
Pipe, brake no.14
SHORT |
51340-84CA0-000 |
— | ||
|
15
|
15
51340-84CB0-000
Pipe, brake no.14
LONG |
51340-84CB0-000 |
— | ||
|
16
|
16
51350-84CA0-000
Pipe, brake no.16
SHORT |
51350-84CA0-000 |
— | ||
|
16
|
16
51350-84CB0-000
Pipe, brake no.16
LONG |
51350-84CB0-000 |
— | ||
|
17
|
17
51580-B8013-000
Flexible arriere
|
51580-B8013-000 |
— | ||
|
18
|
18
51470-84CA0-000
Pipe, brake no.7
|
51470-84CA0-000 |
— | ||
|
19
|
19
51480-84CA0-000
Pipe, brake no.8
|
51480-84CA0-000 |
— | ||
|
20
|
20
51520-84CA0-000
Pipe, brake no.12
|
51520-84CA0-000 |
— | ||
|
21
|
21
51755-67000-000
New Genuine Part
SHORT |
51755-67000-000 |
— | ||
| replacement | |||||
|
21
|
21
51755-77200-000 PROTECTOR,BRAKE PIPESHORT |
51755-77200-000 |
US $4.56 |
||
|
22
|
22
09403-07312-000 CLAMPSHORT |
09403-07312-000 |
from US $0.97 |
||
|
23
|
23
51781-85C00-000
Clamp, pipe rear axle
|
51781-85C00-000 |
— | ||
|
24
|
24
51791-85C00-000
Screw
|
51791-85C00-000 |
— | ||
|
25
|
25
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-0612A-000 Bolt |
01500-0612A-000 |
from US $0.76 |
||
|
26
|
26
08321-01063-000
Washer, lock
|
08321-01063-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
27
|
27
51751-77E00-000 CLAMP,BRAKE PIPE |
51751-77E00-000 |
from US $2.24 |
||
|
28
|
28
51465-60A00-000 CLAMP,BRAKE PIPE FRAMELONG |
51465-60A00-000 |
US $2.29 |
||
|
29
|
29
15896-73A00-000 CLAMP,FUEL PIPELONG |
15896-73A00-000 |
US $1.92 |
||
|
30
|
30
51930-70AA0-000
VALVE ASSY,L.S.P.
|
51930-70AA0-000 |
— | ||
|
31
|
31
01550-08453-000
Bolt,cylinder h
|
01550-08453-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0845B-000 Bolt |
01550-0845B-000 |
from US $1.06 |
||
|
31
|
31
01550-0845A-000 BoltBolt, oil pump (s) |
01550-0845A-000 |
US $5.03 |
||
|
32
|
32
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
32
|
32
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
32
|
32
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
33
|
33
51951-70AA0-000
BRACKET,L.S.P VALVE
|
51951-70AA0-000 |
— | ||
|
34
|
34
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
34
|
34
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
35
|
35
51640-84C00-000
Joint, brake 5 way
|
51640-84C00-000 |
— | ||
|
36
|
36
01550-06303-000
Bolt (6x30)
|
01550-06303-000 |
— | ||
| replacement | |||||
|
36
|
36
01550-0630A-000 Bolt |
01550-0630A-000 |
from US $1.12 |
||
|
37
|
37
51640-86CB0-000
Joint, brake 3 way
|
51640-86CB0-000 |
— | ||
|
38
|
38
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
38
|
38
01500-0620A-000 Bolt |
01500-0620A-000 |
from US $0.76 |
||
|
39
|
39
08321-01063-000
Washer, lock
|
08321-01063-000 |
— | ||
| replacement | |||||
|
39
|
39
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
40
|
40
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
40
|
40
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
40
|
40
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
41
|
41
51712-84CA0-000
Bracket, main cyl. hose
DIESEL E. III |
51712-84CA0-000 |
— | ||
|
42
|
42
08316-10063-000
Nut
DIESEL E. III |
08316-10063-000 |
— | ||
| replacement | |||||
|
42
|
42
08316-1006B-000 NUTDIESEL E. III |
08316-1006B-000 |
from US $0.76 |
||
