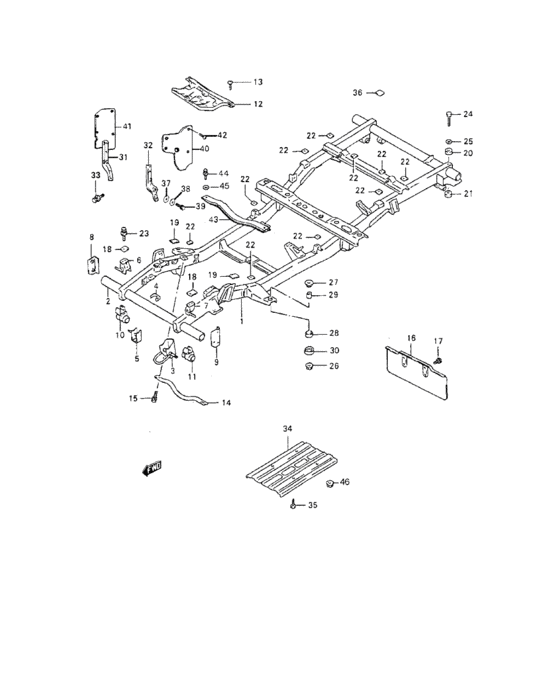

Chassis frame (LONG) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-84C50-000
Frame assy, chassis
GASOLINE |
57000-84C50-000 |
— | ||
|
1
|
1
57000-84CB0-000
Frame assy, chassis
T. DIESEL |
57000-84CB0-000 |
— | ||
|
1
|
1
57000-84CD0-000
Frame assy, chassis
DIESEL E. III |
57000-84CD0-000 |
— | ||
|
2
|
2
57211-80000-000 CROSSMEMBER,1ST |
57211-80000-000 |
US $163.20 |
||
|
3
|
3
57270-84C50-000
Bracket, 1st crossmember
GASOLINE |
57270-84C50-000 |
— | ||
|
3
|
3
57270-84CA0-000
Bracket, 1st crossmember
DIESEL |
57270-84CA0-000 |
— | ||
|
4
|
4
57551-80001-000
Bracket, engine splash panel
GASOLINE |
57551-80001-000 |
— | ||
|
5
|
5
57680-83001-000 BRACKET,STABILIZER |
57680-83001-000 |
US $79.49 |
||
|
6
|
6
57310-83000-000 BRACKET,1ST MOUNTING,R |
57310-83000-000 |
US $25.21 |
||
|
7
|
7
57320-83000-000 BRACKET,1ST MOUNTING,L |
57320-83000-000 |
US $25.21 |
||
|
8
|
8
57461-82CA0-000 BRACKET,FR BUMPER,R |
57461-82CA0-000 |
US $63.30 |
||
|
9
|
9
57471-82CA0-000 BRACKET,FR BUMPER,L |
57471-82CA0-000 |
US $60.72 |
||
|
10
|
10
57710-83301-000 HANGER,SPRING NO.1,R |
57710-83301-000 |
US $34.59 |
||
|
11
|
11
57720-83301-000 HANGER,SPRING NO.1,L |
57720-83301-000 |
US $34.59 |
||
|
12
|
12
71411-83002-000 PANEL,ENGINE SPLASHGASOLINE |
71411-83002-000 |
US $38.77 |
||
|
13
|
13
03241-06103-000
New Genuine Part
GASOLINE |
03241-06103-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0610A-000 SCREWGASOLINE |
03241-0610A-000 |
US $0.76 |
||
|
14
|
14
71441-83002-000
メンバ,サブ
GASOLINE |
71441-83002-000 |
— | ||
| replacement | |||||
|
14
|
14
71441-50C00-000 MEMBER,SUBGASOLINE |
71441-50C00-000 |
US $26.31 |
||
|
15
|
15
01500-10203-000
Plug, oil drain
GASOLINE |
01500-10203-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-1020B-000 BoltBolt, axle bearing housing GASOLINE |
01500-1020B-000 |
from US $0.76 |
||
|
16
|
16
71481-80031-000 BRACKET,RR LICENSE |
71481-80031-000 |
US $28.34 |
||
|
17
|
17
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
17
|
17
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
18
|
18
71491-80000-000
Cachet
45X45X15 |
71491-80000-000 |
— | ||
| replacement | |||||
|
18
|
18
71491-80002-000 PAD,BODY MOUNTING NO.145X45X15 |
71491-80002-000 |
from US $2.90 |
||
|
19
|
19
71493-83001-000 PAD,BODY MOUNTING NO.3 |
71493-83001-000 |
from US $1.80 |
||
|
20
|
20
71494-80001-000 PAD,BODY MOUNTING NO.49.5X40X8 |
71494-80001-000 |
US $1.60 |
||
|
21
|
21
71494-80202-000 PAD,BODY MOUNTING NO.415X40X8 |
71494-80202-000 |
US $11.52 |
||
|
21
|
21
71494-80201-000
パッド,ボディマウンチング,NO.4
DIESEL E. III |
71494-80201-000 |
— | ||
| replacement | |||||
|
21
|
21
71494-80202-000 PAD,BODY MOUNTING NO.4DIESEL E. III |
71494-80202-000 |
US $11.52 |
||
|
22
|
22
57321-52001-000 PAD,BODY MOUNTING NO.2T:5 |
57321-52001-000 |
US $2.24 |
||
|
22
|
22
71492-80010-000
Pad, body mount no.2
T:8 |
71492-80010-000 |
— | ||
| replacement | |||||
|
22
|
22
71492-80011-000 PAD,BODY MOUNTING NO.2T:8 |
71492-80011-000 |
US $8.64 |
||
|
23
|
23
09118-10041-000 BOLT(10X40)10X40 |
09118-10041-000 |
US $20.20 |
||
|
24
|
24
09100-10168-000 BOLT(10X37)10X37 |
09100-10168-000 |
from US $0.63 |
||
|
25
|
25
09160-10094-000 WASHER(10.5X30X3.2) |
09160-10094-000 |
from US $1.12 |
||
|
26
|
26
59119-85C00-000
Nut
|
59119-85C00-000 |
— | ||
|
27
|
27
71610-83000-000 CUSHION,BODY MTG UPPER |
71610-83000-000 |
from US $7.25 |
||
|
28
|
28
71620-83000-000 CUSHION,BODY MTG,LOWER |
71620-83000-000 |
from US $6.41 |
||
|
29
|
29
71631-83000-000
カラー,ボディマウンチング
|
71631-83000-000 |
— | ||
| replacement | |||||
|
29
|
29
71631-83001-000 COLLAR,BODY MOUNTING |
71631-83001-000 |
US $1.92 |
||
|
30
|
30
71632-83010-000
BOTTOM BODY MOUNTING
|
71632-83010-000 |
— | ||
| replacement | |||||
|
30
|
30
71632-83011-000 BOTTOM,BODY MOUNTING |
71632-83011-000 |
from US $2.72 |
||
|
31
|
31
71420-83001-000
Stay,radiator,r
GASOLINE |
71420-83001-000 |
— | ||
|
31
|
31
71410-84CA1-000
Stay, radiator rh
T. DIESEL |
71410-84CA1-000 |
— | ||
|
31
|
31
71410-84CB0-000
Stay, radiator rh
DIESEL E. III |
71410-84CB0-000 |
— | ||
|
32
|
32
71431-84C50-000
Stay, radiator lh
GASOLINE |
71431-84C50-000 |
— | ||
|
32
|
32
71420-84CA1-000
Stay, radiator lh
T. DIESEL |
71420-84CA1-000 |
— | ||
|
32
|
32
71420-84CB0-000
Stay, radiator lh
DIESEL E. III |
71420-84CB0-000 |
— | ||
|
33
|
33
01580-08203-000
Bolt, rear
|
01580-08203-000 |
— | ||
| replacement | |||||
|
33
|
33
01580-0820A-000 Bolt |
01580-0820A-000 |
from US $0.91 |
||
|
34
|
34
75431-A8030-000
Panel, heater protector
|
75431-A8030-000 |
— | ||
|
35
|
35
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
35
|
35
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
35
|
35
03141-06163-000
Screw 6x16
DIESEL E. III |
03141-06163-000 |
— | ||
| replacement | |||||
|
35
|
35
03141-0616A-000 SCREWDIESEL E. III |
03141-0616A-000 |
from US $0.76 |
||
|
36
|
36
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole CUT AS REQUIRED |
84761-50X50-000 |
from US $6.72 |
||
|
37
|
37
08322-11083-000 WasherWasher DIESEL |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
37
|
37
08322-0108B-000 WASHERDIESEL |
08322-0108B-000 |
from US $0.96 |
||
|
37
|
37
08322-0108A-000 WASHERDIESEL |
08322-0108A-000 |
from US $0.96 |
||
|
38
|
38
08321-01083-000
Lock washer
DIESEL |
08321-01083-000 |
— | ||
| replacements | |||||
|
38
|
38
08321-0108B-000 WASHER,LOCKDIESEL |
08321-0108B-000 |
from US $0.76 |
||
|
38
|
38
08321-0108A-000 WASHER,LOCKDIESEL |
08321-0108A-000 |
from US $0.96 |
||
|
39
|
39
01550-08203-000
Bolt
DIESEL |
01550-08203-000 |
— | ||
| replacements | |||||
|
39
|
39
01550-0820B-000 BoltDIESEL |
01550-0820B-000 |
from US $0.91 |
||
|
39
|
39
01550-0820A-000 BoltBolt, funnel bracket DIESEL |
01550-0820A-000 |
from US $1.12 |
||
|
40
|
40
95621-84CA0-000
Insulator, left
DIESEL |
95621-84CA0-000 |
— | ||
|
41
|
41
95622-84CA0-000
Insulator, right
DIESEL |
95622-84CA0-000 |
— | ||
|
42
|
42
59934-85C00-000
Clip, insulator
DIESEL |
59934-85C00-000 |
— | ||
|
43
|
43
71441-84CA0-000
Member sub
DIESEL |
71441-84CA0-000 |
— | ||
|
44
|
44
01500-10203-000
Plug, oil drain
DIESEL |
01500-10203-000 |
— | ||
| replacement | |||||
|
44
|
44
01500-1020B-000 BoltBolt, axle bearing housing DIESEL |
01500-1020B-000 |
from US $0.76 |
||
|
45
|
45
08322-11103-000 WASHER 105X18X16DIESEL |
08322-11103-000 |
from US $0.97 |
||
| replacements | |||||
|
45
|
45
08322-0110A-000 WASHERWasher, knuckle end DIESEL |
08322-0110A-000 |
from US $0.80 |
||
|
45
|
45
08322-0110B-000 WASHERWasher, knuckle end DIESEL |
08322-0110B-000 |
from US $0.76 |
||
|
46
|
46
08316-10063-000
Nut
DIESEL E. III |
08316-10063-000 |
— | ||
| replacement | |||||
|
46
|
46
08316-1006B-000 NUTDIESEL E. III |
08316-1006B-000 |
from US $0.80 |
||
