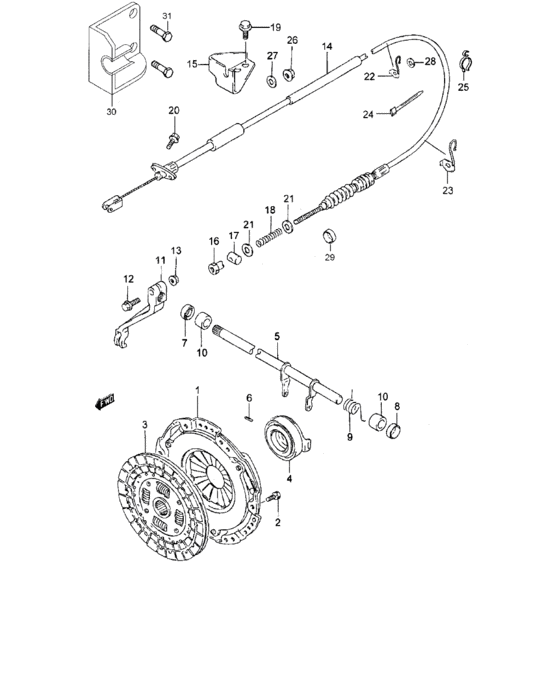

Clutch (CLUTCH) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-A8302-000
Cover assy, clutch
GASOLINE |
22100-A8302-000 |
— | ||
|
1
|
1
22100-84CA0-000
Cover assy, clutch
DIESEL |
22100-84CA0-000 |
— | ||
|
2
|
2
01107-08163-000
Bolt m8x1.25x16
GASOLINE |
01107-08163-000 |
— | ||
| replacements | |||||
|
2
|
2
01500-0816B-000 BoltBolt GASOLINE |
01500-0816B-000 |
from US $0.96 |
||
|
2
|
2
01500-08163-000
Bolt
GASOLINE |
01500-08163-000 |
— | ||
|
2
|
2
01550-86CC0-000
Bolt
DIESEL |
01550-86CC0-000 |
— | ||
|
3
|
3
22400-A8302-000
Disk, clutch
GASOLINE |
22400-A8302-000 |
— | ||
|
3
|
3
22400-86CB0-000
Disk, clutch
DIESEL |
22400-86CB0-000 |
— | ||
|
4
|
4
23265-84C00-000
Bearing, clutch release
|
23265-84C00-000 |
— | ||
|
5
|
5
23260-83013-000 SHAFT,CLUTCH RELEASE |
23260-83013-000 |
US $22.57 |
||
| replacement | |||||
|
5
|
5
23260-83014-000 SHAFT,CLUTCH RELEASE |
23260-83014-000 |
US $116 |
||
|
5
|
5
23260-84CA0-000
Shaft, clutch release
DIESEL E.III |
23260-84CA0-000 |
— | ||
|
6
|
6
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock |
09205-03019-000 |
from US $0.81 |
||
|
7
|
7
09284-14005-000
オイルシール,14X22X6
|
09284-14005-000 |
— | ||
| replacements | |||||
|
7
|
7
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $3.87 |
||
|
7
|
7
09283-14005-000
SEAL,OIL(14X22X7.3)
|
09283-14005-000 |
— | ||
|
8
|
8
09241-22003-000 PLUG |
09241-22003-000 |
from US $1.24 |
||
|
9
|
9
09448-20006-000 SPRING |
09448-20006-000 |
from US $1.17 |
||
|
10
|
10
09300-14017-000 BUSH(14X22X15) |
09300-14017-000 |
from US $2.13 |
||
|
11
|
11
23266-83002-000 ARM,CLUTCH RELEASEGASOLINE |
23266-83002-000 |
from US $26.03 |
||
|
11
|
11
23266-84CA0-000
Arm, clutch release
T. DIESEL |
23266-84CA0-000 |
— | ||
|
11
|
11
23266-84CB0-000
Arm, clutch release
DIESEL E. III |
23266-84CB0-000 |
— | ||
|
12
|
12
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
12
|
12
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
13
|
13
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
13
|
13
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
14
|
14
23710-A8302-300
Cable assy, clutch
GASOLINE |
23710-A8302-300 |
— | ||
|
14
|
14
23710-85C60-000
Cable assy, clutch
T. DIESEL |
23710-85C60-000 |
— | ||
|
14
|
14
23710-85C00-000
Cable assy, clutch
DIESEL E. III |
23710-85C00-000 |
— | ||
|
15
|
15
23911-83002-000
ブラケット,クラッチケーブル
GASOLINE |
23911-83002-000 |
— | ||
| replacement | |||||
|
15
|
15
23911-83003-000 BRACKET,CLUTCH CABLEGASOLINE |
23911-83003-000 |
US $13.51 |
||
|
15
|
15
23910-84CA1-000
Bracket, clutch cable
T. DIESEL |
23910-84CA1-000 |
— | ||
|
16
|
16
09150-06010-000 NUTGASOLINE |
09150-06010-000 |
from US $1.82 |
||
|
16
|
16
23921-86CA0-000
Nut
DIESEL |
23921-86CA0-000 |
— | ||
|
17
|
17
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.26 |
||
|
18
|
18
09440-08026-000 SPRING |
09440-08026-000 |
from US $0.41 |
||
|
19
|
19
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
19
|
19
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
20
|
20
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
21
|
21
09160-84C00-000
Washer
|
09160-84C00-000 |
— | ||
|
22
|
22
23915-60A00-000
Clamp, Cable
T. DIESEL |
23915-60A00-000 |
— | ||
| replacement | |||||
|
22
|
22
23915-60A20-000 CLAMP,CLUTCH CABLE LEFT NO.1T. DIESEL |
23915-60A20-000 |
US $3.60 |
||
|
23
|
23
23915-84CA0-000
Clamp
T. DIESEL |
23915-84CA0-000 |
— | ||
|
24
|
24
00009-00000-000
Clamp,wire electro fan
GASOLINE |
00009-00000-000 |
— | ||
|
25
|
25
09408-00161-000 CLAMPDIESEL |
09408-00161-000 |
US $2.64 |
||
|
26
|
26
21344-86CA0-000
Nut, upper
T. DIESEL |
21344-86CA0-000 |
— | ||
|
27
|
27
08322-11103-000 WASHER 105X18X16T. DIESEL |
08322-11103-000 |
from US $0.97 |
||
| replacements | |||||
|
27
|
27
08322-0110A-000 WASHERWasher, knuckle end T. DIESEL |
08322-0110A-000 |
from US $0.80 |
||
|
27
|
27
08322-0110B-000 WASHERWasher, knuckle end T. DIESEL |
08322-0110B-000 |
from US $0.76 |
||
|
28
|
28
02047-84C50-000
Grommet
T. DIESEL |
02047-84C50-000 |
— | ||
|
29
|
29
23912-84CA0-000
Cap, protector clutch cable
DIESEL |
23912-84CA0-000 |
— | ||
|
30
|
30
23910-84CB0-000
Bracket, clutch cable
DIESEL E. III |
23910-84CB0-000 |
— | ||
|
31
|
31
17860-86CB0-000
Bolt
DIESEL E. III |
17860-86CB0-000 |
— | ||
