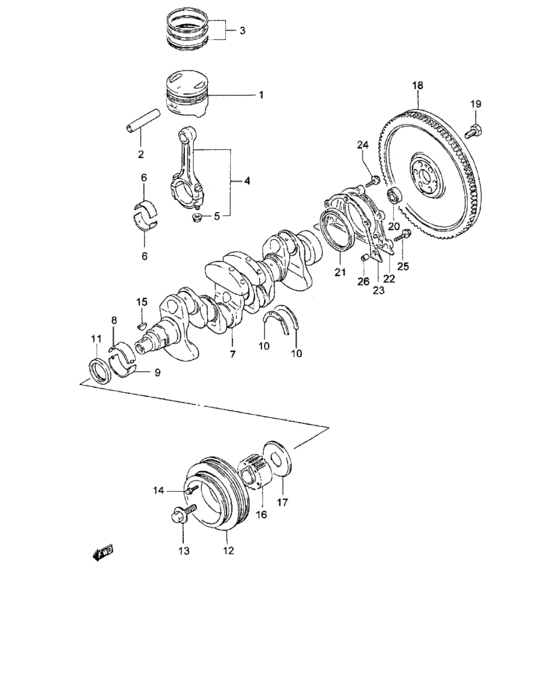

Crankshaft (GASOLINE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-61840-025
ピストンセット,OS:0.25
(OS:0.25) |
12100-61840-025 |
— | ||
|
2
|
2
12151-A8200-000
Piston Pin
|
12151-A8200-000 |
— | ||
|
3
|
3
12140-82X50-000 RING SET,PISTONRing set, piston (STD) |
12140-82X50-000 |
from US $32.20 |
||
|
3
|
3
12140-82X50-025 RING SET,PISTON OS:0.25Ring set, piston (os:0.25) (OS:0.25) |
12140-82X50-025 |
from US $38.79 |
||
|
3
|
3
12140-82X50-050 RING SET,PISTON OS:0.50Ring set, piston (os:0.50) (OS:0.5) |
12140-82X50-050 |
from US $32.69 |
||
|
4
|
4
12160-86002-000
Connrod assy
|
12160-86002-000 |
— | ||
| replacement | |||||
|
4
|
4
12160-86021-000 CONNROD ASSY |
12160-86021-000 |
US $217.60 |
||
|
5
|
5
09159-08033-000 NUT |
09159-08033-000 |
from US $0.97 |
||
|
6
|
6
12181-84C00-0A0
Bearing , connecting
GREEN |
12181-84C00-0A0 |
— | ||
|
6
|
6
12181-84C00-0B0
Bearing , connecting
WHITE |
12181-84C00-0B0 |
— | ||
|
7
|
7
12221-63B00-000
CRANK SHAFT ASSY
|
12221-63B00-000 |
— | ||
| replacement | |||||
|
7
|
7
12221-83E00-000 CRANKSHAFT |
12221-83E00-000 |
from US $508.52 |
||
|
8
|
8
12341-84C00-0A0
Bearing, crankshaft upper
GREEN |
12341-84C00-0A0 |
— | ||
|
8
|
8
12341-84C00-0C0
Bearing, crankshaft upper
WHITE |
12341-84C00-0C0 |
— | ||
|
9
|
9
12345-84C00-0A0
Bearing, crankshaft lower
GREEN |
12345-84C00-0A0 |
— | ||
|
10
|
10
12351-84C00-000
Bearing , crank thrust
|
12351-84C00-000 |
— | ||
|
11
|
11
09283-32042-000 SEAL,OIL(32X47X6)32X47X6 |
09283-32042-000 |
from US $8.51 |
||
|
12
|
12
12611-80C10-000 PULLEY,CRANKSHAFT |
12611-80C10-000 |
from US $105.82 |
||
|
13
|
13
12619-53B01-000 BOLT,CRANK PULLEY |
12619-53B01-000 |
from US $8 |
||
|
14
|
14
09103-06185-000 BOLT(6X20)Bolt (6x20) 6X20 |
09103-06185-000 |
from US $1.28 |
||
|
15
|
15
08341-31059-000 KEYKey |
08341-31059-000 |
from US $1.53 |
||
|
16
|
16
12630-72F00-000 PULLEY,CRANK TIMING BELT |
12630-72F00-000 |
from US $29.52 |
||
|
17
|
17
12635-78401-000 GUIDE,TIMING BELT |
12635-78401-000 |
from US $5.28 |
||
|
18
|
18
12620-83000-000 FLYWHEEL |
12620-83000-000 |
US $220.07 |
||
|
19
|
19
09103-10068-000
Bolt
10X18.5 |
09103-10068-000 |
— | ||
| replacement | |||||
|
19
|
19
09100-10275-000 BOLT(10X18.5)10X18.5 |
09100-10275-000 |
from US $1.44 |
||
|
20
|
20
12623-85C00-000
Bearing, input shaft
|
12623-85C00-000 |
— | ||
|
21
|
21
09283-68002-000 SEAL,OIL(68X86X8)68X86X8 |
09283-68002-000 |
from US $25.83 |
||
|
22
|
22
11341-85C00-000
Housing, oil seal
|
11341-85C00-000 |
— | ||
|
23
|
23
11349-85C00-000
Gasket
|
11349-85C00-000 |
— | ||
|
24
|
24
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
25
|
25
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0625B-000 BoltBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
25
|
25
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
26
|
26
04211-A0910-900
Coupille centrage
|
04211-A0910-900 |
— | ||
