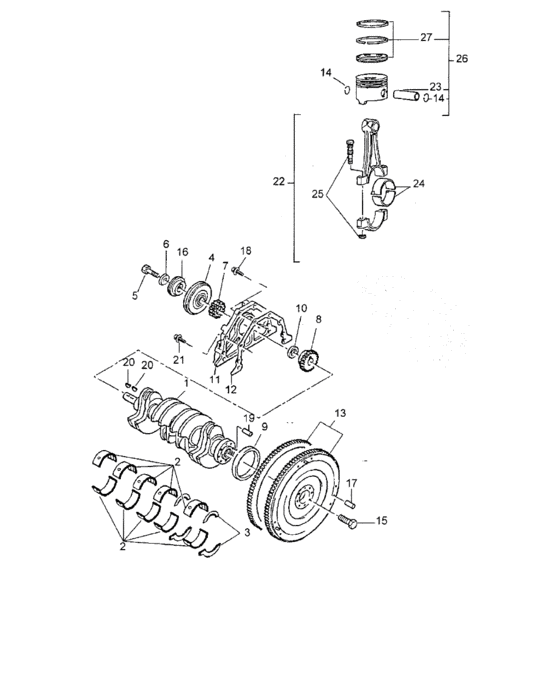

Crankshaft (TURBO DIESEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12221-86CB0-000
Crankshaft
|
12221-86CB0-000 |
— | ||
|
2
|
2
12340-86CB0-000
Bearing set, crankshaft
STD |
12340-86CB0-000 |
— | ||
|
2
|
2
12340-86CA1-000
Bearing set, crankshaft
OS: 0.30 |
12340-86CA1-000 |
— | ||
|
3
|
3
12351-86CA0-000
Set of 2 half flanges
STD |
12351-86CA0-000 |
— | ||
|
3
|
3
12351-86CA1-000
Set of 2 half flanges
OS: 0.10 |
12351-86CA1-000 |
— | ||
|
3
|
3
12351-86CA2-000
Set of 2 half flanges
OS: 0.15 |
12351-86CA2-000 |
— | ||
|
3
|
3
12351-86CA3-000
Set of 2 half flanges
OS: 0.20 |
12351-86CA3-000 |
— | ||
|
4
|
4
12610-86CA0-000
Pulley, cranckshaft
|
12610-86CA0-000 |
— | ||
|
5
|
5
12636-86CA0-000
Pulley screw
14x150-70 |
12636-86CA0-000 |
— | ||
|
6
|
6
12633-86CA0-000
Washer
? 14 |
12633-86CA0-000 |
— | ||
|
7
|
7
12631-86CA1-000
Gear
NT: 21 |
12631-86CA1-000 |
— | ||
|
8
|
8
12632-86CB2-000
Oil pump gear
NT: 26 |
12632-86CB2-000 |
— | ||
|
9
|
9
11314-86CA1-000
Seal, oil
90x110-7 |
11314-86CA1-000 |
— | ||
|
10
|
10
11228-86CA3-000
Seal, oil
42x62-7 |
11228-86CA3-000 |
— | ||
|
11
|
11
11312-86CA0-000
Plate,oil seal
|
11312-86CA0-000 |
— | ||
|
12
|
12
11313-86CA0-000
Gasket
|
11313-86CA0-000 |
— | ||
|
13
|
13
12620-84CA0-000
Flywheel assy
|
12620-84CA0-000 |
— | ||
|
14
|
14
12161-86CB0-000
Clip
28.5x26.5-1.7 |
12161-86CB0-000 |
— | ||
|
15
|
15
12625-84CA0-000
Flywheel screw
9x100-22 |
12625-84CA0-000 |
— | ||
|
16
|
16
11031-86CA0-000
Pulley
|
11031-86CA0-000 |
— | ||
|
17
|
17
04211-84CA0-000
Pin, flw. housing
|
04211-84CA0-000 |
— | ||
|
18
|
18
11119-86CA1-000
Screw hrdl
7x100-25 |
11119-86CA1-000 |
— | ||
|
19
|
19
M4211-86CA3-000
Pin
8x17.5 |
M4211-86CA3-000 |
— | ||
|
20
|
20
12230-86CA0-000
Key
13x6-7 |
12230-86CA0-000 |
— | ||
|
21
|
21
11119-86CA2-000
Bolt
7x100-40 |
11119-86CA2-000 |
— | ||
|
22
|
22
12160-86CB1-000
Set of 4 con.rods
|
12160-86CB1-000 |
— | ||
|
23
|
23
12162-86CB0-000
Bush
|
12162-86CB0-000 |
— | ||
|
24
|
24
12180-86CA0-000
Set of 8 half bearing
STD |
12180-86CA0-000 |
— | ||
|
24
|
24
12180-86CA1-000
Set of 8 half bearing
OS: 0.30 |
12180-86CA1-000 |
— | ||
|
25
|
25
00000-A0131-100
Bolt
|
00000-A0131-100 |
— | ||
|
26
|
26
12111-86CB0-000
Set of 4 pistons
STD |
12111-86CB0-000 |
— | ||
|
26
|
26
12111-86CB2-000
Set of 4 pistons
OS: 0.50 |
12111-86CB2-000 |
— | ||
|
26
|
26
12111-86CB3-000
Set of 4 pistons
OS: 0.80 |
12111-86CB3-000 |
— | ||
|
27
|
27
12140-86CB0-000
Set of 3 pistons ring
STD |
12140-86CB0-000 |
— | ||
|
27
|
27
12140-86CB2-000
Set of 3 pistons ring
OS: 0.50 |
12140-86CB2-000 |
— | ||
|
27
|
27
12140-86CB3-000
Set of 3 pistons ring
OS: 0.80 |
12140-86CB3-000 |
— |
