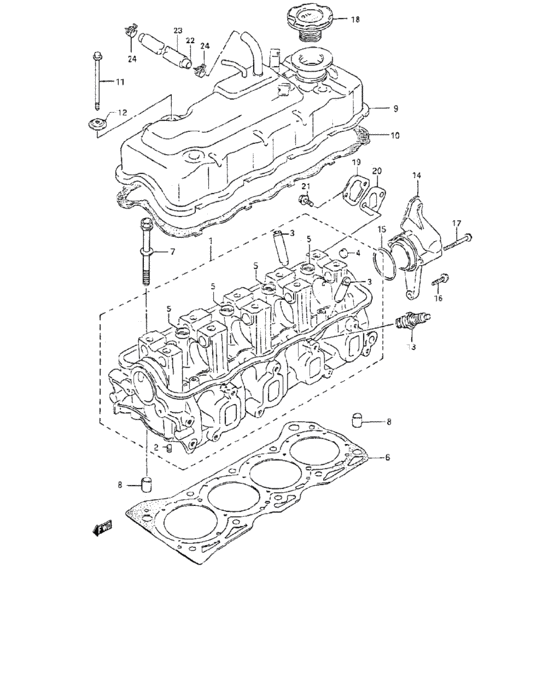

Cylinder head (GASOLINE:FUEL INJECTION) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-82602-000 Head,cylinder |
11110-82602-000 |
US $546.98 |
||
|
2
|
2
11112-73002-000
Plug, oil venturi
|
11112-73002-000 |
— | ||
| replacement | |||||
|
2
|
2
11112-73010-000 PLUG,OIL VENTURI |
11112-73010-000 |
from US $1.60 |
||
|
3
|
3
11115-82000-001 GUIDE,VALVEGuide, valve |
11115-82000-001 |
from US $12.80 |
||
|
4
|
4
09241-12002-000 PLUG |
09241-12002-000 |
from US $1.26 |
||
|
5
|
5
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.60 |
||
|
6
|
6
11141-86502-000 GASKET,CYL HEADGasket, cylinder head |
11141-86502-000 |
from US $56.30 |
||
|
7
|
7
11119-85C00-000
Bolt
|
11119-85C00-000 |
— | ||
|
8
|
8
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
9
|
9
11170-61A11-000
Cover, cylinder head
|
11170-61A11-000 |
— | ||
|
10
|
10
11189-85C00-000
Gasket, Cylinder Head Cover
|
11189-85C00-000 |
— | ||
|
11
|
11
01517-06803-000
Bolt
|
01517-06803-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0680B-000 Bolt |
01550-0680B-000 |
from US $1.22 |
||
|
12
|
12
11180-82010-000 WASHER,CYL HEAD COVER SEAL |
11180-82010-000 |
from US $4.07 |
||
|
13
|
13
09482-00155-000 PLUG,SPARK(NGK BPR5ES) |
09482-00155-000 |
from US $2.78 |
||
|
13
|
13
09482-00409-000 PLUG,SPARK(W20EPR-U) |
09482-00409-000 |
US $8.65 |
||
|
14
|
14
11161-A8300-000
Case, distributor
|
11161-A8300-000 |
— | ||
|
15
|
15
11162-71C10-000 O-RING,CASEO ring, dli sensor case |
11162-71C10-000 |
from US $2.24 |
||
|
16
|
16
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0625B-000 BoltBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
16
|
16
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
17
|
17
01550-06503-000
Bolt
|
01550-06503-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0650B-000 Bolt |
01550-0650B-000 |
US $15.50 |
||
|
17
|
17
01550-0650A-000 BoltBolt (6x50) |
01550-0650A-000 |
from US $0.96 |
||
|
18
|
18
16920-60A02-000 Cap,oil filler |
16920-60A02-000 |
from US $17.35 |
||
|
19
|
19
15317-77901-000
Plate,fuel pump
|
15317-77901-000 |
— | ||
| replacement | |||||
|
19
|
19
15317-7790V-000 PLATE,FUEL PUMP |
15317-7790V-000 |
US $5.81 |
||
|
20
|
20
15319-C63B0-000
Gasket, fuel pump
|
15319-C63B0-000 |
— | ||
|
21
|
21
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
21
|
21
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
22
|
22
09355-13207-170
Hose, breather
|
09355-13207-170 |
— | ||
|
23
|
23
11194-80C00-000
PROTECTOR,BREATHER HOSE
|
11194-80C00-000 |
— | ||
|
24
|
24
11196-85C10-000
Clip, heater hose
|
11196-85C10-000 |
— | ||
