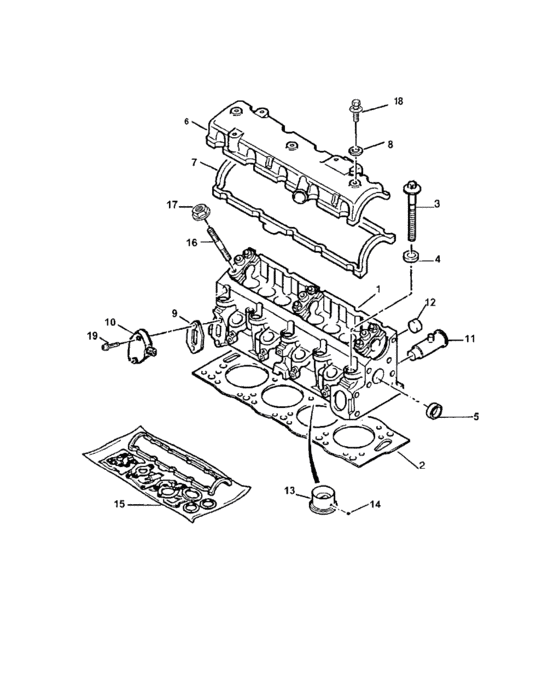

Cylinder head (TURBO DIESEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11111-86CB1-000
Cylinder head
|
11111-86CB1-000 |
— | ||
|
2
|
2
11141-86CB0-000
Cyl.head gasket
EP 1,40 |
11141-86CB0-000 |
— | ||
|
2
|
2
11141-86CB1-000
Cyl.head gasket
EP 1,44 |
11141-86CB1-000 |
— | ||
|
2
|
2
11141-86CB2-000
Cyl.head gasket
EP 1,48 |
11141-86CB2-000 |
— | ||
|
2
|
2
11141-86CB3-000
Cyl.head gasket
EP 1,52 |
11141-86CB3-000 |
— | ||
|
3
|
3
11227-86CB3-000
Screw
12x1,50-123 |
11227-86CB3-000 |
— | ||
|
4
|
4
09160-86CA0-000
Washer
13x24-3 |
09160-86CA0-000 |
— | ||
|
5
|
5
M9241-86CA0-000
Plug
? 27 |
M9241-86CA0-000 |
— | ||
|
6
|
6
11170-86CA0-000
Cover
|
11170-86CA0-000 |
— | ||
|
7
|
7
11189-86CA0-000
Gasket,cylinder head cover
|
11189-86CA0-000 |
— | ||
|
8
|
8
09160-86CB0-000
Washer
|
09160-86CB0-000 |
— | ||
|
9
|
9
11124-86CA1-000
Gasket
|
11124-86CA1-000 |
— | ||
|
10
|
10
11122-86CA1-000
Gasket
|
11122-86CA1-000 |
— | ||
|
11
|
11
11226-86CA1-000
Socket
23x85.5 |
11226-86CA1-000 |
— | ||
|
12
|
12
M9241-86CA0-000
Plug
? 27 |
M9241-86CA0-000 |
— | ||
|
12
|
12
M9241-86CA1-000
Plug
? 27,5 |
M9241-86CA1-000 |
— | ||
|
12
|
12
M9241-86CA2-000
Plug
? 28,5 |
M9241-86CA2-000 |
— | ||
|
13
|
13
10000-86CA0-000
Swirl chamber
? 32,45 |
10000-86CA0-000 |
— | ||
|
13
|
13
10000-86CA1-000
Swirl chamber
? 32,65 |
10000-86CA1-000 |
— | ||
|
14
|
14
06112-86CA0-000
Ball
? 3 |
06112-86CA0-000 |
— | ||
|
15
|
15
11401-86CA1-000
Set of gaskets
|
11401-86CA1-000 |
— | ||
|
16
|
16
M1421-86CA0-000
Stud
8x125 |
M1421-86CA0-000 |
— | ||
|
17
|
17
11121-86CA0-000
Collar nut
8x125 |
11121-86CA0-000 |
— | ||
|
18
|
18
01517-86CA0-000
Screw h
6x100-25 |
01517-86CA0-000 |
— | ||
|
19
|
19
M9103-86CA0-000
Screw chc
7x100-31 |
M9103-86CA0-000 |
— |
