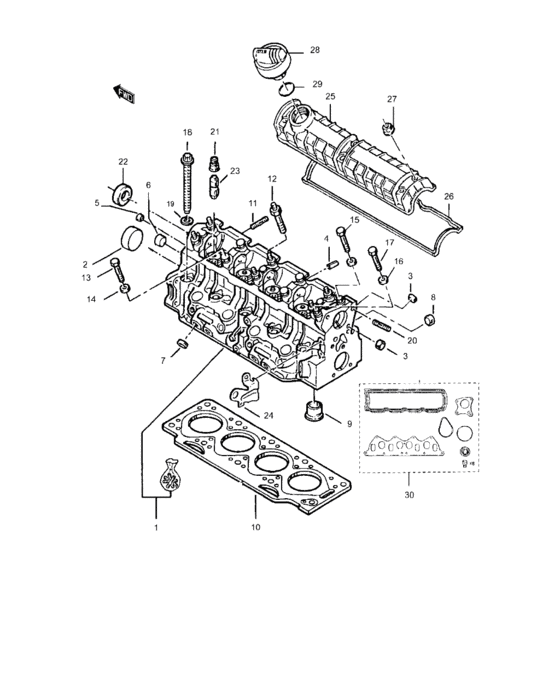

Cylinder head (DIESEL EURO III) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11111-84CT0-000
Cylinder head
|
11111-84CT0-000 |
— | ||
|
2
|
2
M9241-84CT1-000
Plug
? 38 |
M9241-84CT1-000 |
— | ||
|
3
|
3
M9241-84CT4-000
Plug
? 10 |
M9241-84CT4-000 |
— | ||
|
4
|
4
M4211-84CT0-000
Pin
6X12.5 |
M4211-84CT0-000 |
— | ||
|
5
|
5
M9241-84CT7-000
Plug
? 12 |
M9241-84CT7-000 |
— | ||
|
6
|
6
M9241-84CT6-000
Plug
? 22 |
M9241-84CT6-000 |
— | ||
|
7
|
7
M9241-84CT3-000
Plug
? 16 |
M9241-84CT3-000 |
— | ||
|
8
|
8
M9241-84CT5-000
Plug
? 20.7 |
M9241-84CT5-000 |
— | ||
|
9
|
9
11161-84CT0-000
Swirl chamber
|
11161-84CT0-000 |
— | ||
|
10
|
10
11141-84CT0-000
Cylinder head gasket
|
11141-84CT0-000 |
— | ||
|
11
|
11
01421-84CT0-000
Stud
8X125-30 |
01421-84CT0-000 |
— | ||
|
12
|
12
11148-84CT0-000
Stud
M.6 |
11148-84CT0-000 |
— | ||
|
13
|
13
00082-84CT0-000
Bolt
8X125-40 |
00082-84CT0-000 |
— | ||
|
14
|
14
02038-84CT0-000
Plain washer
8X18-2.5 |
02038-84CT0-000 |
— | ||
|
15
|
15
09116-84CT1-000
Bolt
6X100-40 |
09116-84CT1-000 |
— | ||
|
16
|
16
09160-84CT1-000
Washer
6-14 |
09160-84CT1-000 |
— | ||
|
17
|
17
09116-84CT2-000
Bolt
6X100-55 |
09116-84CT2-000 |
— | ||
|
18
|
18
11227-84CT2-000
Bolt, cylinder head
|
11227-84CT2-000 |
— | ||
|
19
|
19
09160-84CT2-000
Washer
? 12 |
09160-84CT2-000 |
— | ||
|
20
|
20
01421-84CT1-000
Stud
8X125-20 |
01421-84CT1-000 |
— | ||
|
21
|
21
09289-84CT0-000
Seal, valve guide
|
09289-84CT0-000 |
— | ||
|
22
|
22
11378-84CT0-000
Seal, camshaft lip
|
11378-84CT0-000 |
— | ||
|
23
|
23
12919-84CT0-000
Valve guide
|
12919-84CT0-000 |
— | ||
|
24
|
24
11851-84CT0-000
Hook engine
|
11851-84CT0-000 |
— | ||
|
25
|
25
11170-84CT0-000
Cover, cylinder head
|
11170-84CT0-000 |
— | ||
|
26
|
26
11189-84CT0-000
Gasket, Cylinder Head Cover
|
11189-84CT0-000 |
— | ||
|
27
|
27
08313-84CT0-000
Nut
6X100 |
08313-84CT0-000 |
— | ||
|
28
|
28
16920-84CT0-000
Oil filer cap
|
16920-84CT0-000 |
— | ||
|
29
|
29
11228-84CT3-000
Gasket, oil filer cap
|
11228-84CT3-000 |
— | ||
|
30
|
30
11401-84CT1-000
Gasket cylinder head kit
|
11401-84CT1-000 |
— |
