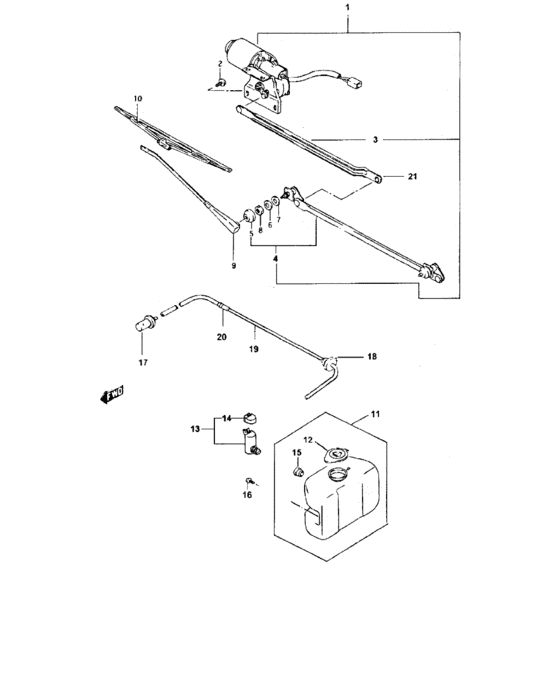

Front windscreen wiper and washer (FRONT WINDSCREEN WIPER AND WASHER) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38100-84C01-000
Windscreen wiper motor
|
38100-84C01-000 |
— | ||
|
2
|
2
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
2
|
2
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
3
|
3
00000-A0011-800
Rod
|
00000-A0011-800 |
— | ||
|
4
|
4
38102-A8003-100
Connecting rod assy
|
38102-A8003-100 |
— | ||
|
5
|
5
38274-78000-000 CAP |
38274-78000-000 |
from US $1.76 |
||
|
6
|
6
38271-71310-000
ワッシャ
|
38271-71310-000 |
— | ||
| replacements | |||||
|
6
|
6
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
from US $2.56 |
||
|
6
|
6
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
from US $1.58 |
||
|
7
|
7
38272-71310-000
パッキン
|
38272-71310-000 |
— | ||
| replacements | |||||
|
7
|
7
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
from US $1.58 |
||
|
7
|
7
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
from US $2.56 |
||
|
8
|
8
38278-67011-000 NUT |
38278-67011-000 |
US $1.60 |
||
|
9
|
9
38310-A8003-000
Brass
|
38310-A8003-000 |
— | ||
|
10
|
10
38340-A6364-100
Blade
|
38340-A6364-100 |
— | ||
|
11
|
11
38450-80000-000 TANK ASSY,WASHER |
38450-80000-000 |
from US $22.77 |
||
|
12
|
12
38452-80000-000
CAP WASHER TANK
|
38452-80000-000 |
— | ||
| replacement | |||||
|
12
|
12
38452-65D00-000 CAP,WASHER TANK |
38452-65D00-000 |
from US $1.92 |
||
|
13
|
13
38410-66113-000 PUMP ASSY,WASHERPump assy, washer |
38410-66113-000 |
from US $59.20 |
||
|
14
|
14
38837-79500-000 CAP,WASHER MOTOR |
38837-79500-000 |
US $1.60 |
||
|
15
|
15
38453-75000-000 GROMMET |
38453-75000-000 |
from US $1.60 |
||
|
16
|
16
02142-06126-000
Screw, front fender rear
|
02142-06126-000 |
— | ||
| replacements | |||||
|
16
|
16
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
16
|
16
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
17
|
17
38480-80000-000 NOZZLE ASSY,FR WASHER |
38480-80000-000 |
from US $18.63 |
||
|
18
|
18
82191-A8000-200
Passacable
|
82191-A8000-200 |
— | ||
|
19
|
19
38400-C8000-000
Tuyanterie eau
|
38400-C8000-000 |
— | ||
|
20
|
20
00000-A0028-200
Soupapee
|
00000-A0028-200 |
— | ||
|
21
|
21
00000-A0129-900
Connector
|
00000-A0129-900 |
— | ||
