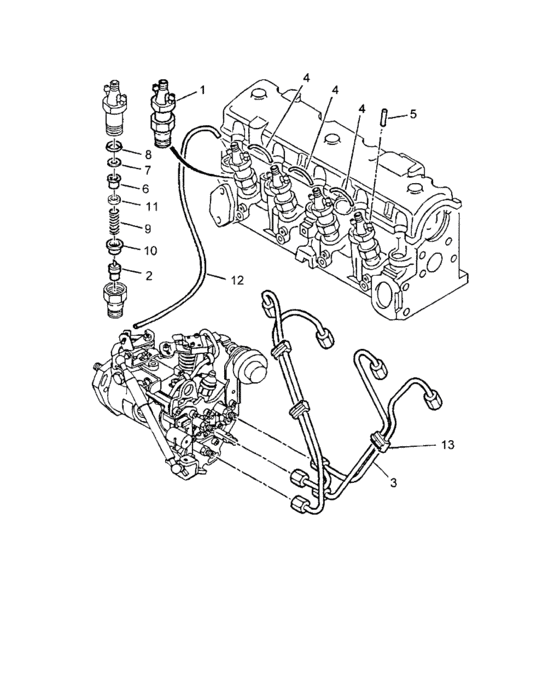

Fuel delivery (TURBO DIESEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15311-86CB0-000
Injector holder
|
15311-86CB0-000 |
— | ||
|
2
|
2
15312-86CB0-000
Injector
|
15312-86CB0-000 |
— | ||
|
3
|
3
15833-86CB0-000
Pipe
|
15833-86CB0-000 |
— | ||
|
4
|
4
15865-86CA1-000
Union
3x7 |
15865-86CA1-000 |
— | ||
|
5
|
5
18550-86CA0-000
Injector plug
|
18550-86CA0-000 |
— | ||
|
6
|
6
15318-86CA0-000
Plug
? 17.50 |
15318-86CA0-000 |
— | ||
|
7
|
7
15319-86CA1-000
Injector gasket
7.2x13.6-0.4 |
15319-86CA1-000 |
— | ||
|
8
|
8
15319-86CA0-000
Injector inner protec
15.6x21.2-2.2 |
15319-86CA0-000 |
— | ||
|
9
|
9
15315-86CB0-000
Spring
|
15315-86CB0-000 |
— | ||
|
10
|
10
15313-86CB0-000
Spacer
|
15313-86CB0-000 |
— | ||
|
11
|
11
15316-86CA0-079
Adjusting washer
0.79 |
15316-86CA0-079 |
— | ||
|
11
|
11
15316-86CA0-082
Adjusting washer
0.82 |
15316-86CA0-082 |
— | ||
|
11
|
11
15316-86CA0-085
Adjusting washer
0.85 |
15316-86CA0-085 |
— | ||
|
11
|
11
15316-86CA0-088
Adjusting washer
0.88 |
15316-86CA0-088 |
— | ||
|
11
|
11
15316-86CA0-091
Adjusting washer
0.91 |
15316-86CA0-091 |
— | ||
|
11
|
11
15316-86CA0-094
Adjusting washer
0.94 |
15316-86CA0-094 |
— | ||
|
11
|
11
15316-86CA0-097
Adjusting washer
0.97 |
15316-86CA0-097 |
— | ||
|
11
|
11
15316-86CA0-100
Adjusting washer
1.00 |
15316-86CA0-100 |
— | ||
|
11
|
11
15316-86CA0-103
Adjusting washer
1.03 |
15316-86CA0-103 |
— | ||
|
11
|
11
15316-86CA0-106
Adjusting washer
1.06 |
15316-86CA0-106 |
— | ||
|
11
|
11
15319-86CA0-109
Adjusting washer
1.09 |
15319-86CA0-109 |
— | ||
|
11
|
11
15319-86CA0-112
Adjusting washer
1.12 |
15319-86CA0-112 |
— | ||
|
11
|
11
15319-86CA0-115
Adjusting washer
1.15 |
15319-86CA0-115 |
— | ||
|
11
|
11
15319-86CA0-118
Adjusting washer
1.18 |
15319-86CA0-118 |
— | ||
|
11
|
11
15319-86CA0-121
Adjusting washer
1.21 |
15319-86CA0-121 |
— | ||
|
11
|
11
15319-86CA0-124
Adjusting washer
1.24 |
15319-86CA0-124 |
— | ||
|
11
|
11
15319-86CA0-127
Adjusting washer
1.27 |
15319-86CA0-127 |
— | ||
|
11
|
11
15316-86CA0-130
Adjusting washer
1.30 |
15316-86CA0-130 |
— | ||
|
11
|
11
15316-86CA0-133
Adjusting washer
1.33 |
15316-86CA0-133 |
— | ||
|
11
|
11
15316-86CA0-136
Adjusting washer
1.36 |
15316-86CA0-136 |
— | ||
|
11
|
11
15316-86CA0-139
Adjusting washer
1.39 |
15316-86CA0-139 |
— | ||
|
11
|
11
15316-86CA0-142
Adjusting washer
1.42 |
15316-86CA0-142 |
— | ||
|
11
|
11
15316-86CA0-145
Adjusting washer
1.45 |
15316-86CA0-145 |
— | ||
|
11
|
11
15316-86CA0-148
Adjusting washer
1.48 |
15316-86CA0-148 |
— | ||
|
12
|
12
17876-86CA0-000
Union
3x7: L: 85.5 |
17876-86CA0-000 |
— | ||
|
13
|
13
15895-86CA0-000
Clamp,fuel pipe
|
15895-86CA0-000 |
— |
