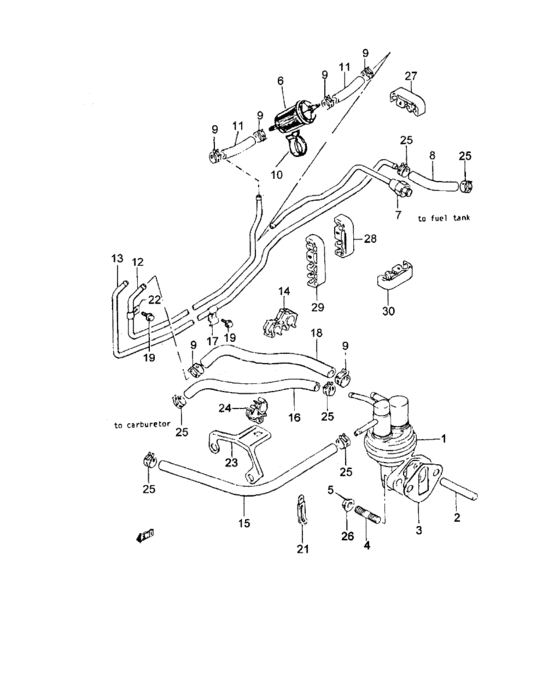

Fuel feed circuit (GASOLINE:CARBURETOR) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-A8300-000
Pump assy, fuel
|
15100-A8300-000 |
— | ||
|
2
|
2
15315-82000-000 ROD,FUEL PUMP |
15315-82000-000 |
from US $2.95 |
||
|
3
|
3
15319-C63B0-000
Gasket, fuel pump
|
15319-C63B0-000 |
— | ||
|
4
|
4
13117-60B00-000
Stud bolt
|
13117-60B00-000 |
— | ||
| replacements | |||||
|
4
|
4
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.28 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
|
5
|
5
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
5
|
5
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
6
|
6
15410-A6340-100
Filter, fuel
|
15410-A6340-100 |
— | ||
|
7
|
7
15810-70A20-000
PIPE,FUEL TANK TO FILTER
SHORT |
15810-70A20-000 |
— | ||
|
7
|
7
15810-A8031-100
Hose,outlet
LONG |
15810-A8031-100 |
— | ||
|
8
|
8
09354-40805-300
ホース,4X8X300
L:125 |
09354-40805-300 |
— | ||
| replacement | |||||
|
8
|
8
09355-40805-600 HOSE(4X8X600)L:125 |
09355-40805-600 |
from US $6.24 |
||
|
9
|
9
15899-85C00-000
Clamp, pipe to hose
|
15899-85C00-000 |
— | ||
|
10
|
10
09403-A4530-100
Clip fij. filtre
|
09403-A4530-100 |
— | ||
|
11
|
11
09354-70124-059
Hose
|
09354-70124-059 |
— | ||
|
12
|
12
15821-70A22-000
Pipe,fuel
|
15821-70A22-000 |
— | ||
|
13
|
13
15861-A70A4-200
Pipe, return
SHORT |
15861-A70A4-200 |
— | ||
|
13
|
13
15861-83510-000
Pipe, return
LONG |
15861-83510-000 |
— | ||
| replacement | |||||
|
13
|
13
15861-83520-000
PIPE,FUEL RTN
LONG |
15861-83520-000 |
— | ||
|
14
|
14
18119-85C20-000
Clamp
|
18119-85C20-000 |
— | ||
|
15
|
15
09355-40805-600 HOSE(4X8X600)L:440 |
09355-40805-600 |
from US $6.24 |
||
|
16
|
16
15830-83001-000
Hose, pump to carburator
|
15830-83001-000 |
— | ||
| replacement | |||||
|
16
|
16
15830-83X50-000
HOSE,FUEL PUMP TO CARB
|
15830-83X50-000 |
— | ||
|
17
|
17
15819-78000-000
Clamp, fuel pipe
|
15819-78000-000 |
— | ||
| replacement | |||||
|
17
|
17
15819-78101-000
CLAMP
|
15819-78101-000 |
— | ||
|
18
|
18
09356-76145-00B
HOSE(7.6X14X2000)
|
09356-76145-00B |
— | ||
|
19
|
19
51791-85C00-000
Screw
|
51791-85C00-000 |
— | ||
|
20
|
20
36990-85C30-000
Clamp, engine harness
|
36990-85C30-000 |
— | ||
|
21
|
21
24759-A7813-000
Clamp, harness no. 1
|
24759-A7813-000 |
— | ||
|
22
|
22
09403-08309-000 CLAMP |
09403-08309-000 |
US $2.08 |
||
|
23
|
23
15881-60A00-000
Bracket
|
15881-60A00-000 |
— | ||
| replacement | |||||
|
23
|
23
15881-60A0V-000
BRACKET,FUEL HOSE CLAMP
|
15881-60A0V-000 |
— | ||
|
24
|
24
18119-85C30-000
Clip, hoses to bracket
|
18119-85C30-000 |
— | ||
|
25
|
25
09401-B1140-200
Clamp
|
09401-B1140-200 |
— | ||
|
26
|
26
08321-B3108-300
Washer
|
08321-B3108-300 |
— | ||
|
27
|
27
15892-70A00-000 CLAMP,FUEL PIPE |
15892-70A00-000 |
US $2.58 |
||
|
28
|
28
15893-70A00-000
CLAMP,FUEL,PIPE
|
15893-70A00-000 |
— | ||
|
29
|
29
15895-70A00-000
CLAMP,FUEL PIPE
|
15895-70A00-000 |
— | ||
|
30
|
30
15897-70A00-000
Clamp,fuel pipe
|
15897-70A00-000 |
— | ||
