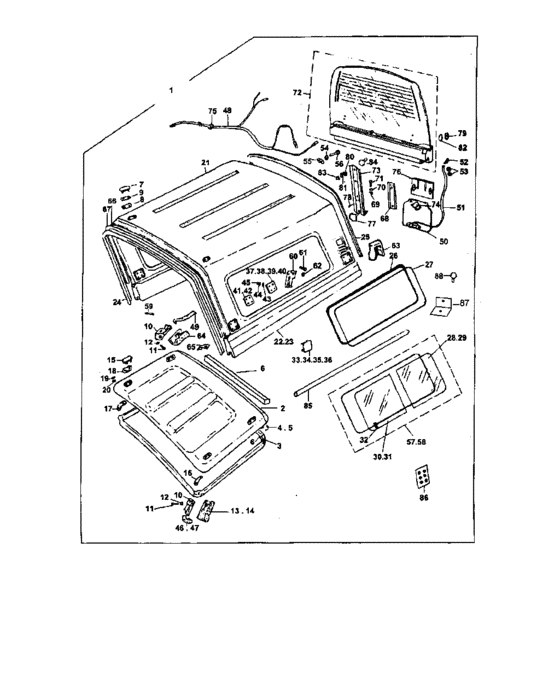

Hard top assy (LONG BODY) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
50971-00000-000
Front Roof (White)
WHITE |
50971-00000-000 |
— | ||
|
2
|
2
52309-00000-000
Front Roof (Black)
BLACK |
52309-00000-000 |
— | ||
|
3
|
3
78339-00001-000
Rubber, front roof
|
78339-00001-000 |
— | ||
|
4
|
4
50065-00000-000
Sealing profile, front roof
|
50065-00000-000 |
— | ||
|
5
|
5
50064-00000-000
Sealing molding, drip
|
50064-00000-000 |
— | ||
|
6
|
6
50067-00000-000
Rear rubber, front roof
|
50067-00000-000 |
— | ||
|
7
|
7
78325-00000-000
Outer plate assy, roof
|
78325-00000-000 |
— | ||
|
8
|
8
78328-00000-000
Suppement
|
78328-00000-000 |
— | ||
|
9
|
9
78329-00000-000
Gasket
|
78329-00000-000 |
— | ||
|
10
|
10
52659-00000-000
Quick lock
|
52659-00000-000 |
— | ||
|
11
|
11
02142-04103-000
Screw 4x10
|
02142-04103-000 |
— | ||
| replacement | |||||
|
11
|
11
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
12
|
12
08321-A3104-300
Grower whaser
|
08321-A3104-300 |
— | ||
|
13
|
13
78368-00001-000
Cover, quick lock lh
|
78368-00001-000 |
— | ||
|
14
|
14
78369-00001-000
Cover, quick lock rh
|
78369-00001-000 |
— | ||
|
15
|
15
78343-00000-000
Front fix. plate assy, roof
|
78343-00000-000 |
— | ||
|
16
|
16
51502-00000-000
Front corner plate lh
|
51502-00000-000 |
— | ||
|
17
|
17
51501-00000-000
Front corner plate rh
|
51501-00000-000 |
— | ||
|
18
|
18
78350-00000-000
Gasket
|
78350-00000-000 |
— | ||
|
19
|
19
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
19
|
19
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $1.12 |
||
|
20
|
20
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
20
|
20
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
20
|
20
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
21
|
21
51811-00002-000
Rear roof assy
WHITE |
51811-00002-000 |
— | ||
|
21
|
21
51812-00000-000
Rear roof assy
BLACK |
51812-00000-000 |
— | ||
|
22
|
22
51816-84C50-000
Lower molding, l/h
|
51816-84C50-000 |
— | ||
|
23
|
23
51815-84C50-000
Lower molding, r/h
|
51815-84C50-000 |
— | ||
|
24
|
24
84681-B8000-200
Front rubber, rear roof
|
84681-B8000-200 |
— | ||
|
25
|
25
52694-00000-000
Rubber, rear door
|
52694-00000-000 |
— | ||
|
26
|
26
51669-84C00-000
Weatherstrip, rear window
|
51669-84C00-000 |
— | ||
|
27
|
27
51670-84C00-000
Sealing strip window
|
51670-84C00-000 |
— | ||
|
28
|
28
00000-A0107-100
Fixed glass, l/h
|
00000-A0107-100 |
— | ||
|
29
|
29
00000-A0107-200
Fixed glass, r/h
|
00000-A0107-200 |
— | ||
|
30
|
30
00000-A0107-300
Sliding glass, l/h
|
00000-A0107-300 |
— | ||
|
31
|
31
00000-A0107-400
Sliding glass, r/h
|
00000-A0107-400 |
— | ||
|
32
|
32
00000-A0068-800
Latch assy, window
|
00000-A0068-800 |
— | ||
|
33
|
33
52071-00000-000
Rear out. plate assy, l/h
|
52071-00000-000 |
— | ||
|
34
|
34
52072-00000-000
Rear out. plate assy, r/h
|
52072-00000-000 |
— | ||
|
35
|
35
52073-00000-000
Front out. plate assy, l/h
|
52073-00000-000 |
— | ||
|
36
|
36
52074-00000-000
Front out. plate assy, r/h
|
52074-00000-000 |
— | ||
|
37
|
37
52081-00000-000
Rear int. plate assy, l/h
|
52081-00000-000 |
— | ||
|
38
|
38
52082-00000-000
Rear int. plate assy, r/h
|
52082-00000-000 |
— | ||
|
39
|
39
52077-00000-000
Front int. plate assy, l/h
|
52077-00000-000 |
— | ||
|
40
|
40
52078-00000-000
Front int. plate assy, r/h
|
52078-00000-000 |
— | ||
|
41
|
41
52076-00000-000
Gasket, front plate-roof
|
52076-00000-000 |
— | ||
|
42
|
42
52075-00000-000
Gasket, rear plate-roof
|
52075-00000-000 |
— | ||
|
43
|
43
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.41 |
||
|
44
|
44
08321-31063-000 Lock washer |
08321-31063-000 |
US $1.07 |
||
| replacement | |||||
|
44
|
44
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
45
|
45
08313-B1106-800
Ecrow
|
08313-B1106-800 |
— | ||
|
46
|
46
78335-00000-000
Windscreen hook, l/h
|
78335-00000-000 |
— | ||
|
47
|
47
78336-00000-000
Windscreen hook, r/h
|
78336-00000-000 |
— | ||
|
48
|
48
35328-00000-000
Wire comp, back door
|
35328-00000-000 |
— | ||
|
49
|
49
51433-00000-000
Crochet fermenture
|
51433-00000-000 |
— | ||
|
50
|
50
35011-00000-000
Tank, rear glasswip.
|
35011-00000-000 |
— | ||
|
51
|
51
35253-00000-000
Hose, screenwasher
|
35253-00000-000 |
— | ||
|
52
|
52
35013-00000-000
Tuyau essuie glace
|
35013-00000-000 |
— | ||
|
53
|
53
09320-09004-000 CUSHIONFrm rh cover cushion |
09320-09004-000 |
from US $1.98 |
||
|
54
|
54
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
54
|
54
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $1.12 |
||
|
55
|
55
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
55
|
55
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
56
|
56
09119-A0600-700
Screw,butterfly
|
09119-A0600-700 |
— | ||
|
57
|
57
52097-00010-000
Slide window assy, r/h
|
52097-00010-000 |
— | ||
|
58
|
58
52098-00010-000
Slide window assy, l/h
|
52098-00010-000 |
— | ||
|
59
|
59
51559-00000-000
Cover hook strip
|
51559-00000-000 |
— | ||
|
60
|
60
78324-00010-000
Quick lock
|
78324-00010-000 |
— | ||
|
61
|
61
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
61
|
61
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
62
|
62
08321-A3105-600
Washer
|
08321-A3105-600 |
— | ||
|
63
|
63
51560-00001-000
Cover, quick lock
|
51560-00001-000 |
— | ||
|
64
|
64
78367-84C50-000
Cover, quick lock
|
78367-84C50-000 |
— | ||
|
65
|
65
78366-00000-000
Crochet couverc
|
78366-00000-000 |
— | ||
|
66
|
66
84611-84C00-000
Protector rubber
|
84611-84C00-000 |
— | ||
|
67
|
67
50066-00000-000
Front rubber, antidump
|
50066-00000-000 |
— | ||
|
68
|
68
51436-00000-000
Support vitre
|
51436-00000-000 |
— | ||
|
69
|
69
08321-31063-000 Lock washer |
08321-31063-000 |
US $1.07 |
||
| replacement | |||||
|
69
|
69
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
70
|
70
09160-84C00-000
Washer
|
09160-84C00-000 |
— | ||
|
71
|
71
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
71
|
71
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
71
|
71
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
72
|
72
52102-84C00-000
Glass assy, rear door
|
52102-84C00-000 |
— | ||
|
73
|
73
52095-00000-000
Glass fix. plate
|
52095-00000-000 |
— | ||
|
74
|
74
00000-A0029-300
Plug, rear sc.wash. tank
|
00000-A0029-300 |
— | ||
|
75
|
75
35070-00000-000
Rondelle calbe
|
35070-00000-000 |
— | ||
|
76
|
76
51413-00000-000
Bracket, rear wash. bottle
|
51413-00000-000 |
— | ||
|
77
|
77
51572-00000-000
Poignee fixage vitre
|
51572-00000-000 |
— | ||
|
78
|
78
78362-00000-000
Screw, glass fixing
|
78362-00000-000 |
— | ||
|
79
|
79
78359-00000-000
Butee
|
78359-00000-000 |
— | ||
|
80
|
80
78361-00000-000
Betee
|
78361-00000-000 |
— | ||
|
81
|
81
78360-00000-000
Caoutchout av. barre
|
78360-00000-000 |
— | ||
|
82
|
82
09160-T0807-500
Flat washer
|
09160-T0807-500 |
— | ||
|
83
|
83
08313-B1108-300
Nut
|
08313-B1108-300 |
— | ||
|
84
|
84
78361-00000-000
Betee
|
78361-00000-000 |
— | ||
|
85
|
85
50037-00000-000
Gasket, side molding
|
50037-00000-000 |
— | ||
|
86
|
86
72115-85C00-000
Seal, spare tire bracket,cushion hole
|
72115-85C00-000 |
— | ||
|
87
|
87
51436-00000-000
Support vitre
|
51436-00000-000 |
— | ||
|
88
|
88
15329-85C00-000
Screw, lock cover
|
15329-85C00-000 |
— | ||
