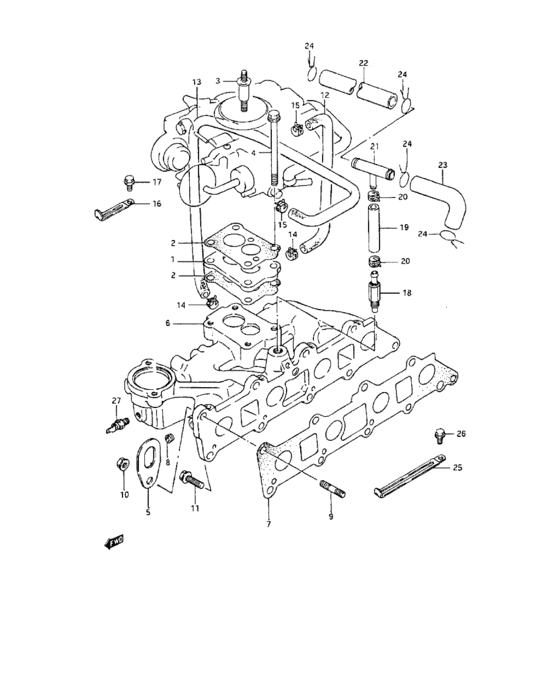

Intake manifold (GASOLINE:CARBURETOR) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13129-83000-000
SPACER,CARBURETOR
|
13129-83000-000 |
— | ||
|
2
|
2
13125-A8300-100
Gasket, carburetor
|
13125-A8300-100 |
— | ||
|
3
|
3
13839-A8300-000
Stud bolt, intake case
|
13839-A8300-000 |
— | ||
|
4
|
4
09103-08134-000 BOLT(8X110)Bolt, collector no.1 8X110 |
09103-08134-000 |
from US $1.82 |
||
|
5
|
5
11851-73001-000
フック,エンジン
|
11851-73001-000 |
— | ||
| replacement | |||||
|
5
|
5
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
6
|
6
13110-81C00-000
Manifold, intake
|
13110-81C00-000 |
— | ||
|
7
|
7
13119-B8260-100
Gasket, intake manifold
|
13119-B8260-100 |
— | ||
|
8
|
8
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.76 |
||
|
9
|
9
13117-60B00-000
Stud bolt
|
13117-60B00-000 |
— | ||
| replacements | |||||
|
9
|
9
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
9
|
9
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
|
10
|
10
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
10
|
10
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
10
|
10
08321-B3108-300
Washer
|
08321-B3108-300 |
— | ||
|
11
|
11
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
11
|
11
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.12 |
||
|
12
|
12
13191-83000-000
Hose, carburetor choke inlet
|
13191-83000-000 |
— | ||
| replacements | |||||
|
12
|
12
13191-83001-000
HOSE,CARB CHOKE INLET
|
13191-83001-000 |
— | ||
|
12
|
12
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.52 |
||
|
13
|
13
13192-83000-000
Hose, carburetor choke outlet
|
13192-83000-000 |
— | ||
| replacements | |||||
|
13
|
13
13192-83001-000
HOSE,CARB CHOKE OUTLET
|
13192-83001-000 |
— | ||
|
13
|
13
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.52 |
||
|
14
|
14
18119-85C50-000
Clip
|
18119-85C50-000 |
— | ||
|
15
|
15
18119-85C50-000
Clip
|
18119-85C50-000 |
— | ||
|
16
|
16
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
17
|
17
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
18118-80010-000 VALVE,PCV |
18118-80010-000 |
US $31.20 |
||
|
19
|
19
11193-A8000-000
Hose, pcv
|
11193-A8000-000 |
— | ||
|
20
|
20
15899-85C00-000
Clamp, pipe to hose
|
15899-85C00-000 |
— | ||
|
21
|
21
09367-14003-000
Reccord 3 voices
|
09367-14003-000 |
— | ||
| replacement | |||||
|
21
|
21
09367-14002-000 JOINT |
09367-14002-000 |
US $58.90 |
||
|
22
|
22
11191-A7300-100
Hose, breather
|
11191-A7300-100 |
— | ||
|
23
|
23
11192-A8300-000
Hose, breather
|
11192-A8300-000 |
— | ||
|
24
|
24
11196-85C00-000
Clip, isc hose no.1
|
11196-85C00-000 |
— | ||
|
25
|
25
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
26
|
26
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
26
|
26
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
27
|
27
34850-A8200-000
Gauge assy, water temp
|
34850-A8200-000 |
— | ||
