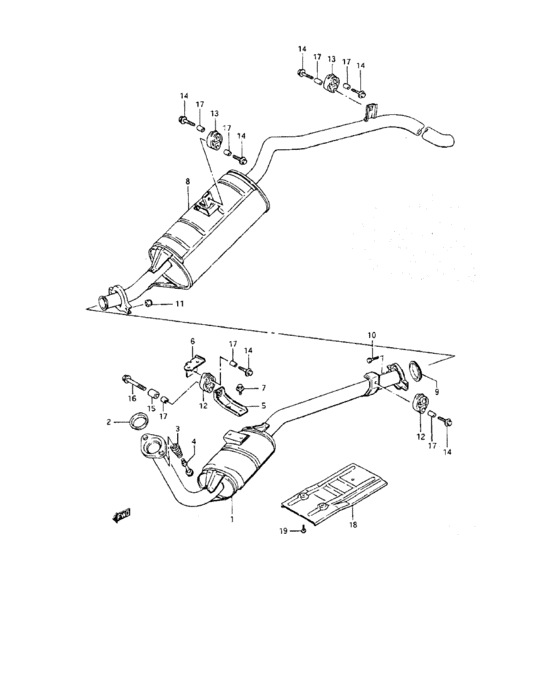

Muffler (GASOLINE:CARBURETOR) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14150-A8300-200
Pipe, exhaust center
|
14150-A8300-200 |
— | ||
|
2
|
2
14183-60A11-000
RING SEAL EXHAUST PIPE
|
14183-60A11-000 |
— | ||
| replacement | |||||
|
2
|
2
14183-76A00-000 RING,SEAL EXH PIPE |
14183-76A00-000 |
from US $12.62 |
||
|
3
|
3
14492-85C00-000
Spring
|
14492-85C00-000 |
— | ||
|
4
|
4
09119-10041-000 BOLT(10X65)10X65 |
09119-10041-000 |
from US $5.18 |
||
|
5
|
5
14284-83002-000 BRACKET,EXH CENTER PIPE NO.1 |
14284-83002-000 |
US $2.50 |
||
|
6
|
6
14285-83001-000
Bracket, exhaust pipe no.2
|
14285-83001-000 |
— | ||
| replacement | |||||
|
6
|
6
14285-83010-000 BRACKET,EXH CENTER PIPE NO.2 |
14285-83010-000 |
US $3.69 |
||
|
7
|
7
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
7
|
7
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
8
|
8
14300-A8331-000
Muffler
SHORT |
14300-A8331-000 |
— | ||
|
8
|
8
14300-B8341-100
Muffler
LONG |
14300-B8341-100 |
— | ||
|
9
|
9
14699-83000-000
GASKET,CENTER PIPE&MUF
|
14699-83000-000 |
— | ||
|
10
|
10
01500-08253-000
Bolt
|
01500-08253-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
11
|
11
09159-A0802-200
Nut
|
09159-A0802-200 |
— | ||
|
12
|
12
14281-85C00-000
Mounting
|
14281-85C00-000 |
— | ||
|
13
|
13
14281-85C00-000
Mounting
|
14281-85C00-000 |
— | ||
|
14
|
14
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
14
|
14
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
15
|
15
14287-83000-000
スペーサ,マフラマウンチングボルト
|
14287-83000-000 |
— | ||
| replacement | |||||
|
15
|
15
14287-8300V-000
SPACER,MUFFLER MTG BOLT
|
14287-8300V-000 |
— | ||
|
16
|
16
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
16
|
16
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
17
|
17
09180-08095-000
Bush
|
09180-08095-000 |
— | ||
| replacement | |||||
|
17
|
17
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.04 |
||
|
18
|
18
14231-80011-000 PANEL,HEAT PROTECTOR |
14231-80011-000 |
US $15.84 |
||
|
19
|
19
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
19
|
19
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
