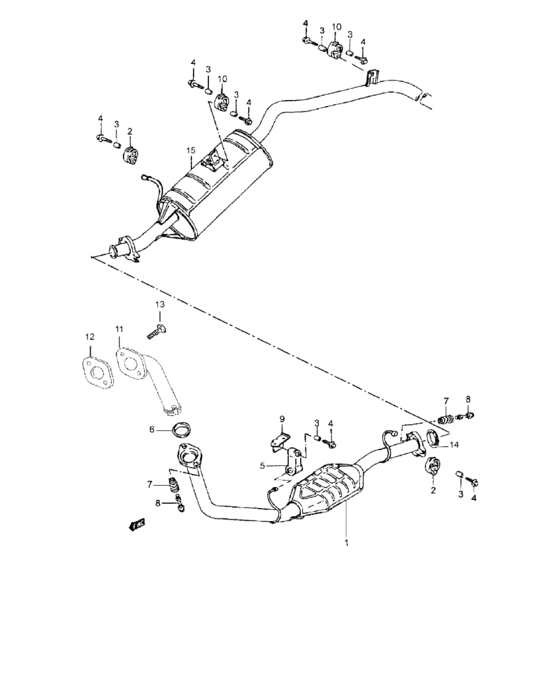

Muffler (DIESEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14250-84CB1-000
Pipe comp. exh. no.1
|
14250-84CB1-000 |
— | ||
|
1
|
1
14250-84CC0-000
Pipe comp. exh. no.1
DIESEL E.III |
14250-84CC0-000 |
— | ||
|
2
|
2
14281-85C00-000
Mounting
|
14281-85C00-000 |
— | ||
|
3
|
3
09180-08095-000
Bush
|
09180-08095-000 |
— | ||
| replacement | |||||
|
3
|
3
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.04 |
||
|
4
|
4
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
4
|
4
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
14281-71C00-000
MOUNTING
|
14281-71C00-000 |
— | ||
| replacement | |||||
|
5
|
5
14281-71C01-000 MOUNTING,MUF |
14281-71C01-000 |
from US $9.63 |
||
|
6
|
6
14183-58B02-000
Ring,seal exh pipe
DIESEL E.III |
14183-58B02-000 |
— | ||
| replacements | |||||
|
6
|
6
14183-65D00-000 RING,SEAL EXH PIPEDIESEL E.III |
14183-65D00-000 |
from US $15.93 |
||
|
6
|
6
14183-58B10-000 RING,SEAL EXH PIPEDIESEL E.III |
14183-58B10-000 |
from US $23.92 |
||
|
6
|
6
14183-60A11-000
RING SEAL EXHAUST PIPE
|
14183-60A11-000 |
— | ||
| replacement | |||||
|
6
|
6
14183-76A00-000 RING,SEAL EXH PIPE |
14183-76A00-000 |
from US $12.62 |
||
|
7
|
7
14492-85C00-000
Spring
|
14492-85C00-000 |
— | ||
|
8
|
8
14493-85C00-000
Bolt
|
14493-85C00-000 |
— | ||
|
9
|
9
14281-85C00-000
Mounting
|
14281-85C00-000 |
— | ||
|
10
|
10
14115-84CA0-000
Elbow exhaust
DIESEL E.III |
14115-84CA0-000 |
— | ||
|
11
|
11
14181-84CA0-000
Gasket, elbow
DIESEL E.III |
14181-84CA0-000 |
— | ||
|
12
|
12
43811-85C00-000
Bolt, elbow to manifold
DIESEL E.III |
43811-85C00-000 |
— | ||
|
14
|
14
14300-84CA0-000
Muffler
SHORT |
14300-84CA0-000 |
— | ||
|
14
|
14
14300-84CB0-000
Muffler
LONG |
14300-84CB0-000 |
— | ||
