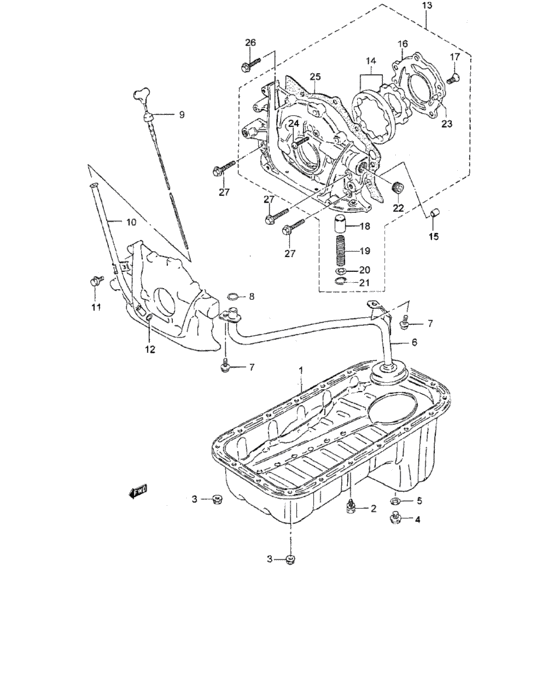

Oil pan (GASOLINE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-83004-000 PAN,OIL |
11510-83004-000 |
from US $81.90 |
||
|
2
|
2
09117-A0603-300
Bolt
10X12 |
09117-A0603-300 |
— | ||
|
3
|
3
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
4
|
4
09247-14027-000 PLUG(14X11.5)Plug, oil drain |
09247-14027-000 |
from US $1.89 |
||
| replacement | |||||
|
4
|
4
09247-14044-000 DRAIN PLUG (M14x1.5) |
09247-14044-000 |
from US $1.67 |
||
|
5
|
5
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union |
09168-14015-000 |
from US $1.15 |
||
|
6
|
6
16520-83003-000 STRAINER,OIL PUMP |
16520-83003-000 |
from US $30.69 |
||
|
7
|
7
07120-06123-000
Bolt
|
07120-06123-000 |
— | ||
| replacement | |||||
|
7
|
7
07120-0612B-000 BoltPlug |
07120-0612B-000 |
from US $0.96 |
||
|
8
|
8
09280-14011-000 O RING(D:2.5,ID:13.8)O ring (d:2.5 id:13.8) |
09280-14011-000 |
from US $2.13 |
||
|
9
|
9
16910-85C00-000
Gauge, oil level
|
16910-85C00-000 |
— | ||
|
10
|
10
16930-82001-000 GUIDE,OIL LEVEL GAUGE |
16930-82001-000 |
from US $5.11 |
||
|
11
|
11
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
|
13
|
13
16100-A8260-200
Pump assy, oil
|
16100-A8260-200 |
— | ||
|
14
|
14
16130-82600-000 ROTOR SET,OIL PUMP |
16130-82600-000 |
from US $40.39 |
||
|
15
|
15
04211-A0910-900
Coupille centrage
|
04211-A0910-900 |
— | ||
|
16
|
16
16161-A8260-000
Plate
|
16161-A8260-000 |
— | ||
|
17
|
17
09126-06007-000 SCREW(6X14)Bolt 6X14 |
09126-06007-000 |
from US $0.65 |
||
|
18
|
18
16151-A7810-000
Valve,oil pump relief
|
16151-A7810-000 |
— | ||
|
19
|
19
16152-A7810-000
Spring
|
16152-A7810-000 |
— | ||
|
20
|
20
16153-A7810-000
Spring
|
16153-A7810-000 |
— | ||
|
21
|
21
08331-41156-000
Circlip
|
08331-41156-000 |
— | ||
| replacement | |||||
|
21
|
21
08331-4115A-000 CIRCLIP |
08331-4115A-000 |
US $1.76 |
||
|
22
|
22
09246-08002-000 PLUG |
09246-08002-000 |
from US $0.63 |
||
|
23
|
23
16173-A7810-000
Pin, oil pump
|
16173-A7810-000 |
— | ||
|
24
|
24
02112-06203-000
Screw
|
02112-06203-000 |
— | ||
| replacements | |||||
|
24
|
24
02112-0620B-000 SCREW |
02112-0620B-000 |
US $0.96 |
||
|
24
|
24
02112-0620A-000 SCREWScrew, holder |
02112-0620A-000 |
from US $0.96 |
||
|
25
|
25
16119-85C00-000
Gasket, oil pump case
|
16119-85C00-000 |
— | ||
|
26
|
26
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0625B-000 BoltBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
26
|
26
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
27
|
27
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
27
|
27
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
