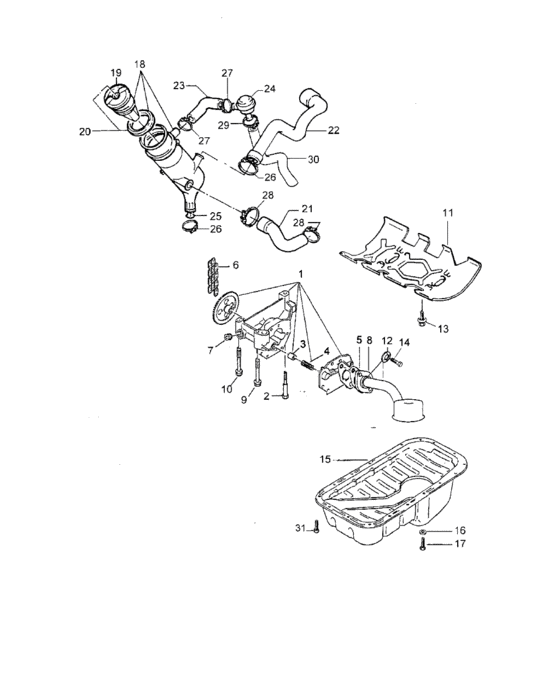

Oil pump (TURBO DIESEL) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-86CA0-000
Oil Pump
|
16100-86CA0-000 |
— | ||
|
2
|
2
09111-86CA0-000
Screw
7x100-70 |
09111-86CA0-000 |
— | ||
|
3
|
3
16151-86CA0-000
Valve, oil relief
? 16x25 |
16151-86CA0-000 |
— | ||
|
4
|
4
16152-86CA0-000
Spring, valve
|
16152-86CA0-000 |
— | ||
|
5
|
5
16527-86CA1-000
Gasket
|
16527-86CA1-000 |
— | ||
|
6
|
6
10100-86CB0-000
Oil pump chain
52 LINKS |
10100-86CB0-000 |
— | ||
|
7
|
7
11226-86CA2-000
Plug
16x150 |
11226-86CA2-000 |
— | ||
|
8
|
8
16520-86CA1-000
Oil strainer
|
16520-86CA1-000 |
— | ||
|
9
|
9
01610-86CA1-000
Bolt
7x100-70 |
01610-86CA1-000 |
— | ||
|
10
|
10
01610-86CA2-000
Bolt
7x100-85 |
01610-86CA2-000 |
— | ||
|
11
|
11
11512-86CA0-000
Plate, baffle
|
11512-86CA0-000 |
— | ||
|
12
|
12
08321-86CA0-000
Spring washer
6x12.2-0.5 |
08321-86CA0-000 |
— | ||
|
13
|
13
11119-86CA5-000
Bolt
6x100-16 |
11119-86CA5-000 |
— | ||
|
14
|
14
01517-86CA2-000
Screw h
6x100-16 |
01517-86CA2-000 |
— | ||
|
15
|
15
11510-86CA1-000
Pan oil
|
11510-86CA1-000 |
— | ||
|
16
|
16
09168-86CA0-000
Gasket
|
09168-86CA0-000 |
— | ||
|
17
|
17
09247-86CB1-000
Drain plug
|
09247-86CB1-000 |
— | ||
|
18
|
18
16920-86CA0-000
Oil filler assy
|
16920-86CA0-000 |
— | ||
|
19
|
19
11226-86CA3-000
Plug
|
11226-86CA3-000 |
— | ||
|
20
|
20
11228-86CA9-000
Gasket
? 57x69 |
11228-86CA9-000 |
— | ||
|
21
|
21
17876-86CB0-000
Union
L: 186 |
17876-86CB0-000 |
— | ||
|
22
|
22
17887-86CA0-000
Union
L: 186 |
17887-86CA0-000 |
— | ||
|
23
|
23
17878-86CB0-000
Union
L: 74 |
17878-86CB0-000 |
— | ||
|
24
|
24
15230-86CB0-000
Regulator
|
15230-86CB0-000 |
— | ||
|
25
|
25
15167-86CA0-000
O-ring
16.8x22.2 |
15167-86CA0-000 |
— | ||
|
26
|
26
09403-86CA1-000
Clamp
16-27 |
09403-86CA1-000 |
— | ||
|
27
|
27
M9401-86CB0-000
Clamp
23-35 |
M9401-86CB0-000 |
— | ||
|
28
|
28
09403-86CC0-000
Clamp
30-45 |
09403-86CC0-000 |
— | ||
|
29
|
29
08013-86CA0-000
Clamp
|
08013-86CA0-000 |
— | ||
|
30
|
30
11175-86CA0-000
Hose,eng ventilation
|
11175-86CA0-000 |
— | ||
|
31
|
31
01500-86CB0-000
Bolt, pan oil
7X100-21 |
01500-86CB0-000 |
— |
