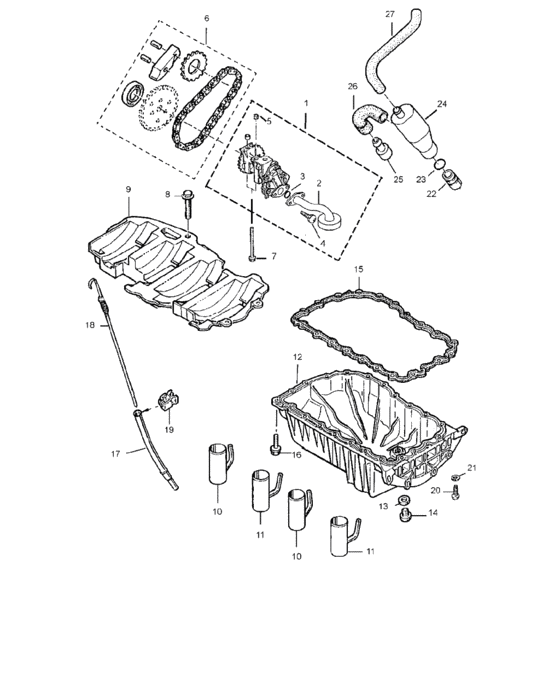

Oil pump (DIESEL EURO III) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-84CB0-000
Oil pump assy
|
16100-84CB0-000 |
— | ||
|
2
|
2
16520-84CA0-000
Strainer, oil pump
|
16520-84CA0-000 |
— | ||
|
3
|
3
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) |
09280-17002-000 |
from US $2.68 |
||
|
4
|
4
07120-06123-000
Bolt
|
07120-06123-000 |
— | ||
| replacement | |||||
|
4
|
4
07120-0612B-000 BoltPlug |
07120-0612B-000 |
from US $0.96 |
||
|
5
|
5
04211-84CT0-000
Pin
|
04211-84CT0-000 |
— | ||
|
6
|
6
10100-84CT0-000
Chain kit, oil pump
|
10100-84CT0-000 |
— | ||
|
7
|
7
01610-84CT2-000
Bolt, oil pump
8X100 |
01610-84CT2-000 |
— | ||
|
8
|
8
11119-84CT0-000
Bolt
M.6 |
11119-84CT0-000 |
— | ||
|
9
|
9
16161-84CA0-000
Oil plate
|
16161-84CA0-000 |
— | ||
|
10
|
10
15312-84CT0-000
Oil jet piston
|
15312-84CT0-000 |
— | ||
|
11
|
11
15312-84CT1-000
Oil jet piston
|
15312-84CT1-000 |
— | ||
|
12
|
12
11510-84CA0-000
Oil Pan
|
11510-84CA0-000 |
— | ||
|
13
|
13
15167-84CT0-000
Seal, drain plug
|
15167-84CT0-000 |
— | ||
|
14
|
14
09247-84CT2-000
Drain plug
16X150 |
09247-84CT2-000 |
— | ||
|
15
|
15
11529-84CA0-000
Gasket, Oil Pan
|
11529-84CA0-000 |
— | ||
|
16
|
16
09117-84CT0-000
Bolt, oil pan
|
09117-84CT0-000 |
— | ||
|
17
|
17
16930-84CT0-000
Guide, oil level gauge
|
16930-84CT0-000 |
— | ||
|
18
|
18
16910-84CT0-000
Gauge, oil level
|
16910-84CT0-000 |
— | ||
|
19
|
19
23916-84CT0-000
Clip
|
23916-84CT0-000 |
— | ||
|
20
|
20
11681-86CA0-000
Bolt, bracket eng. front lh
|
11681-86CA0-000 |
— | ||
|
21
|
21
08322-11103-000 WASHER 105X18X16 |
08322-11103-000 |
from US $0.97 |
||
| replacements | |||||
|
21
|
21
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
21
|
21
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
22
|
22
00000-A0141-900
Oil separator hod. ring
|
00000-A0141-900 |
— | ||
|
23
|
23
15167-84CT2-000
O ring
|
15167-84CT2-000 |
— | ||
|
24
|
24
00000-A0142-000
Oil separator
|
00000-A0142-000 |
— | ||
|
25
|
25
00000-A0142-100
Gaz nipple, cyl. block
|
00000-A0142-100 |
— | ||
|
26
|
26
00000-A0142-200
Hose, oil separator
|
00000-A0142-200 |
— | ||
|
27
|
27
11175-84CB0-000
Oil separator return hose
|
11175-84CB0-000 |
— | ||
