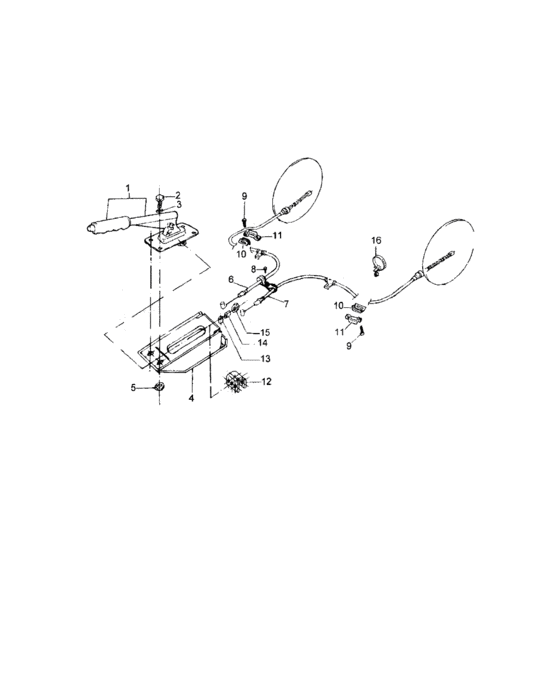

Parking brake (PARKING BRAKE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-C8331-000
Lever assy, parking brake
|
54100-C8331-000 |
— | ||
|
2
|
2
00016-00000-000
Bolt
|
00016-00000-000 |
— | ||
|
3
|
3
02007-00000-000
Washer
|
02007-00000-000 |
— | ||
|
4
|
4
45043-00000-000
Protector
|
45043-00000-000 |
— | ||
|
5
|
5
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
6
|
6
45068-00000-000
Cable assy, rh
SHORT |
45068-00000-000 |
— | ||
|
6
|
6
45048-00000-000
Cable assy, rh
LONG |
45048-00000-000 |
— | ||
|
7
|
7
45041-00000-000
Cable assy, lh
SHORT |
45041-00000-000 |
— | ||
|
7
|
7
45049-00000-000
Cable assy, lh
LONG |
45049-00000-000 |
— | ||
|
8
|
8
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
8
|
8
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
9
|
9
51791-85C00-000
Screw
|
51791-85C00-000 |
— | ||
|
10
|
10
45023-00000-000
Support cable
|
45023-00000-000 |
— | ||
|
11
|
11
45022-00000-000
Bride
|
45022-00000-000 |
— | ||
|
12
|
12
54312-A60A1-000
Balancer, rod
|
54312-A60A1-000 |
— | ||
|
13
|
13
54313-86C00-000
Pin
|
54313-86C00-000 |
— | ||
|
14
|
14
02040-84C00-000
Autobraking nut
|
02040-84C00-000 |
— | ||
|
15
|
15
54315-86C00-000
Collar
|
54315-86C00-000 |
— | ||
|
16
|
16
00009-00000-000
Clamp,wire electro fan
|
00009-00000-000 |
— | ||
