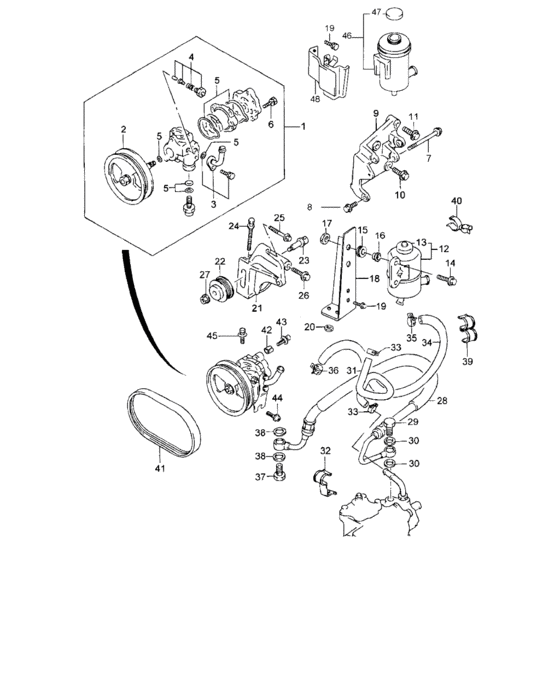

Power steering pump (POWER STEERING PUMP) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-70A50-000
PUMP ASSY,POWER STEERING
GASOLINE |
49100-70A50-000 |
— | ||
|
1
|
1
49100-84CA0-000
Pump assy, power steering
DIESEL |
49100-84CA0-000 |
— | ||
|
2
|
2
49111-70AA0-000
Pulley assy
GASOLINE |
49111-70AA0-000 |
— | ||
|
3
|
3
49112-70A50-000
CONNECTOR SET
GASOLINE |
49112-70A50-000 |
— | ||
|
4
|
4
49113-70AA0-000
TERMINAL SET
GASOLINE |
49113-70AA0-000 |
— | ||
|
5
|
5
49114-70AA0-000
SEAL SET
GASOLINE |
49114-70AA0-000 |
— | ||
|
6
|
6
49115-56B20-000 BOLT SETGASOLINE |
49115-56B20-000 |
from US $6.30 |
||
|
7
|
7
09103-08132-000
Bolt (8x100)
GASOLINE |
09103-08132-000 |
— | ||
| replacement | |||||
|
7
|
7
09103-08230-000 BOLT(8X100)Bolt (8x100) GASOLINE |
09103-08230-000 |
from US $1.24 |
||
|
8
|
8
01550-08253-000
Bolt, rear
GASOLINE |
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BoltGASOLINE |
01550-0825B-000 |
from US $1.06 |
||
|
8
|
8
01550-0825A-000 BoltGASOLINE |
01550-0825A-000 |
from US $0.47 |
||
|
9
|
9
49120-70AA0-000
BRACKET,PUMP
GASOLINE |
49120-70AA0-000 |
— | ||
|
10
|
10
01550-10253-000
Bolt
GASOLINE |
01550-10253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-1025B-000 BoltBolt, rr swgarm bracket, l GASOLINE |
01550-1025B-000 |
from US $1.28 |
||
|
10
|
10
01550-1025A-000 BoltBolt, drive gear GASOLINE |
01550-1025A-000 |
from US $1.06 |
||
|
11
|
11
01517-10353-000
Bolt, mtg brkt lh
GASOLINE |
01517-10353-000 |
— | ||
|
12
|
12
49140-70A10-000 TANK ASSY,POWER STEERING,OILGASOLINE |
49140-70A10-000 |
US $135.79 |
||
|
12
|
12
49140-56B00-000 TANK ASSY,POWER STEERING OILT. DIESEL |
49140-56B00-000 |
from US $143.93 |
||
|
13
|
13
49141-60A00-000 CAP,TANK |
49141-60A00-000 |
from US $12.92 |
||
|
14
|
14
01550-06123-000
Bolt
GASOLINE |
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BoltBolt, clamp GASOLINE |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 BoltGASOLINE |
01550-0612A-000 |
from US $0.76 |
||
|
14
|
14
01550-06203-000
Bolt
DIESEL |
01550-06203-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-0620B-000 BoltBolt, inspection cap DIESEL |
01550-0620B-000 |
from US $0.76 |
||
|
15
|
15
09320-86CA0-000
Grommet, tank
DIESEL |
09320-86CA0-000 |
— | ||
|
16
|
16
09169-06065-000 WASHERSpacer DIESEL |
09169-06065-000 |
from US $1.76 |
||
|
17
|
17
08316-20063-000
Nut
DIESEL |
08316-20063-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-2006A-000 NUTDIESEL |
08316-2006A-000 |
from US $0.76 |
||
|
18
|
18
35365-84CA0-000
Bracket, oil tank
T. DIESEL |
35365-84CA0-000 |
— | ||
|
19
|
19
01550-06123-000
Bolt
DIESEL |
01550-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0612B-000 BoltBolt, clamp DIESEL |
01550-0612B-000 |
from US $0.76 |
||
|
19
|
19
01550-0612A-000 BoltDIESEL |
01550-0612A-000 |
from US $0.76 |
||
|
20
|
20
08316-20063-000
Nut
DIESEL |
08316-20063-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-2006A-000 NUTDIESEL |
08316-2006A-000 |
from US $0.76 |
||
|
21
|
21
49130-70AA0-000 BRACKET,TENSION PULLEYGASOLINE |
49130-70AA0-000 |
US $132.85 |
||
|
22
|
22
49160-70AA0-000 PULLEY ASSY,BELT TENSIONGASOLINE |
49160-70AA0-000 |
from US $83.97 |
||
|
23
|
23
49161-60B10-000 BOLT,BELT TENSION PULLEYGASOLINE |
49161-60B10-000 |
from US $7.84 |
||
|
24
|
24
49163-70AA0-000 BOLT,TENSION ADJUSTGASOLINE |
49163-70AA0-000 |
from US $3.06 |
||
|
25
|
25
01550-08503-000
Bolt
GASOLINE |
01550-08503-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-0850B-000 BoltGASOLINE |
01550-0850B-000 |
from US $1.22 |
||
|
26
|
26
01550-10303-000
Bolt
GASOLINE |
01550-10303-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-1030B-000 BoltBolt, axle housing rear GASOLINE |
01550-1030B-000 |
from US $1.87 |
||
|
26
|
26
01550-1030A-000 BoltGASOLINE |
01550-1030A-000 |
from US $1.12 |
||
|
27
|
27
08316-10103-000
Nut
GASOLINE |
08316-10103-000 |
— | ||
| replacement | |||||
|
27
|
27
08316-1010B-000 NUTGASOLINE |
08316-1010B-000 |
from US $0.80 |
||
|
28
|
28
49210-70A50-000
Hose, pressure
GASOLINE |
49210-70A50-000 |
— | ||
|
28
|
28
49230-79E01-000 HOSE,PRESSURET. DIESEL |
49230-79E01-000 |
US $102.65 |
||
|
28
|
28
49230-84CA0-000
Hose, pressure
DIESEL E. III |
49230-84CA0-000 |
— | ||
|
29
|
29
49251-85C00-000
Bolt
|
49251-85C00-000 |
— | ||
|
30
|
30
09168-14009-000
Washer
14X18X1.5 |
09168-14009-000 |
— | ||
| replacements | |||||
|
30
|
30
09168-14014-000 GASKET(14X18X1.5)14X18X1.5 |
09168-14014-000 |
from US $1.10 |
||
|
30
|
30
09168-14011-000 GASKET(14X20X1.5)14X18X1.5 |
09168-14011-000 |
from US $0.72 |
||
|
31
|
31
49221-70A50-000
Hose, return
GASOLINE |
49221-70A50-000 |
— | ||
|
31
|
31
49211-86CC1-000
Hose, return
DIESEL |
49211-86CC1-000 |
— | ||
|
32
|
32
49215-70A50-000
CLAMP,PRESSURE HOSE
|
49215-70A50-000 |
— | ||
|
33
|
33
51911-85C00-000
Clamp, return hose
|
51911-85C00-000 |
— | ||
|
34
|
34
49214-70A50-000
Hose, suction
GASOLINE |
49214-70A50-000 |
— | ||
|
34
|
34
49214-84CB0-000
Hose, suction
T. DIESEL |
49214-84CB0-000 |
— | ||
|
34
|
34
49214-84CC0-000
Hose, suction
DIESEL E. III |
49214-84CC0-000 |
— | ||
|
35
|
35
09400-85C00-000
Clamp
GASOLINE |
09400-85C00-000 |
— | ||
|
35
|
35
08002-86CA0-000
Clamp, suction hose
DIESEL |
08002-86CA0-000 |
— | ||
|
36
|
36
09401-A2040-200
Clip
GASOLINE |
09401-A2040-200 |
— | ||
|
36
|
36
08002-86CA0-000
Clamp, suction hose
DIESEL |
08002-86CA0-000 |
— | ||
|
37
|
37
49252-86CA0-000
Bolt
GASOLINE |
49252-86CA0-000 |
— | ||
|
38
|
38
09168-16002-000 GASKET(16X22X2)16X22X2 |
09168-16002-000 |
from US $1.31 |
||
|
39
|
39
09408-00117-000 CLAMPGASOLINE |
09408-00117-000 |
from US $1.26 |
||
|
40
|
40
09408-00157-000 CLAMPGASOLINE |
09408-00157-000 |
US $20.20 |
||
|
41
|
41
17521-85C11-000
Belt, power steering
GASOLINE |
17521-85C11-000 |
— | ||
|
41
|
41
17521-84CA0-000
Belt, power steering
DIESEL |
17521-84CA0-000 |
— | ||
|
42
|
42
45070-86CA0-000
Pin
DIESEL |
45070-86CA0-000 |
— | ||
|
43
|
43
00068-86CA0-000
Screw
DIESEL |
00068-86CA0-000 |
— | ||
|
44
|
44
00059-86CA0-000
Axle screw
DIESEL |
00059-86CA0-000 |
— | ||
|
45
|
45
07130-08302-000
Screw
DIESEL |
07130-08302-000 |
— | ||
|
46
|
46
49140-65D00-000
TANK ASSY POWER STEERING OIL
DIESEL E. III |
49140-65D00-000 |
— | ||
| replacement | |||||
|
46
|
46
49140-54J01-000 TANK ASSY,POWER STRG OILDIESEL E. III |
49140-54J01-000 |
from US $70.07 |
||
|
47
|
47
49142-65D00-000 CAP,PS OIL TANKDIESEL E. III |
49142-65D00-000 |
from US $6.56 |
||
|
48
|
48
35399-84CA0-000
Bracket
DIESEL E. III |
35399-84CA0-000 |
— | ||
