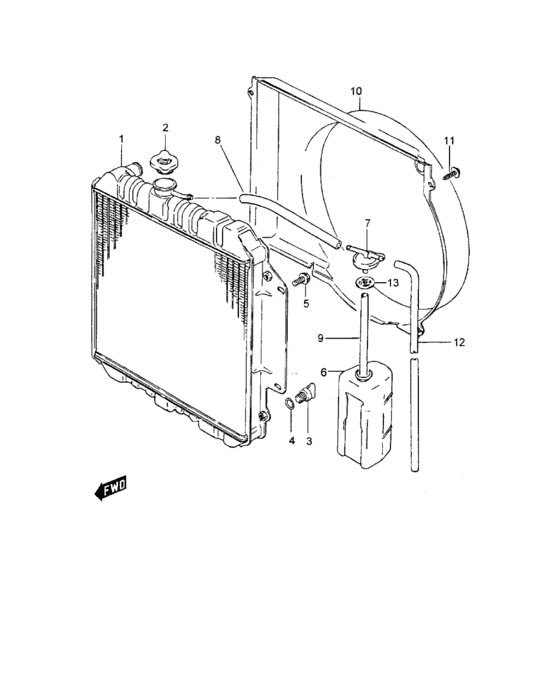

Radiator (GASOLINE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-84C00-000
Radiator assy
|
17700-84C00-000 |
— | ||
|
2
|
2
17920-85C00-000
Radiator plug
|
17920-85C00-000 |
— | ||
|
3
|
3
00000-A0071-500
Drain plug
|
00000-A0071-500 |
— | ||
|
4
|
4
00000-A0001-500
Anneau torique
|
00000-A0001-500 |
— | ||
|
5
|
5
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
17931-80001-000 TANK,WATER RESERVE |
17931-80001-000 |
from US $14.81 |
||
|
7
|
7
17932-82001-000 CAP,WATER RESERVOIR TANKCap, water reservoir tank |
17932-82001-000 |
from US $9.12 |
||
|
8
|
8
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) |
09352-70121-600 |
from US $5.93 |
||
|
9
|
9
09352-70111-300
ホース,7X11X300
L: 170 |
09352-70111-300 |
— | ||
| replacement | |||||
|
9
|
9
09352-70111-600 HOSE(7X11X600)L: 170 |
09352-70111-600 |
from US $6.84 |
||
|
10
|
10
17761-A8300-000
Couvercle radiateur
|
17761-A8300-000 |
— | ||
|
11
|
11
59932-85C00-000
Clip
|
59932-85C00-000 |
— | ||
|
12
|
12
17934-80C00-000 HOSE,WATER RESERVE TANK CAP |
17934-80C00-000 |
from US $8.46 |
||
|
13
|
13
17933-82002-000 RUBBER,WTR RSV TANK CAP |
17933-82002-000 |
from US $2.13 |
||
