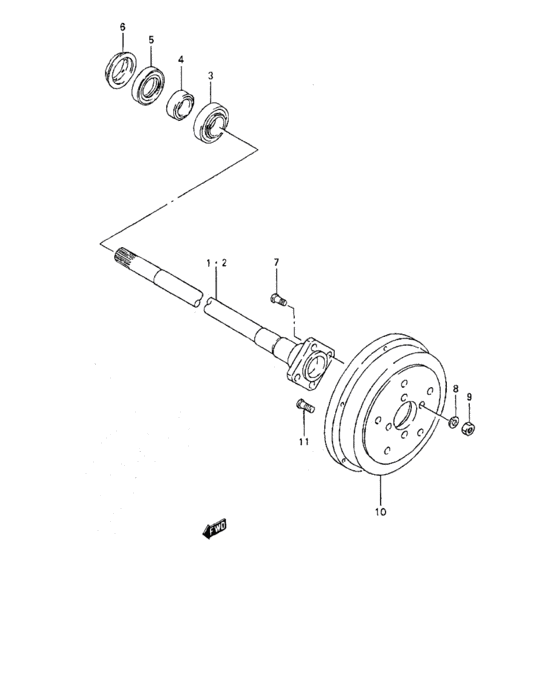

Rear axle (REAR AXLE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44210-83301-000 Shaft, rear axle rh |
44210-83301-000 |
US $153.05 |
||
| replacement | |||||
|
1
|
1
44210-70AV0-000 SHAFT ASSY,REAR AXLE,R |
44210-70AV0-000 |
from US $153.05 |
||
|
2
|
2
44220-83301-000 Shaft, rear axle lh |
44220-83301-000 |
US $204.89 |
||
| replacement | |||||
|
2
|
2
44220-70AV0-000 SHAFT ASSY,REAR AXLE,L |
44220-70AV0-000 |
from US $202.40 |
||
|
3
|
3
09269-35009-000 BEARING(35X72X22) |
09269-35009-000 |
from US $40 |
||
|
4
|
4
43485-73000-000 RING,RR WHEEL BRG RETAINER |
43485-73000-000 |
from US $8.51 |
||
|
5
|
5
09283-48007-000 SEAL,OIL(48X62X9)48X62X9 |
09283-48007-000 |
from US $3.65 |
||
|
6
|
6
43588-73000-000 PROTECTOR,OIL SEAL |
43588-73000-000 |
from US $1.52 |
||
|
7
|
7
09119-12008-000
ボルト,12X38
|
09119-12008-000 |
— | ||
| replacement | |||||
|
7
|
7
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
from US $1.13 |
||
|
8
|
8
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
9
|
9
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
10
|
10
43511-84CA0-000
Drum, rear brake
|
43511-84CA0-000 |
— | ||
|
11
|
11
44231-85C00-000
Bolt
|
44231-85C00-000 |
— | ||
