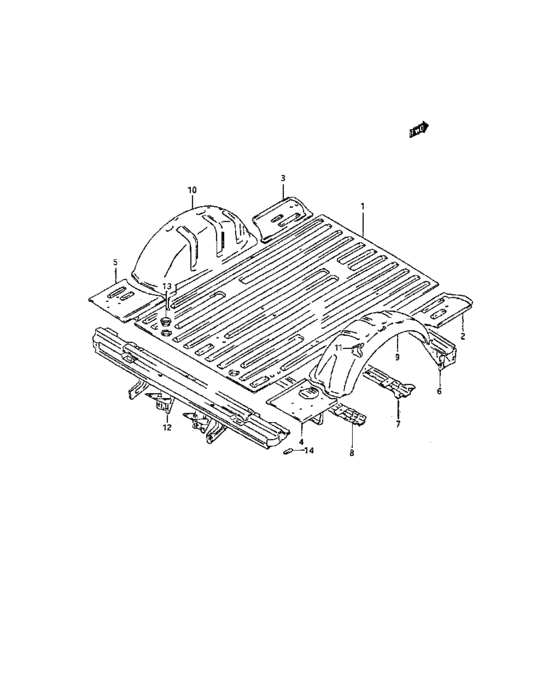

Rear body (LONG) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62111-84C10-000
Panel, rear floor
|
62111-84C10-000 |
— | ||
|
2
|
2
62121-84C20-000
Panel, side front rh
|
62121-84C20-000 |
— | ||
|
3
|
3
62131-84C10-000
Panel, side front lh
|
62131-84C10-000 |
— | ||
|
4
|
4
62140-A8329-000
Panel, side rear rh
|
62140-A8329-000 |
— | ||
|
5
|
5
62150-83290-000 PANEL,FLOOR SIDE REAR,L |
62150-83290-000 |
US $36.43 |
||
|
6
|
6
62160-84C20-000
Reinf, rear floor no.1
|
62160-84C20-000 |
— | ||
|
7
|
7
62120-84C30-000
Reinf, rear floor no.2
|
62120-84C30-000 |
— | ||
|
8
|
8
62180-83211-000
REINFORCEMENT,RR FL NO.3
|
62180-83211-000 |
— | ||
|
9
|
9
62210-84C00-000
Panel, wheel housing rh
|
62210-84C00-000 |
— | ||
|
10
|
10
62310-84C00-000
Panel, wheel housing lh
|
62310-84C00-000 |
— | ||
|
11
|
11
62212-80080-000 BRACKET,INLET PIPE PROTECTOR |
62212-80080-000 |
US $8.98 |
||
|
12
|
12
62500-80310-000
MEMBER ASSY,RR FL TAIL
|
62500-80310-000 |
— | ||
|
13
|
13
65971-77E00-000
Cap, rear floor drain
|
65971-77E00-000 |
— | ||
| replacement | |||||
|
13
|
13
65971-77E10-000 CAP,OD:30 |
65971-77E10-000 |
from US $2.23 |
||
|
14
|
14
72876-80000-000
SEAL,TAIL MEMBER CORNER
|
72876-80000-000 |
— | ||
