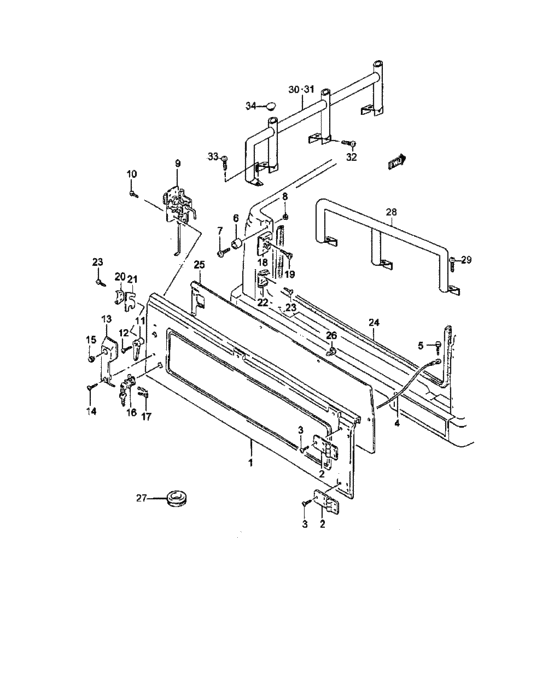

Rear gate (Q) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67700-82C10-000
PANEL ASSY,REAR GATE
CANVAS TOP |
67700-82C10-000 |
— | ||
| replacement | |||||
|
1
|
1
67700-50C00-000
PANEL ASSY,REAR GATE
CANVAS TOP |
67700-50C00-000 |
— | ||
|
1
|
1
67700-84C00-000
Panel assy, rear gate
HARD TOP |
67700-84C00-000 |
— | ||
|
1
|
1
67700-84C20-000
Panel assy, rear gate
PICK UP |
67700-84C20-000 |
— | ||
|
2
|
2
67790-80031-000
Charniere porte
|
67790-80031-000 |
— | ||
| replacement | |||||
|
2
|
2
67790-80033-000 HINGE,RR GATE |
67790-80033-000 |
from US $16.90 |
||
|
3
|
3
09125-08002-000
スクリュ,8X20
|
09125-08002-000 |
— | ||
| replacement | |||||
|
3
|
3
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
from US $0.97 |
||
|
4
|
4
72850-80002-000 CABLE,RR GATE |
72850-80002-000 |
from US $3.51 |
||
|
5
|
5
09100-06075-000 BOLT(6X14)Bolt, carrier (6x14) 6X14 |
09100-06075-000 |
from US $0.68 |
||
|
6
|
6
72875-80001-000
Appui hayon
|
72875-80001-000 |
— | ||
| replacements | |||||
|
6
|
6
09320-06014-000 CUSHION |
09320-06014-000 |
from US $1.53 |
||
|
6
|
6
72875-80003-000 CUSHION,REAR GATE |
72875-80003-000 |
US $2.88 |
||
|
7
|
7
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
7
|
7
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.96 |
||
|
7
|
7
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
8
|
8
08313-B1106-300
Nut
|
08313-B1106-300 |
— | ||
|
9
|
9
82550-80082-000 LOCK ASSY,RR GATE SIDE,L |
82550-80082-000 |
US $58.39 |
||
|
10
|
10
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $1.12 |
||
|
11
|
11
82591-80060-000 HANDLE,REAR GATE LOCK |
82591-80060-000 |
US $3.83 |
||
|
12
|
12
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
12
|
12
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
13
|
13
82592-80060-000 COVER,RR GATE LOCK HANDLE |
82592-80060-000 |
US $4.68 |
||
|
14
|
14
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
14
|
14
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
15
|
15
09250-14006-000 PLUG(OD:17)Cap, oil level gauge hole |
09250-14006-000 |
from US $0.34 |
||
|
16
|
16
82200-80851-000 CYLINDER,DR LOCK |
82200-80851-000 |
from US $29.59 |
||
|
17
|
17
89345-60B00-000 CLIP,FUEL FILLER LID KEY LOCK |
89345-60B00-000 |
from US $1.71 |
||
|
18
|
18
77810-60021-000 STRIKER,RR GATE LATCH |
77810-60021-000 |
from US $9.43 |
||
|
19
|
19
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
19
|
19
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
19
|
19
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
|
20
|
20
78251-68201-000 MALE,BACK DR ST0P |
78251-68201-000 |
from US $6.55 |
||
|
21
|
21
77891-63100-000 SPACER |
77891-63100-000 |
US $5.60 |
||
|
22
|
22
78261-68201-000 MALE,BACK DR ST0P |
78261-68201-000 |
from US $4.23 |
||
|
23
|
23
02112-36163-000
Screw
|
02112-36163-000 |
— | ||
| replacements | |||||
|
23
|
23
02112-3616B-000 SCREW |
02112-3616B-000 |
from US $0.80 |
||
|
23
|
23
02112-3616A-000 SCREW |
02112-3616A-000 |
from US $3.11 |
||
|
24
|
24
84681-B8000-100
Weatherstrip, gate
L:1800 |
84681-B8000-100 |
— | ||
|
25
|
25
76140-C8300-000
Trim, rear door
|
76140-C8300-000 |
— | ||
|
25
|
25
52248-00000-000
Trim, rear door
HARD TOP |
52248-00000-000 |
— | ||
|
26
|
26
09409-C1230-100
Clip, trim upper
|
09409-C1230-100 |
— | ||
|
27
|
27
51495-00000-000
Gromet
|
51495-00000-000 |
— | ||
|
28
|
28
72890-84C00-000
Pipe assy, guard rear
PICK UP |
72890-84C00-000 |
— | ||
|
29
|
29
02142-06123-000
Screw
PICK UP |
02142-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
02142-0612B-000 SCREWPICK UP |
02142-0612B-000 |
from US $0.76 |
||
|
29
|
29
02142-0612A-000 SCREWPICK UP |
02142-0612A-000 |
from US $0.80 |
||
|
30
|
30
87850-84C00-000
Pipe assy, guard side lh
PICK UP |
87850-84C00-000 |
— | ||
|
31
|
31
87950-84C00-000
Pipe assy, guard side lh
PICK UP |
87950-84C00-000 |
— | ||
|
32
|
32
02142-06123-000
Screw
PICK UP |
02142-06123-000 |
— | ||
| replacements | |||||
|
32
|
32
02142-0612B-000 SCREWPICK UP |
02142-0612B-000 |
from US $0.76 |
||
|
32
|
32
02142-0612A-000 SCREWPICK UP |
02142-0612A-000 |
from US $0.80 |
||
|
33
|
33
09125-84C00-000
Screw
PICK UP |
09125-84C00-000 |
— | ||
|
34
|
34
51805-84C00-000
Plug
PICK UP |
51805-84C00-000 |
— | ||
