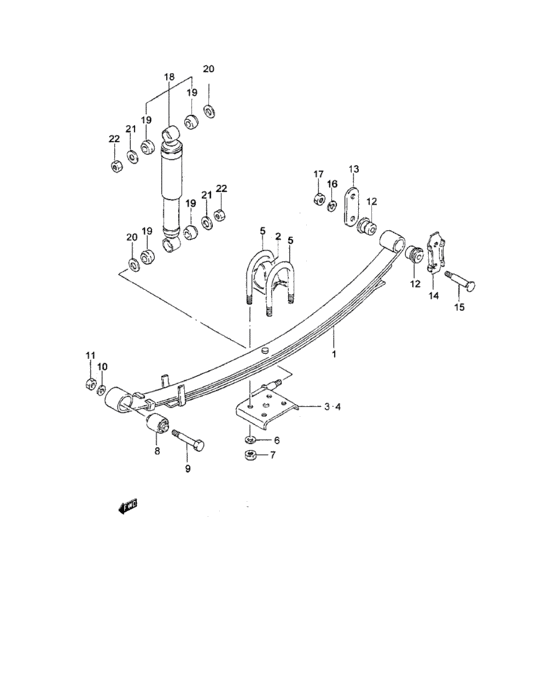

Rear suspension (REAR SUSPENSION) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41310-84C00-000
Spring assy, rear
|
41310-84C00-000 |
— | ||
|
2
|
2
42150-84C00-000
Bumper, spring
|
42150-84C00-000 |
— | ||
|
3
|
3
41430-83000-000
Plaque ressort cd
|
41430-83000-000 |
— | ||
| replacement | |||||
|
3
|
3
41240-83001-000 SEAT,FR SPRING,L |
41240-83001-000 |
from US $7.85 |
||
|
4
|
4
41440-83000-000 SEAT,REAR SPRING,L |
41440-83000-000 |
from US $9.56 |
||
|
5
|
5
41411-84C00-000
U bolt
|
41411-84C00-000 |
— | ||
|
6
|
6
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
7
|
7
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
8
|
8
09319-12023-000 BUSH |
09319-12023-000 |
from US $10.88 |
||
|
9
|
9
09103-12048-000 BOLT(12X90)12X92 |
09103-12048-000 |
from US $6.17 |
||
|
10
|
10
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
11
|
11
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
11
|
11
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
12
|
12
09305-13002-000 BUSH |
09305-13002-000 |
from US $1.64 |
||
|
13
|
13
41461-84CA0-000
Plate, shackle inner
GASOLINE |
41461-84CA0-000 |
— | ||
|
13
|
13
41461-84CB0-000
Plate, shackle inner
DIESEL |
41461-84CB0-000 |
— | ||
|
14
|
14
41462-84CA0-000
Plate, shackle outer
GASOLINE |
41462-84CA0-000 |
— | ||
|
15
|
15
41463-82000-000 PIN,SHACKLE |
41463-82000-000 |
from US $4.37 |
||
|
16
|
16
08321-A3110-300
Washer plain
|
08321-A3110-300 |
— | ||
|
17
|
17
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
17
|
17
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
18
|
18
41700-84C00-000
Absorber, rear shock
GASOLINE |
41700-84C00-000 |
— | ||
|
18
|
18
41700-84CA0-000
Absorber, rear shock
DIESEL |
41700-84CA0-000 |
— | ||
|
19
|
19
41781-A8000-000
Bush
|
41781-A8000-000 |
— | ||
|
20
|
20
08322-01163-000
Washer
|
08322-01163-000 |
— | ||
| replacement | |||||
|
20
|
20
08322-0116A-000 WASHER |
08322-0116A-000 |
from US $0.80 |
||
|
21
|
21
09160-12073-000 WASHER(12.5X32X2.3)Washer (12.5x32x2.3) 12.5X32X2.3 |
09160-12073-000 |
from US $0.79 |
||
|
22
|
22
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
22
|
22
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
