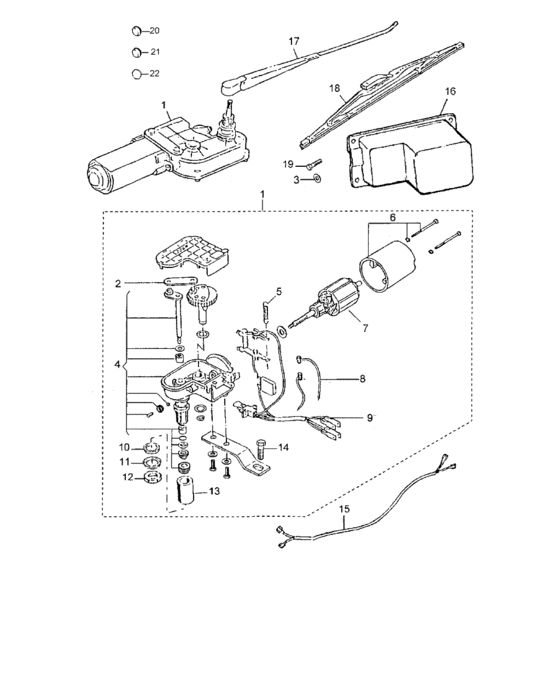

Rear window wiper (V= W / REAR WIPER) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35247-00000-000
Lamp assy, room
|
35247-00000-000 |
— | ||
|
2
|
2
00000-A0034-200
Conducted conn.rod
|
00000-A0034-200 |
— | ||
|
4
|
4
00000-A0034-400
Boitier
|
00000-A0034-400 |
— | ||
|
5
|
5
00000-A0034-500
Spring
|
00000-A0034-500 |
— | ||
|
6
|
6
00000-A0034-600
Cover
|
00000-A0034-600 |
— | ||
|
7
|
7
00000-A0034-700
Tnduit
|
00000-A0034-700 |
— | ||
|
8
|
8
00000-A0034-800
Brush
|
00000-A0034-800 |
— | ||
|
9
|
9
00000-A0034-900
Bracket, brush
|
00000-A0034-900 |
— | ||
|
10
|
10
00000-A0035-000
Washer
|
00000-A0035-000 |
— | ||
|
11
|
11
00000-A0035-100
Cassolete
|
00000-A0035-100 |
— | ||
|
12
|
12
00000-A0035-200
Nut
|
00000-A0035-200 |
— | ||
|
13
|
13
00000-A0035-300
Bush
|
00000-A0035-300 |
— | ||
|
14
|
14
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0408A-000 SCREW |
03141-0408A-000 |
from US $0.79 |
||
|
15
|
15
35231-00000-000
Wiring,engine
|
35231-00000-000 |
— | ||
|
16
|
16
35021-00000-000
Cover, engine
|
35021-00000-000 |
— | ||
|
17
|
17
35018-00000-000
Brass voiture v
|
35018-00000-000 |
— | ||
|
18
|
18
35103-00000-000
Brush
|
35103-00000-000 |
— | ||
|
19
|
19
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
19
|
19
03141-0408A-000 SCREW |
03141-0408A-000 |
from US $0.79 |
||
|
20
|
20
09250-14003-000 CAP(OD:18)N/WIPER REAR |
09250-14003-000 |
US $2.08 |
||
|
21
|
21
51806-00000-000
Cap, hole wiper motor rr.
N/WIPER REAR |
51806-00000-000 |
— | ||
|
22
|
22
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/WIPER REAR |
84761-50X50-000 |
from US $6.72 |
||
