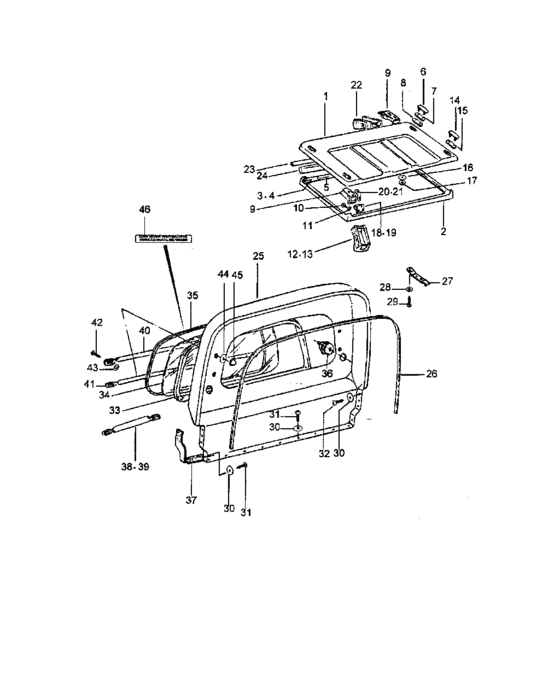

Resin top (PICK UP) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50971-00000-000
Front Roof (White)
|
50971-00000-000 |
— | ||
|
2
|
2
78339-00001-000
Rubber, front roof
|
78339-00001-000 |
— | ||
|
3
|
3
50065-00000-000
Sealing profile, front roof
|
50065-00000-000 |
— | ||
|
4
|
4
50064-00000-000
Sealing molding, drip
|
50064-00000-000 |
— | ||
|
5
|
5
50067-00000-000
Rear rubber, front roof
|
50067-00000-000 |
— | ||
|
6
|
6
78325-00000-000
Outer plate assy, roof
|
78325-00000-000 |
— | ||
|
7
|
7
78328-00000-000
Suppement
|
78328-00000-000 |
— | ||
|
8
|
8
78329-00000-000
Gasket
|
78329-00000-000 |
— | ||
|
9
|
9
52659-00000-000
Quick lock
|
52659-00000-000 |
— | ||
|
10
|
10
02142-04103-000
Screw 4x10
|
02142-04103-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
11
|
11
08321-A3104-300
Grower whaser
|
08321-A3104-300 |
— | ||
|
12
|
12
78368-00001-000
Cover, quick lock lh
|
78368-00001-000 |
— | ||
|
13
|
13
78369-00001-000
Cover, quick lock rh
|
78369-00001-000 |
— | ||
|
14
|
14
78343-00000-000
Front fix. plate assy, roof
|
78343-00000-000 |
— | ||
|
15
|
15
78350-00000-000
Gasket
|
78350-00000-000 |
— | ||
|
16
|
16
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
16
|
16
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $1.12 |
||
|
17
|
17
02040-84C00-000
Autobraking nut
|
02040-84C00-000 |
— | ||
|
18
|
18
78335-00000-000
Windscreen hook, l/h
|
78335-00000-000 |
— | ||
|
19
|
19
78336-00000-000
Windscreen hook, r/h
|
78336-00000-000 |
— | ||
|
20
|
20
51502-00000-000
Front corner plate lh
|
51502-00000-000 |
— | ||
|
21
|
21
51501-00000-000
Front corner plate rh
|
51501-00000-000 |
— | ||
|
22
|
22
78367-84C50-000
Cover, quick lock
|
78367-84C50-000 |
— | ||
|
23
|
23
52801-00000-000
Protector profile, antidump.
|
52801-00000-000 |
— | ||
|
24
|
24
84611-84C00-000
Protector rubber
|
84611-84C00-000 |
— | ||
|
25
|
25
52654-84C00-000
Panel assy, rear driver`s cab.
|
52654-84C00-000 |
— | ||
|
26
|
26
84671-84C01-000
Weatherstrip, roll bar rear
|
84671-84C01-000 |
— | ||
|
27
|
27
51433-84C00-000
Hook
|
51433-84C00-000 |
— | ||
|
28
|
28
09160-84C00-000
Washer
|
09160-84C00-000 |
— | ||
|
29
|
29
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
29
|
29
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
30
|
30
09160-84C00-000
Washer
|
09160-84C00-000 |
— | ||
|
31
|
31
02142-06203-000
Screw
|
02142-06203-000 |
— | ||
| replacement | |||||
|
31
|
31
02142-0620A-000 SCREW |
02142-0620A-000 |
from US $0.68 |
||
|
32
|
32
03111-06253-000
Screw
|
03111-06253-000 |
— | ||
| replacement | |||||
|
32
|
32
03111-0625A-000 SCREW |
03111-0625A-000 |
from US $0.80 |
||
|
33
|
33
51669-84C00-000
Weatherstrip, rear window
|
51669-84C00-000 |
— | ||
|
34
|
34
84571-84C40-000
Glass, rear window
|
84571-84C40-000 |
— | ||
|
35
|
35
51670-84C00-000
Sealing strip window
|
51670-84C00-000 |
— | ||
|
36
|
36
78620-84C00-000
Grommet, strain
|
78620-84C00-000 |
— | ||
|
37
|
37
51670-84C10-000
Sealing strip side and under
|
51670-84C10-000 |
— | ||
|
38
|
38
78611-84C00-000
Strain, roll bar side rh
|
78611-84C00-000 |
— | ||
|
39
|
39
78651-84C00-000
Strain, roll bar side lh
|
78651-84C00-000 |
— | ||
|
40
|
40
51450-84C00-000
Bar window guard upper
|
51450-84C00-000 |
— | ||
|
41
|
41
51451-84C00-000
Bar window guard under
|
51451-84C00-000 |
— | ||
|
42
|
42
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
42
|
42
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
42
|
42
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
43
|
43
02028-84C00-000
Joint, washer
|
02028-84C00-000 |
— | ||
|
44
|
44
09160-84C00-000
Washer
|
09160-84C00-000 |
— | ||
|
45
|
45
08313-B1106-800
Ecrow
|
08313-B1106-800 |
— | ||
|
46
|
46
77814-84C00-000
Anagram,max load permisible
|
77814-84C00-000 |
— | ||
