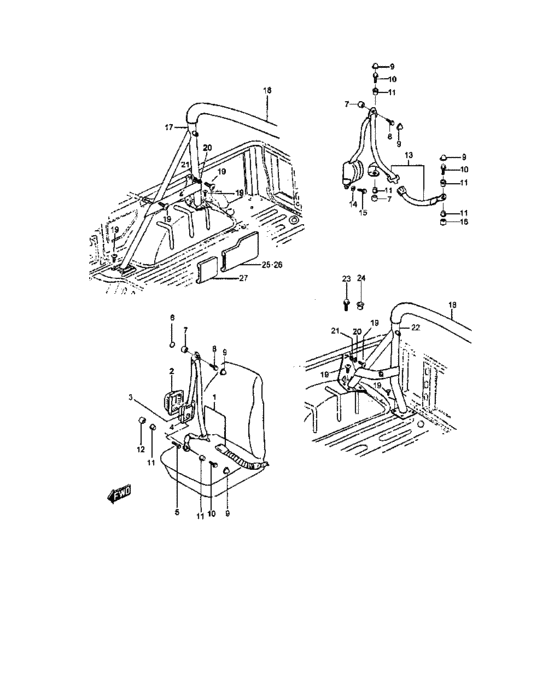

Seat belts (SEAT BELTS) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-84C01-000
Belt assy, front seat
|
84901-84C01-000 |
— | ||
|
2
|
2
84924-80130-000 COVER,FR SEAT BELT |
84924-80130-000 |
US $11.20 |
||
|
3
|
3
84901-E8013-300
Tougue stoper, front seat belt
|
84901-E8013-300 |
— | ||
|
4
|
4
84901-B8013-300
Elr as. cover
|
84901-B8013-300 |
— | ||
|
5
|
5
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
5
|
5
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
6
|
6
50029-00000-000
Seal, spare tire bracket hole
|
50029-00000-000 |
— | ||
|
7
|
7
84956-85C00-000
Bush
|
84956-85C00-000 |
— | ||
|
8
|
8
84951-85C00-000
Bolt
|
84951-85C00-000 |
— | ||
|
9
|
9
84962-85C00-000
Plug
|
84962-85C00-000 |
— | ||
|
10
|
10
84951-85C10-000
Bolt
|
84951-85C10-000 |
— | ||
|
11
|
11
84933-85C00-000
Spacer
|
84933-85C00-000 |
— | ||
|
12
|
12
84956-85C30-000
Bush
|
84956-85C30-000 |
— | ||
|
13
|
13
84904-84C01-000
Belt assy, rear seat
|
84904-84C01-000 |
— | ||
|
14
|
14
02014-00000-000
Washer
|
02014-00000-000 |
— | ||
|
15
|
15
84951-84C00-000
Bolt
|
84951-84C00-000 |
— | ||
|
16
|
16
84956-84C00-000
Bush
|
84956-84C00-000 |
— | ||
|
17
|
17
87850-84C10-000
Rear stay ,seat belt bracket
LONG |
87850-84C10-000 |
— | ||
|
18
|
18
78681-84C10-000
Protector
LONG |
78681-84C10-000 |
— | ||
|
18
|
18
78681-84C20-000
Protector
SHORT |
78681-84C20-000 |
— | ||
|
19
|
19
01500-08253-000
Bolt
LONG |
01500-08253-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-0825A-000 BoltLONG |
01500-0825A-000 |
from US $0.91 |
||
|
20
|
20
08321-B3108-300
Washer
LONG |
08321-B3108-300 |
— | ||
|
21
|
21
08322-01083-000
WASHER
LONG |
08322-01083-000 |
— | ||
| replacements | |||||
|
21
|
21
08322-0108B-000 WASHERLONG |
08322-0108B-000 |
from US $0.96 |
||
|
21
|
21
08322-0108A-000 WASHERLONG |
08322-0108A-000 |
from US $0.96 |
||
|
22
|
22
87850-84C20-000
Rear stay ,seat belt bracket
SHORT |
87850-84C20-000 |
— | ||
|
23
|
23
00042-00000-000
Bolt
Belgium: N/REAR SEATS |
00042-00000-000 |
— | ||
|
24
|
24
50063-00000-000
Plug, rear belt assy
France: N/REAR SEATS |
50063-00000-000 |
— | ||
|
25
|
25
84956-84C10-000
Cover, elr dust r/h
|
84956-84C10-000 |
— | ||
|
26
|
26
84966-84C00-000
Cover, elr dust l/h
|
84966-84C00-000 |
— | ||
|
27
|
27
84956-84C20-000
Extension,cover elr dust
LONG |
84956-84C20-000 |
— | ||
