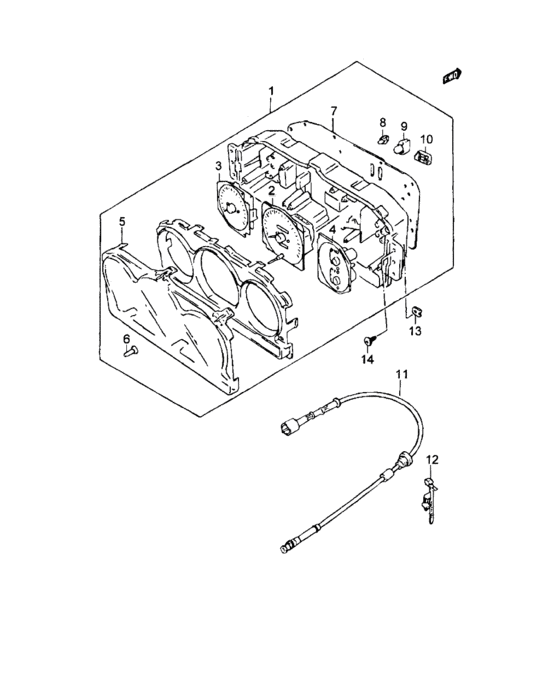

Speedometer assy gasoline (W/TACHOMETER GASOLINE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-81CG0-000
Speedometer assy,comb
|
34100-81CG0-000 |
— | ||
|
2
|
2
34120-81CG0-000
Body assy,speedometer
|
34120-81CG0-000 |
— | ||
|
3
|
3
34220-81CE0-000
BODY ASSY,TACHOMETER
|
34220-81CE0-000 |
— | ||
|
4
|
4
34320-81CA0-000 BODY ASSY,FUEL&TEMP METER |
34320-81CA0-000 |
US $181.06 |
||
|
5
|
5
34112-81CA0-000
GLASS,FR
|
34112-81CA0-000 |
— | ||
|
6
|
6
34145-80200-000 COVER,TRIP METER NOB |
34145-80200-000 |
from US $2.24 |
||
|
7
|
7
34152-81CG0-000
PLATE,PRINTED
|
34152-81CG0-000 |
— | ||
|
8
|
8
34171-70G10-000 BULB,14V 1.4W14 V, 1.4 W |
34171-70G10-000 |
from US $2.59 |
||
|
9
|
9
34171-81CA0-000 BULB,14V 3.4W14 V, 3.4 W |
34171-81CA0-000 |
US $7.25 |
||
|
10
|
10
34155-50E10-000 CIRCUIT,ABS WARNING |
34155-50E10-000 |
US $40.48 |
||
|
11
|
11
34910-80C31-000
Speedometer cable
|
34910-80C31-000 |
— | ||
| replacement | |||||
|
11
|
11
34910-80C60-000 CABLE ASSY,SPEEDOMETER |
34910-80C60-000 |
from US $31.41 |
||
|
12
|
12
09403-09403-000 CLAMP |
09403-09403-000 |
US $13.20 |
||
|
13
|
13
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
14
|
14
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
