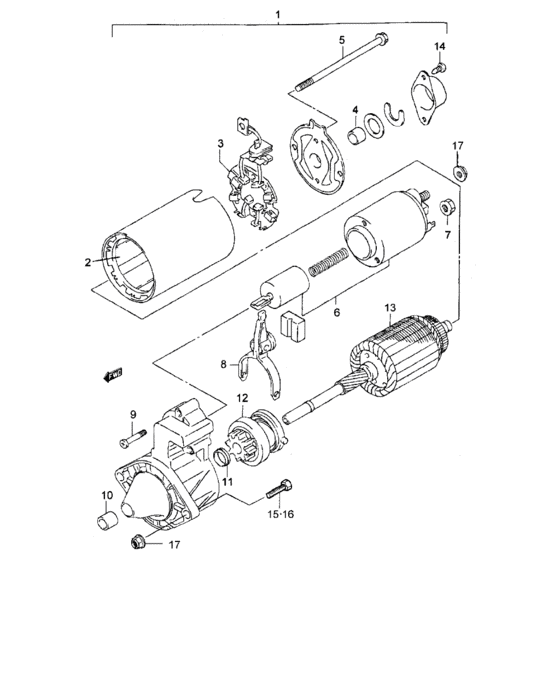

Starting motor (GASOLINE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-85C00-000
Motor assy, starting
|
31100-85C00-000 |
— | ||
|
2
|
2
31110-85C00-000
Yoke assy
|
31110-85C00-000 |
— | ||
|
3
|
3
31131-85C00-000
Brush assy
|
31131-85C00-000 |
— | ||
|
4
|
4
31172-85C00-000
Bush
|
31172-85C00-000 |
— | ||
|
5
|
5
31261-85C00-000
Screw
|
31261-85C00-000 |
— | ||
|
6
|
6
31220-85C00-000
Switch assy
|
31220-85C00-000 |
— | ||
|
7
|
7
08361-15083-000
Nut
|
08361-15083-000 |
— | ||
| replacement | |||||
|
7
|
7
08361-1508A-000 NUT |
08361-1508A-000 |
from US $3.20 |
||
|
8
|
8
31191-85C00-000
Lever
|
31191-85C00-000 |
— | ||
|
9
|
9
31136-85C00-000
Screw
|
31136-85C00-000 |
— | ||
|
10
|
10
31152-86CA0-000
Bush
|
31152-86CA0-000 |
— | ||
|
11
|
11
31152-86CA2-000
Bush
|
31152-86CA2-000 |
— | ||
|
12
|
12
31320-85C00-000
Clutch assy
|
31320-85C00-000 |
— | ||
|
13
|
13
31311-85C00-000
Armature
|
31311-85C00-000 |
— | ||
|
14
|
14
31136-85C10-000
Screw
|
31136-85C10-000 |
— | ||
|
15
|
15
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
15
|
15
01550-0830A-000 BoltBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.06 |
||
|
16
|
16
01550-08503-000
Bolt
|
01550-08503-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
17
|
17
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
17
|
17
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
