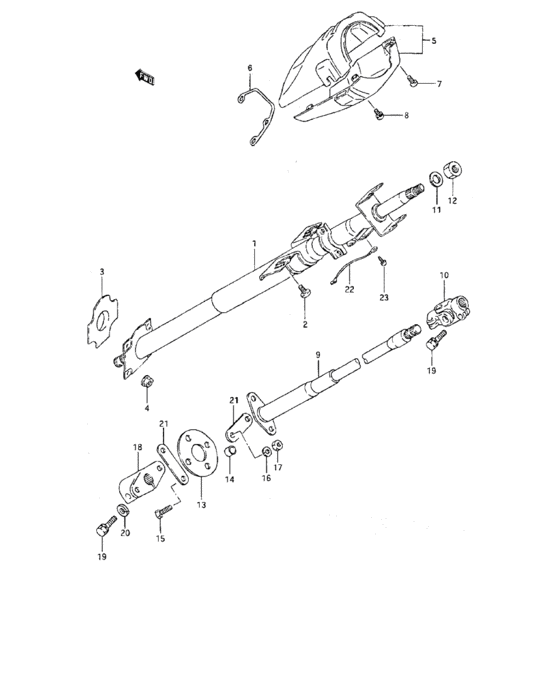

Steering shaft (STEERING SHAFT) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Europe
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-82C11-000 COLUMN ASSY,COLPS STRG |
48200-82C11-000 |
US $386.40 |
||
|
2
|
2
09100-08218-000
BOLT(8X30)
|
09100-08218-000 |
— | ||
|
3
|
3
48491-80000-000 SEAL,STEERING COLUMN |
48491-80000-000 |
from US $0.90 |
||
|
4
|
4
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
5
|
5
48400-82C70-T01
COVER ASSY,STRG COLUMN
|
48400-82C70-T01 |
— | ||
|
6
|
6
48441-82C20-000
SPACER,COMB SWITCH
|
48441-82C20-000 |
— | ||
|
7
|
7
03211-05163-000
Screw
|
03211-05163-000 |
— | ||
| replacement | |||||
|
7
|
7
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
8
|
8
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
from US $0.52 |
||
|
9
|
9
48220-80120-000 SHAFT,COLPS STRG LOWERN/POWER STEERING |
48220-80120-000 |
US $81.54 |
||
|
9
|
9
48220-82C20-000 SHAFT,COLPS STRG LOWERW/POWER STEERING |
48220-82C20-000 |
US $925.76 |
||
|
9
|
9
48220-84CA0-000
Shaft, steering lower
DIESEL E. III |
48220-84CA0-000 |
— | ||
|
10
|
10
48230-80100-000 JOINT,STEERING |
48230-80100-000 |
from US $62.30 |
||
|
11
|
11
08321-A3112-300
Washer
|
08321-A3112-300 |
— | ||
|
12
|
12
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
13
|
13
48251-52000-000 JOINT,RUBBER |
48251-52000-000 |
from US $5.44 |
||
|
14
|
14
09180-08007-000 SPACER(8.1X11X9)8.1X10.5X9 |
09180-08007-000 |
from US $0.74 |
||
|
15
|
15
01500-08253-000
Bolt
|
01500-08253-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
16
|
16
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
16
|
16
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
16
|
16
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.96 |
||
|
17
|
17
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
17
|
17
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
18
|
18
48270-80010-000
Frange,steering joint
|
48270-80010-000 |
— | ||
| replacement | |||||
|
18
|
18
48270-80011-000 FLANGE,STRG RUBBER JOINT |
48270-80011-000 |
US $20 |
||
|
19
|
19
09100-08218-000
BOLT(8X30)
|
09100-08218-000 |
— | ||
|
20
|
20
08321-B3108-300
Washer
|
08321-B3108-300 |
— | ||
|
21
|
21
48262-58001-000 PLATE,STRG RUBBER JOINT |
48262-58001-000 |
from US $1.60 |
||
|
22
|
22
48528-80000-000
Lead wire,horn earth
|
48528-80000-000 |
— | ||
|
23
|
23
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
23
|
23
03141-0408A-000 SCREW |
03141-0408A-000 |
from US $0.79 |
||
|
24
|
24
09160-08094-000 Washer 8x22x3Washer (8.2x20x1.6) |
09160-08094-000 |
US $1.47 |
||
| replacements | |||||
|
24
|
24
09160-08054-000 WASHER(8.5X20X1.6) |
09160-08054-000 |
from US $0.91 |
||
|
24
|
24
09160-08124-000 WASHER(8.5X20X1.6) |
09160-08124-000 |
from US $0.77 |
||
